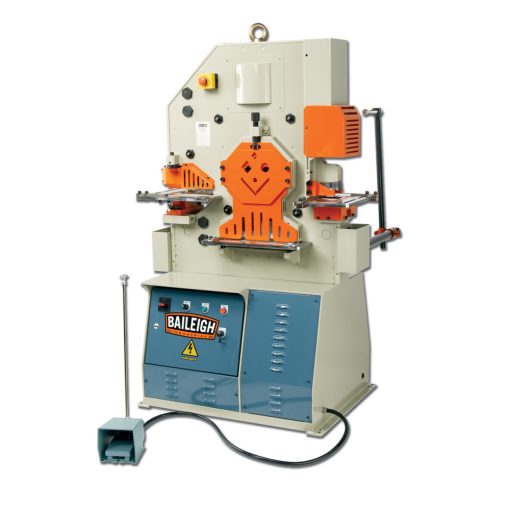

Baileigh SW-623 Ironworker Machine 62 Ton 5 Stations Hydraulic
This rugged hydraulic ironworker machine amps up the efficient, feature-loaded design of our SW-50 models with additional capacity for tougher applications. If your shop takes on punching, shearing, and notching jobs on a regular basis, let the SW-623 prove how hardworking a hydraulic ironworker can be over decades of use.
Features
Runs on 220V 3 Phase power

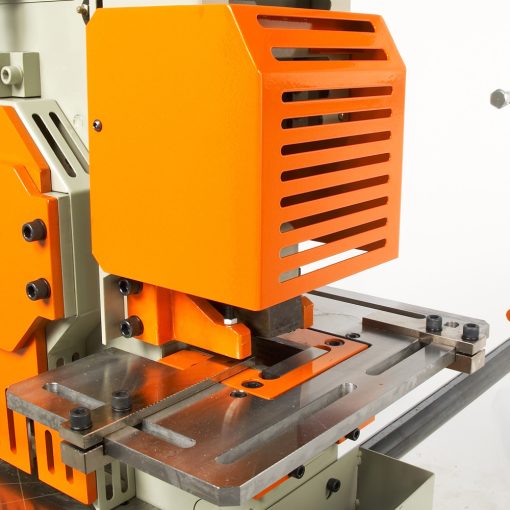

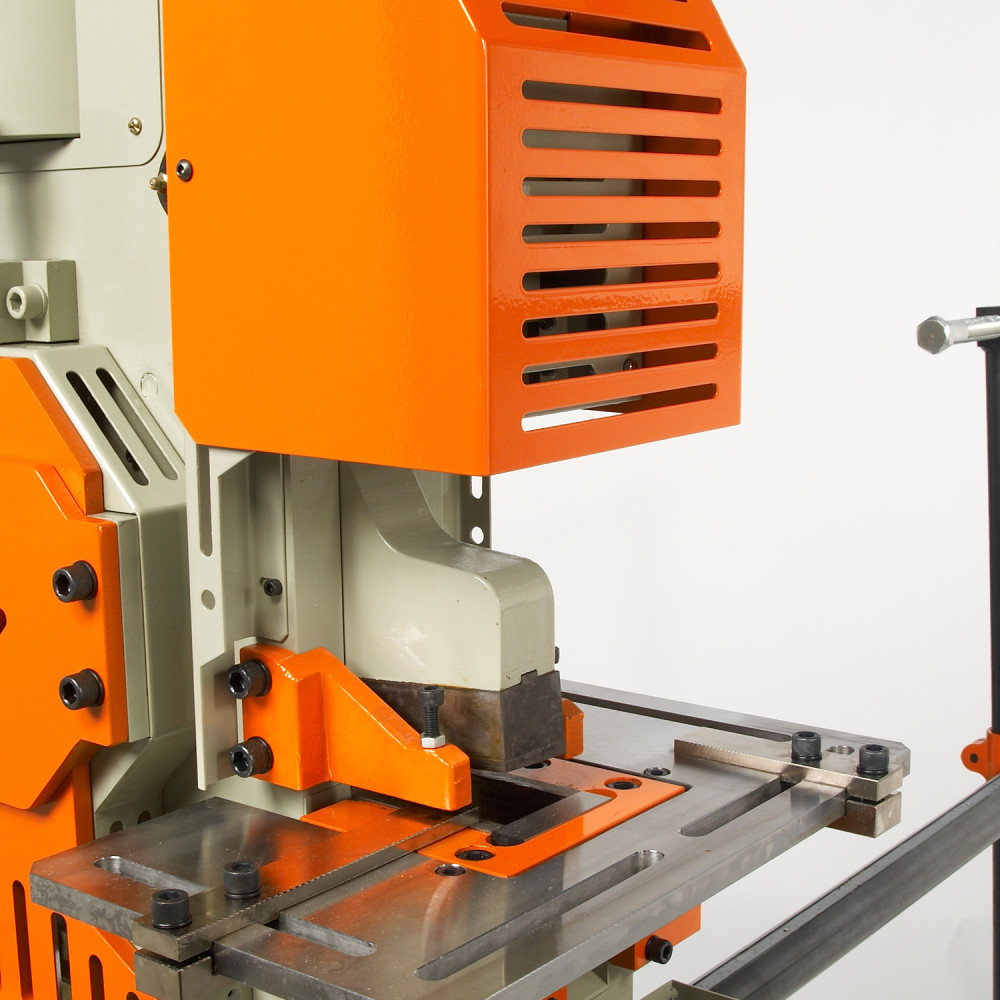

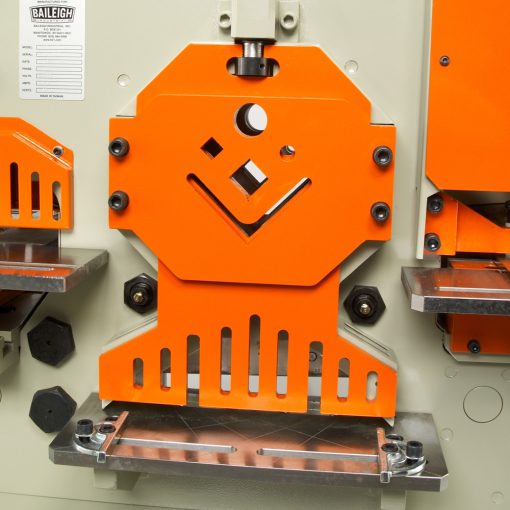

Delivers a robust 62 Ton of pressure at all 5 integrated stations – punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching
Pure vertical hydraulic movement at each station produces exceptionally clean cuts, notches, and holes in seconds

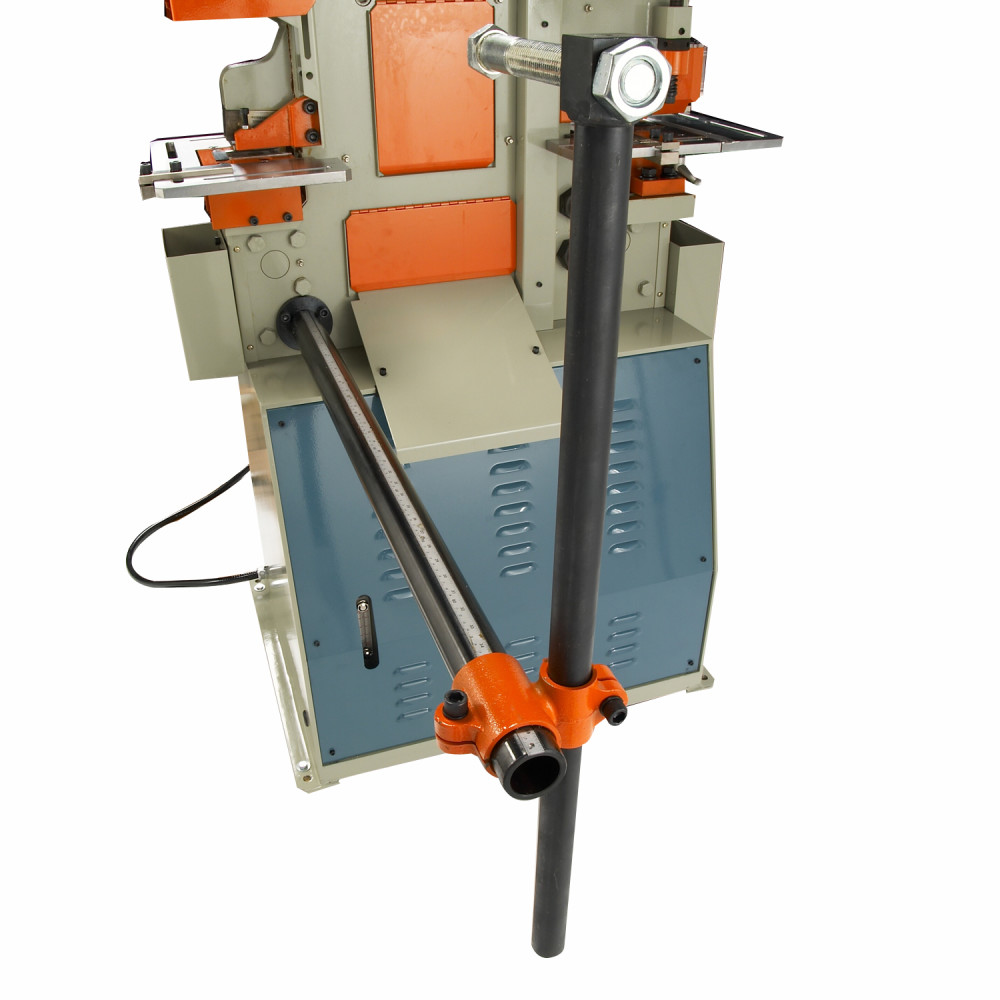

You can set the backgauge and material stops to save time and ensure repeatability for production runs

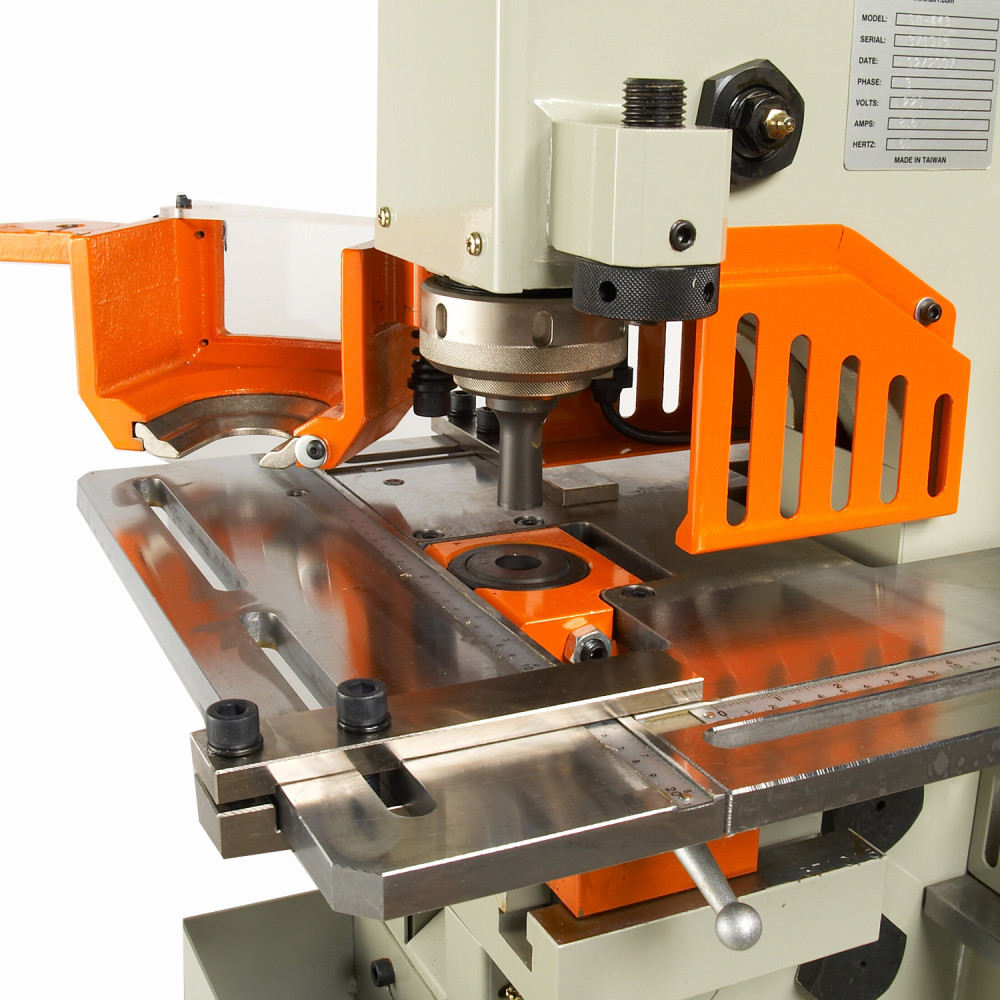

Large 2-piece worktables, equipped with handy meter guides, pull out from the machine to fit oversized or awkwardly shaped materials

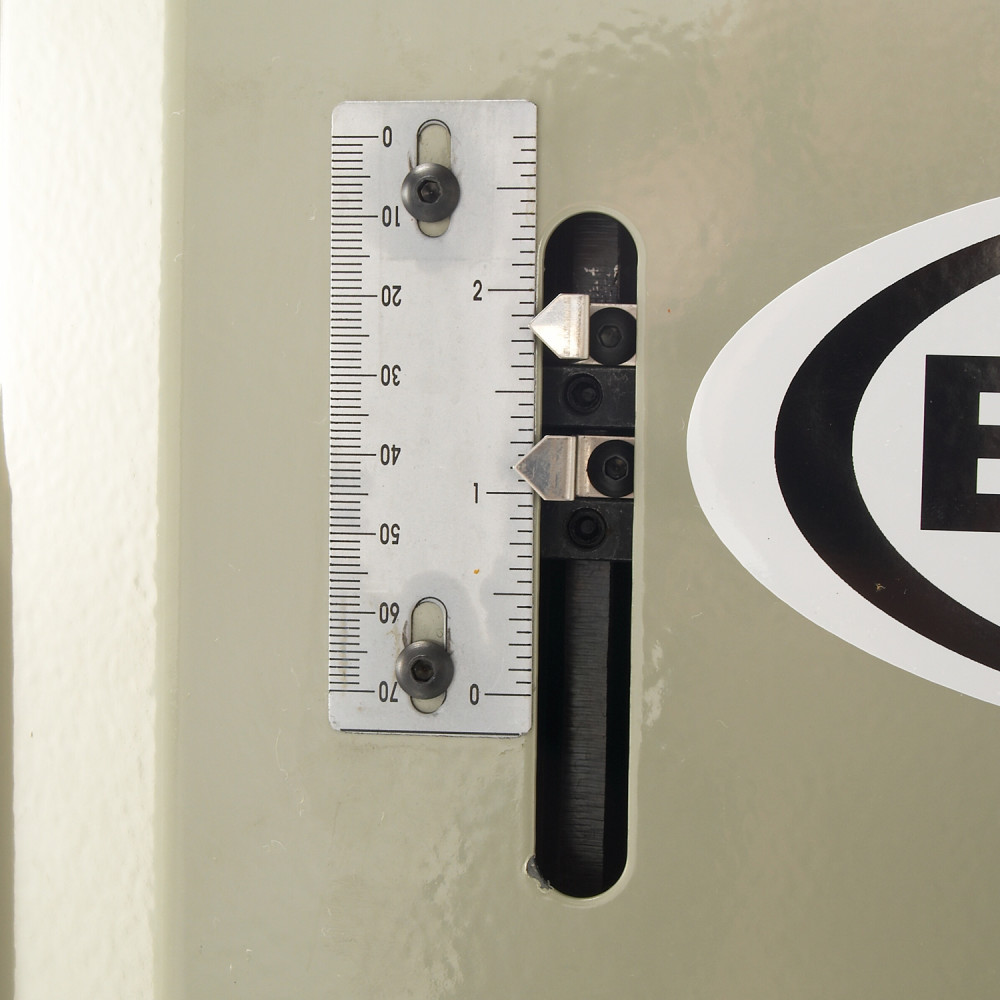

Downward and upward adjustable stroke controls minimize unnecessary machine motion, decreasing energy usage as well as wear and tear

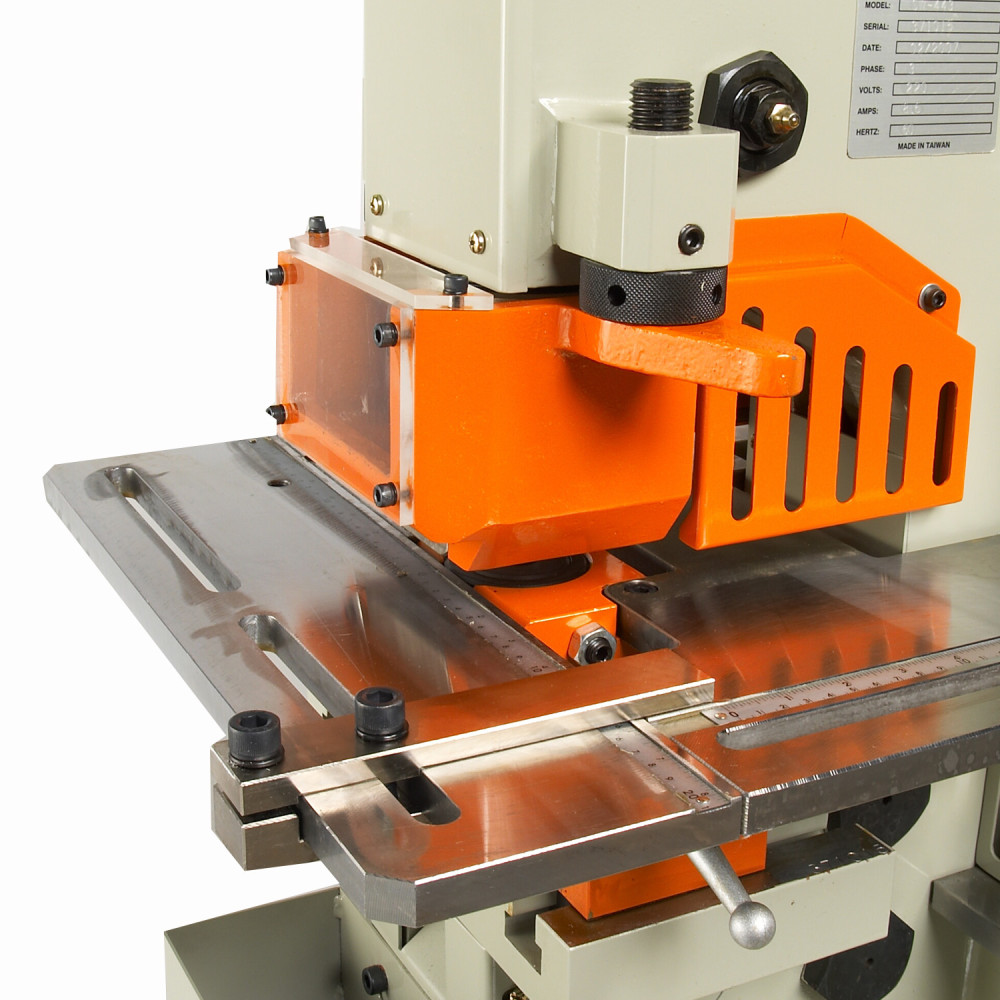

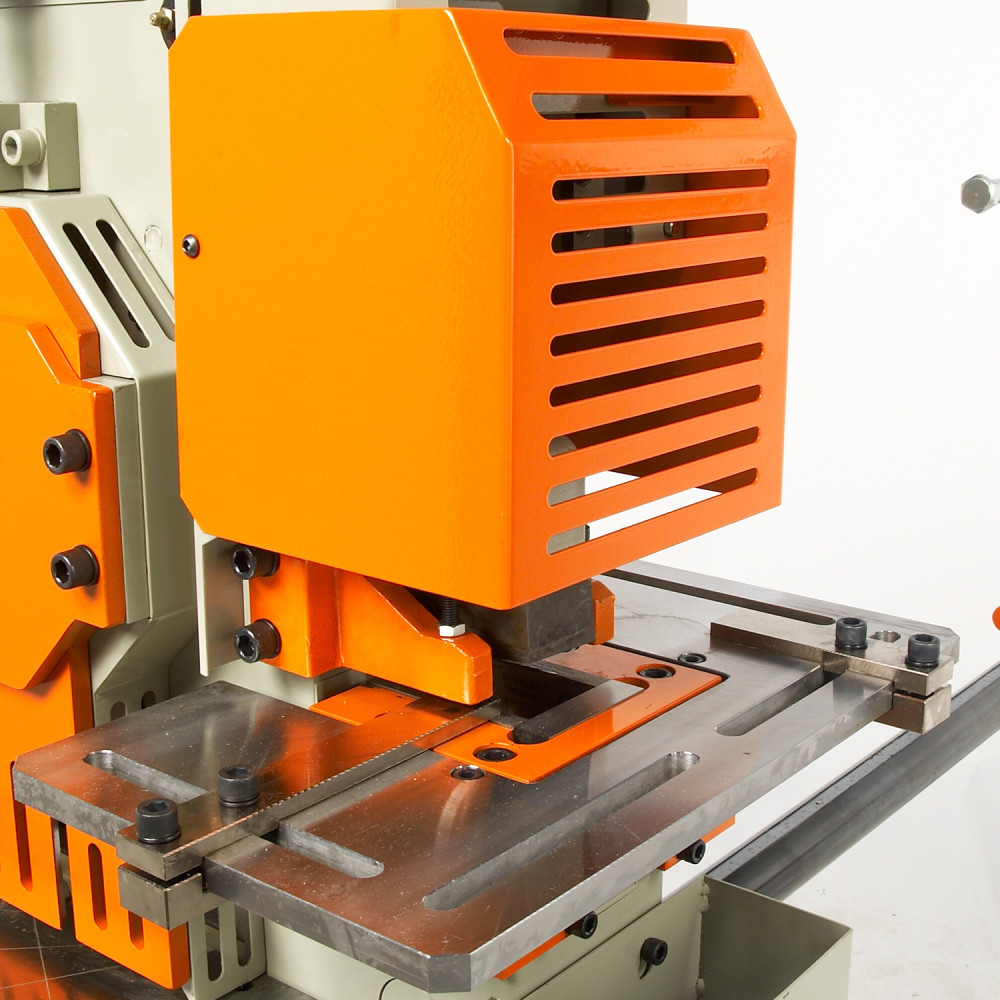

Knurled handle located at the top of the notching station lets you adjust the material hold-down to deliver crisp shears and punched holes
Our patented swing-away material stripper lets you change tooling in seconds

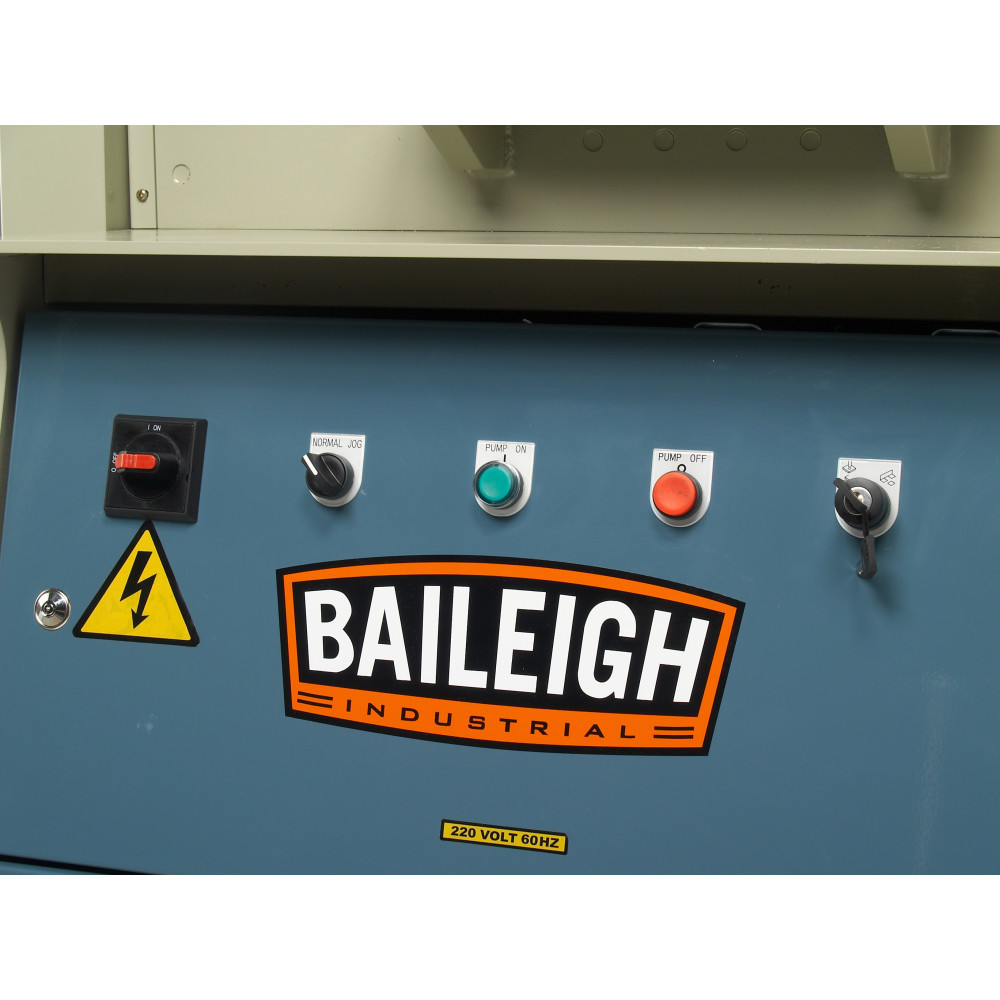

Specify tooling alignment with a turn of the jog dial for increased safety
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1007812
Assembled Weight (lbs)
2465
Country of Origin
China
Horsepower (hp)
5
Material
Welded Steel
Motor Horsepower (hp)
5
Motor Voltage (V)
220
Package Contents
Ironworker Machine
Package Depth
78
Package Height
60
Package Weight
2465
Phase
3
Shop Press Type
Hydraulic
Stroke Length (in)
2
Voltage
220
