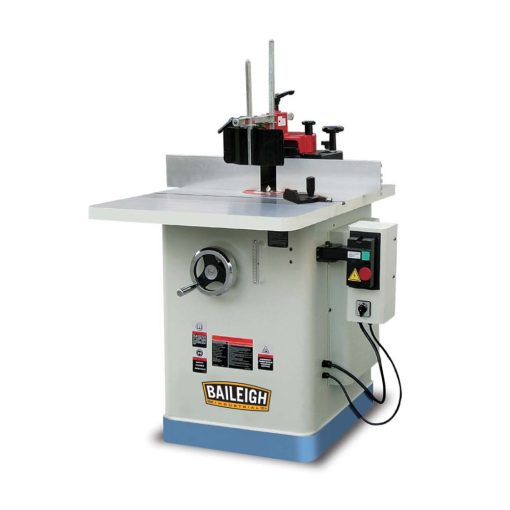

Baileigh SS-2822 Spindle Shaper 220V 1 Phase 3HP 3 Speed 28.5″

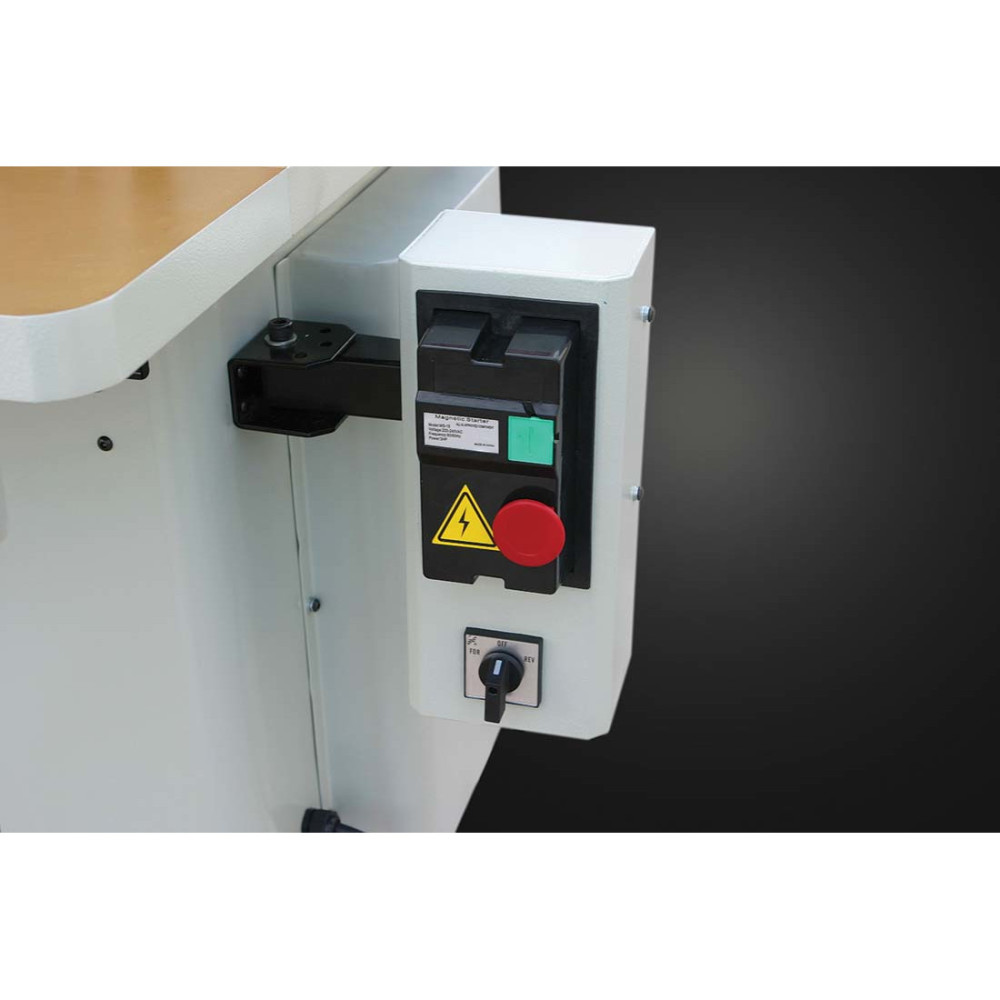

Spindle shapers are an essential part of any wood working shop. The SS-2822 from Baileigh Industrial is a great combination of features and price. This three speed spindle shaper turns 3600, 8500, and 11000 Rpms with its 3HP 220V 1 Phase motor. All controls are front mounted and are thermal overload protected. The SS-2822 is equipped with 3/4 In. and 1-1/4 In. spindles and 1/4 In. and 1/2 In. RC-3 collets.
Features
The table of the SS-2822 is precision ground cast iron and includes a t-slot and miter gauge
The overall size of the table including extension wing is 31 In. x 28-1/2 In.

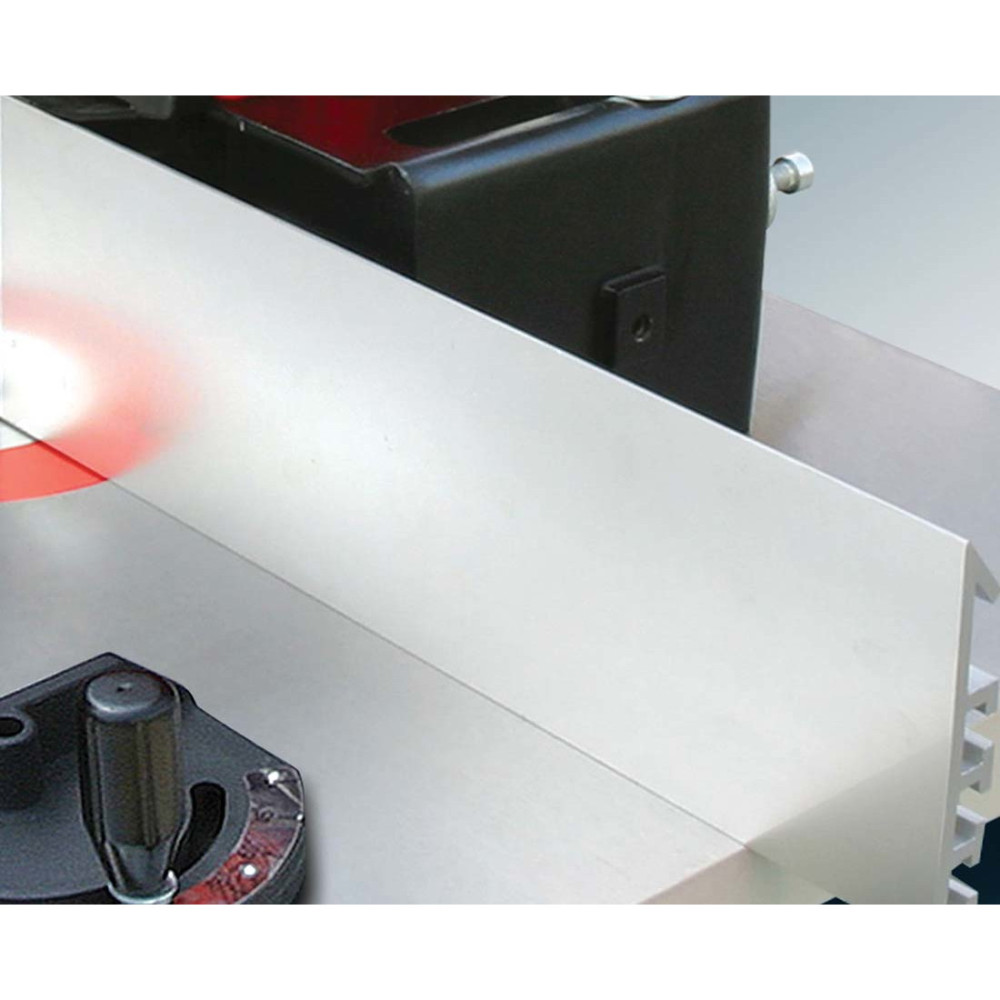

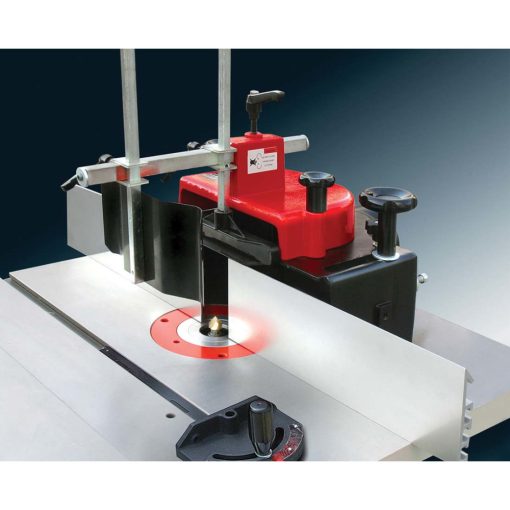

A massive industrial fence is also included for accurate positioning of material

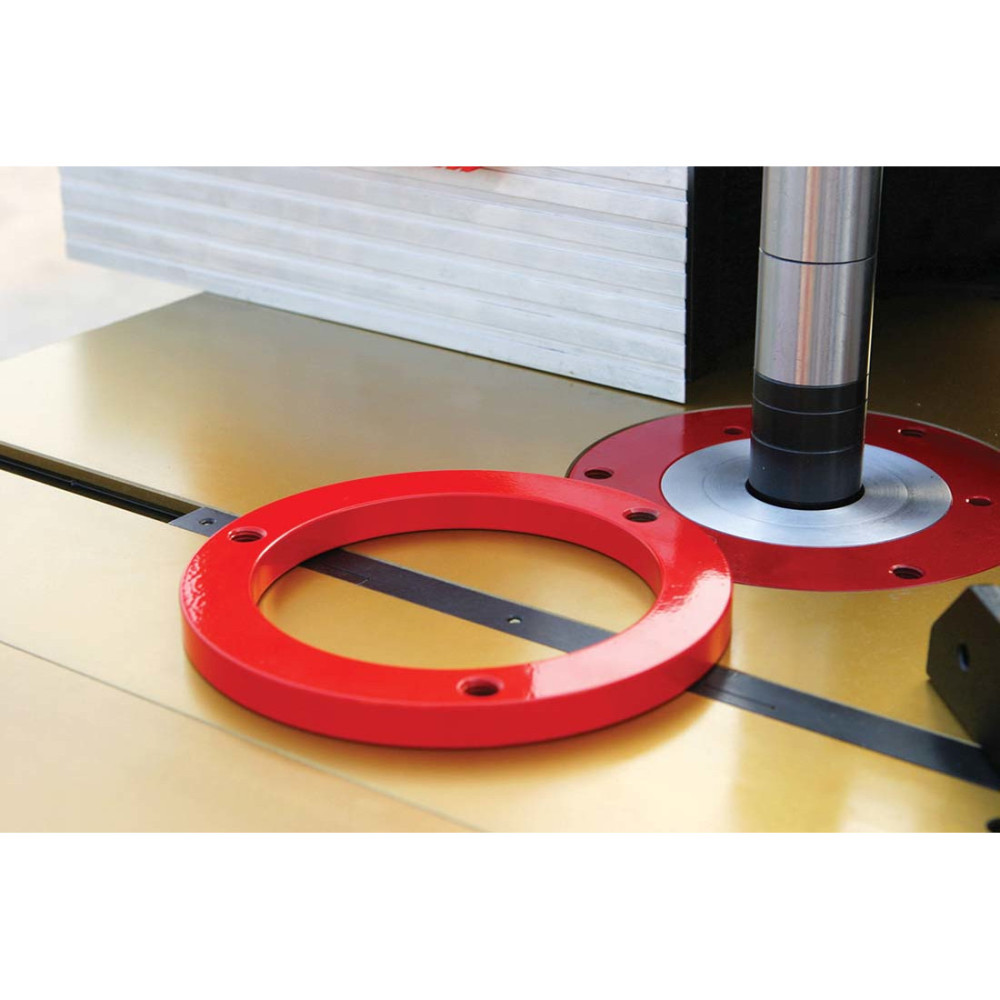

The table also includes multiple insert rings for the different spindles
An integrated 4 In. dust collector is incorporated into the fence as well as a cutting safety guard
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1007608
Amperage (A)
0.0
Assembled Weight (lbs)
450
Country of Origin
Taiwan
Dust Collection
Yes
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Fence Type
Massive Industrial
Horsepower (hp)
3
Micro Adjust Fence
Yes
Package Contents
Spindle Shaper, 3/4 In. and 1-1/4 In. Spindles and 1/4 In. and 1/2 In. RC-3 Collets
Package Depth
44
Package Height
48
Package Weight
450
Phase
1
Spindle Speed High (rpm)
11000
Spindle Speed Low (rpm)
3600
Table Length (in)
22
Table Material
Cast Iron
Table Width (in)
28.5
Variable Speed
Yes
