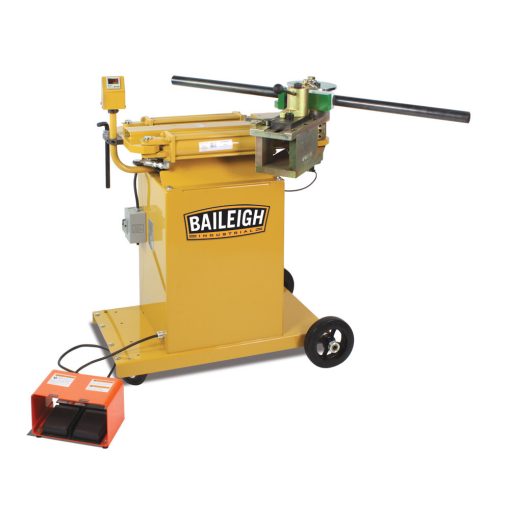

Baileigh RDB-175 Rotary Draw Tube and Pipe Bender Hydraulic
This hydraulic rotary draw bender improves on our breakthrough RDB-150 with patented additional features to streamline your bending jobs.
Features
Maximum capacity of 2 In. schedule 40 pipe and up to 2.5 In. tubing with a wall thickness of 0.12 In. mild steel

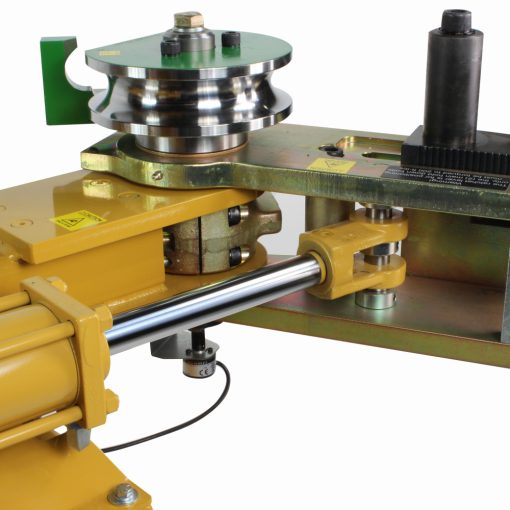

Rotary draw executes 180 Deg bends in a smooth single motion
Bends almost 300% faster than the RDB-150, making quick work of round tube, pipe, and square tubing
Auto-stop programming lets you achieve the desired bend angle without worrying about accuracy

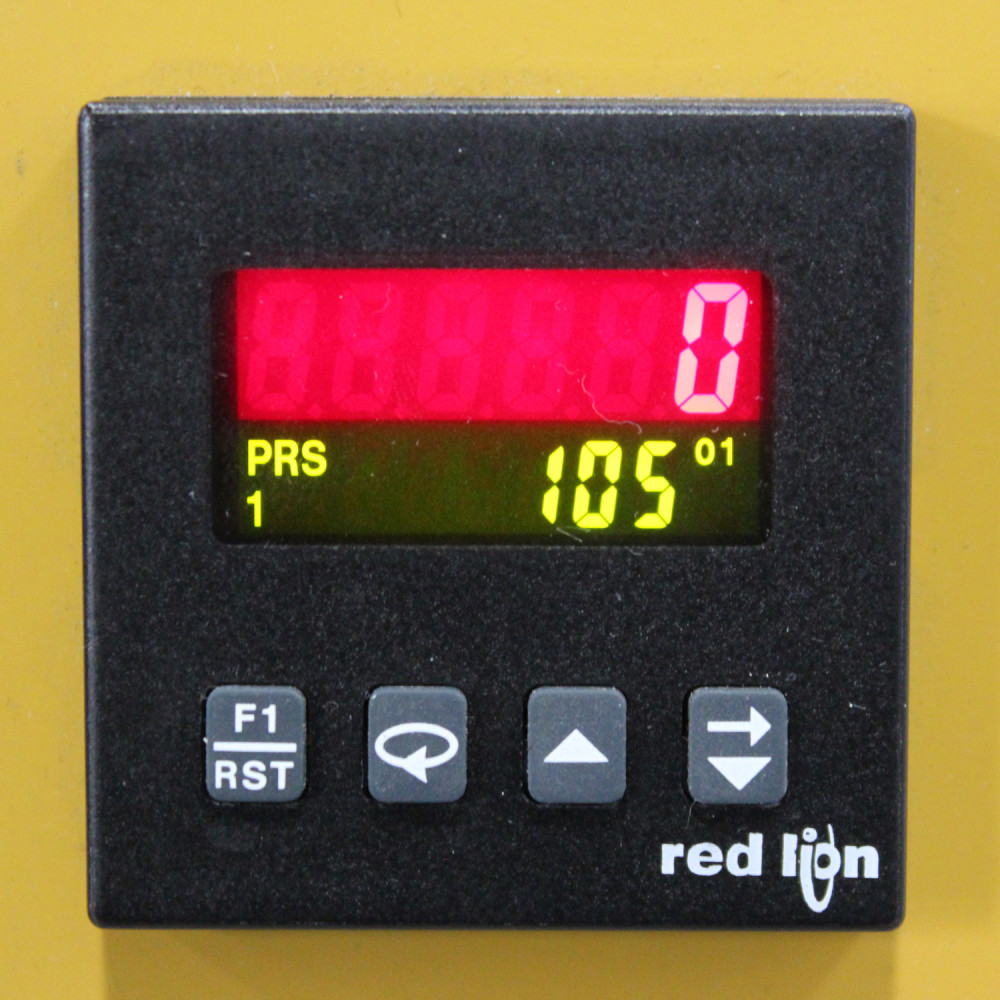

Easy-to-read digital degree indicator to monitor bend progress and check angles

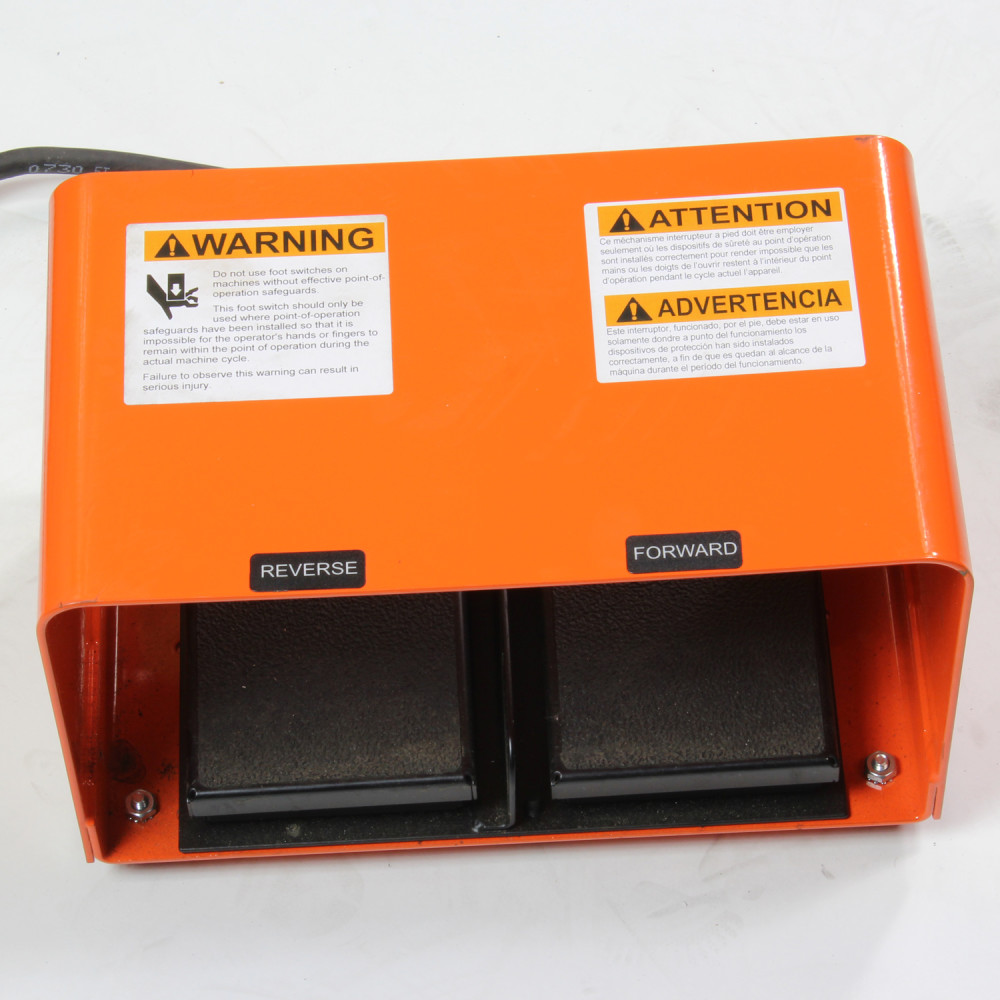

Convenient foot pedal controls the movements of the bender, leaving your hands free to guide the material
Works with up to a 9 In. centerline radius to accommodate 90% of applications

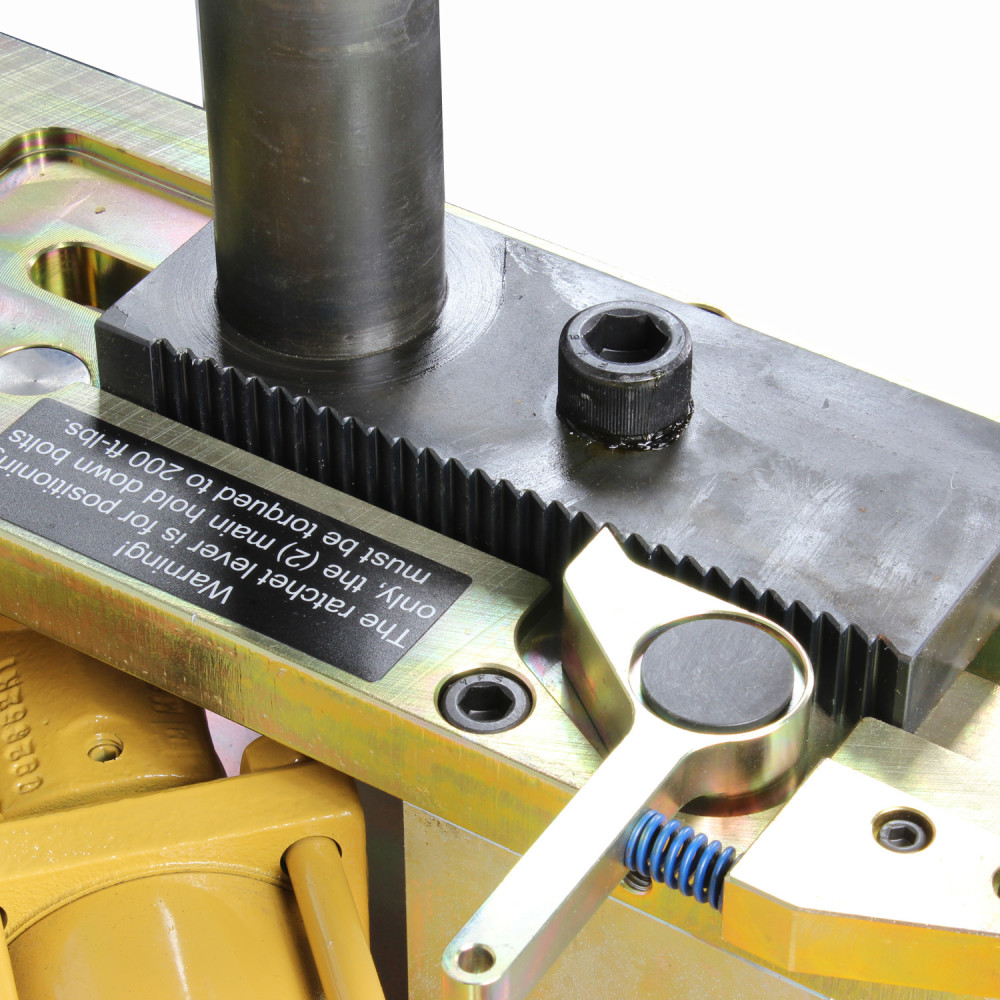

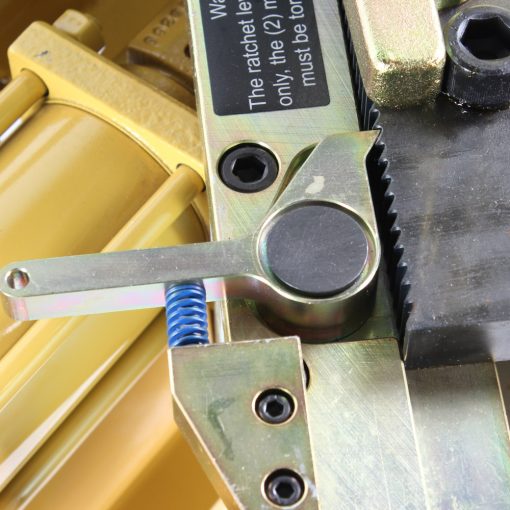

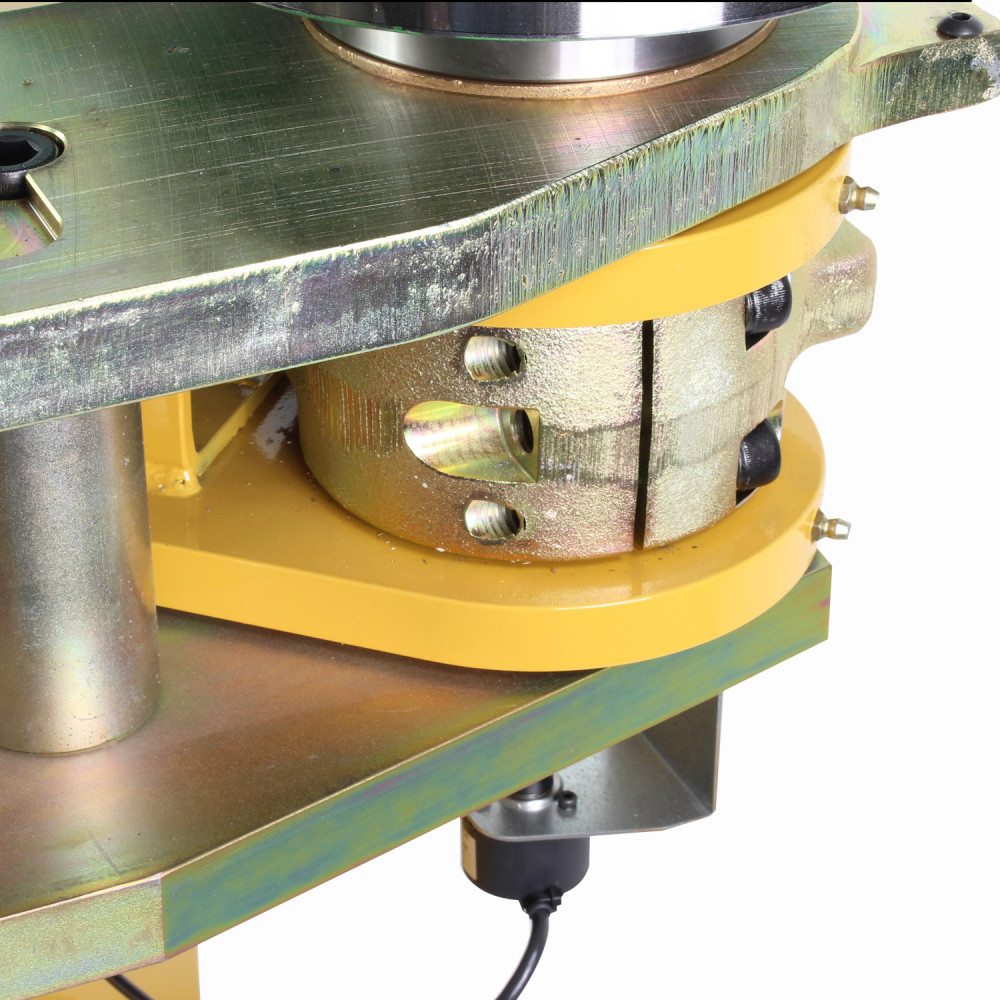

Ratcheting counter die adjustment allows for quick tooling changes

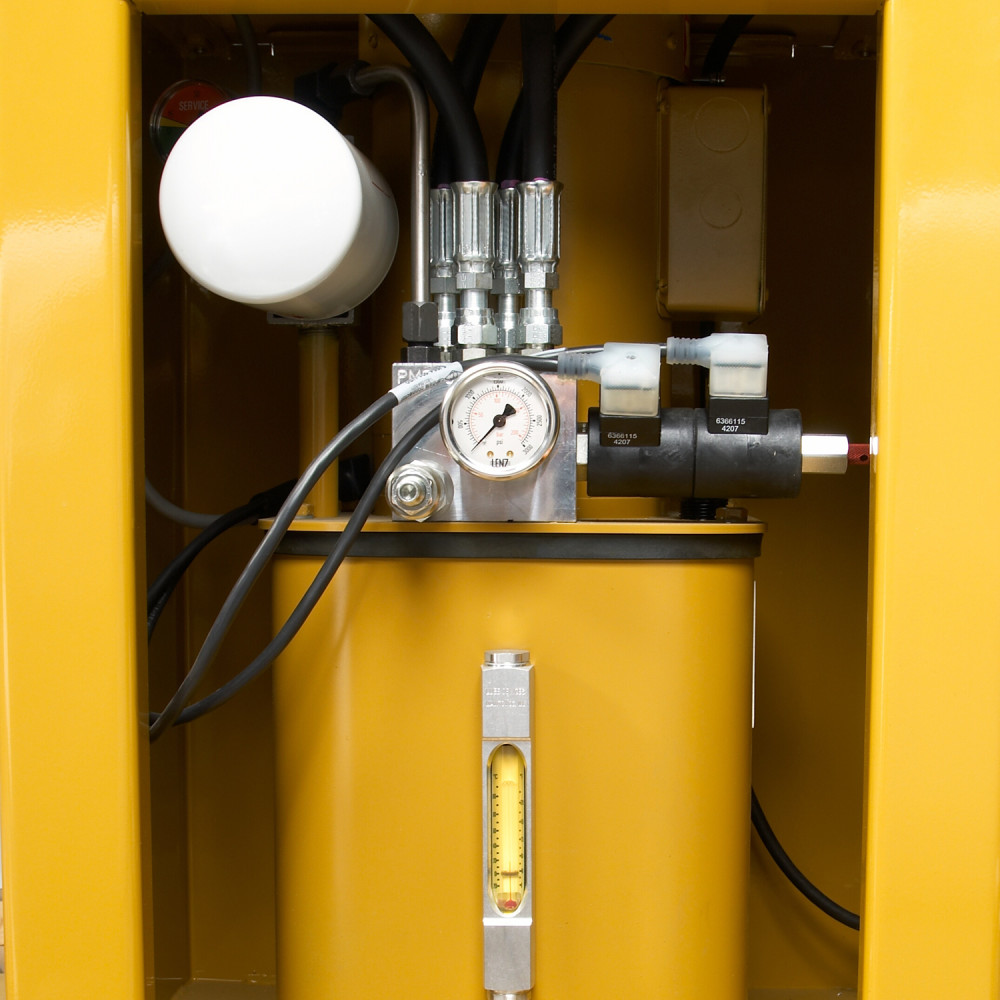

No valves on top, leaving plenty of open space for complex bends
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1006785
Assembled Weight (lbs)
700
Country of Origin
United States
Maximum Pipe / Tube Diameter (in)
2 Pipe/2.5 Tube
Minimum Pipe / Tube Diameter (in)
0.25
Package Contents
Rotary Draw Bender
Package Depth
77
Package Height
60
Package Weight
700
