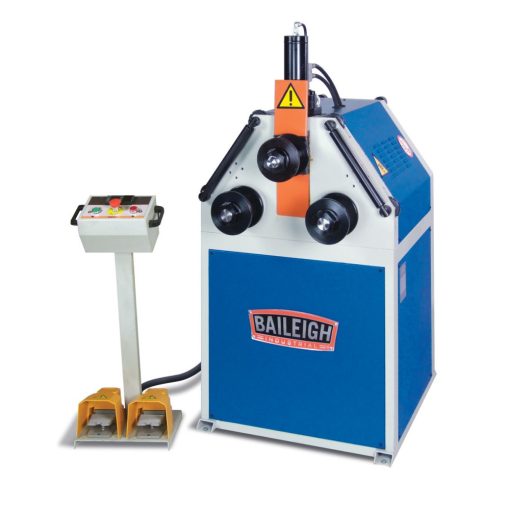

Baileigh R-M55H Hydraulic Angle Ring Roll Bender Machine

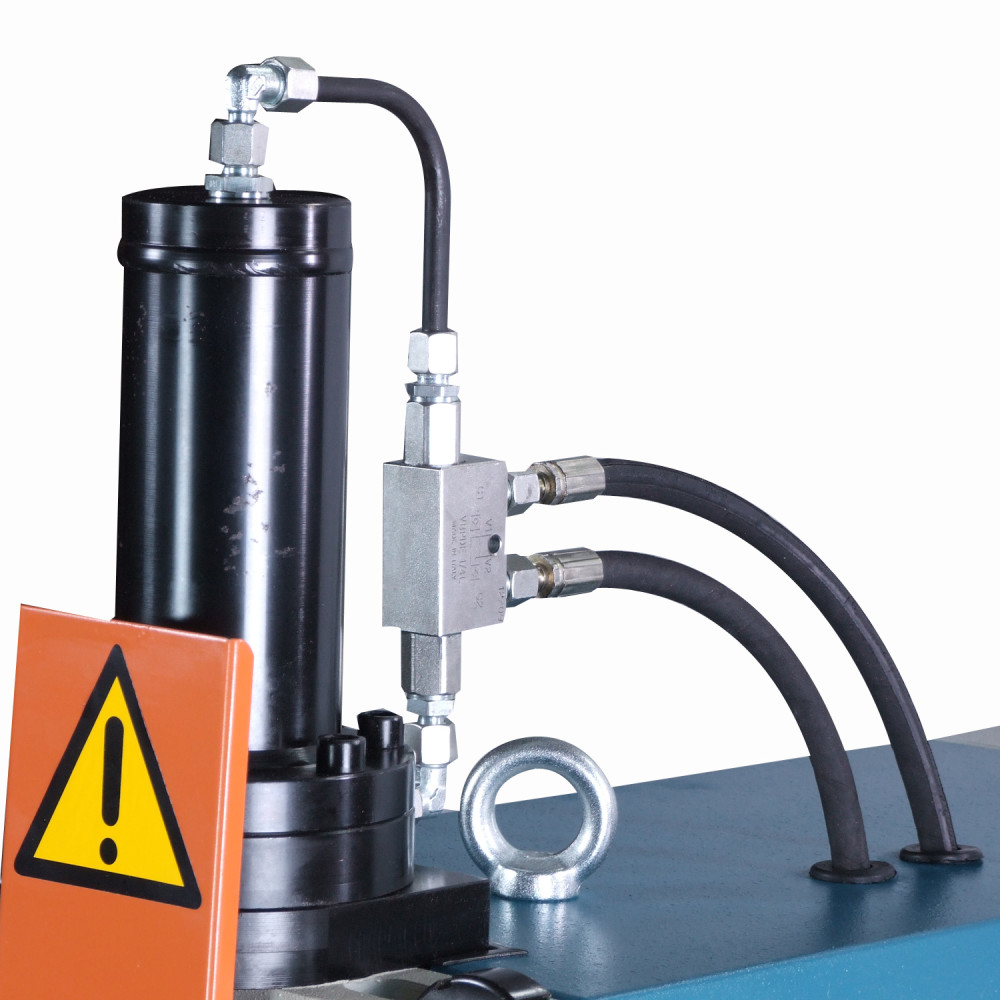

This hardworking ring roller adds an industrial-grade hydraulic system to the many tried-and-true features from our landmark R-M55.
Features
This ring roller bender runs on 220V 1 Phase power
Bends a maximum capacity of 2.75 In. round tube and 2 In. schedule 40 pipe

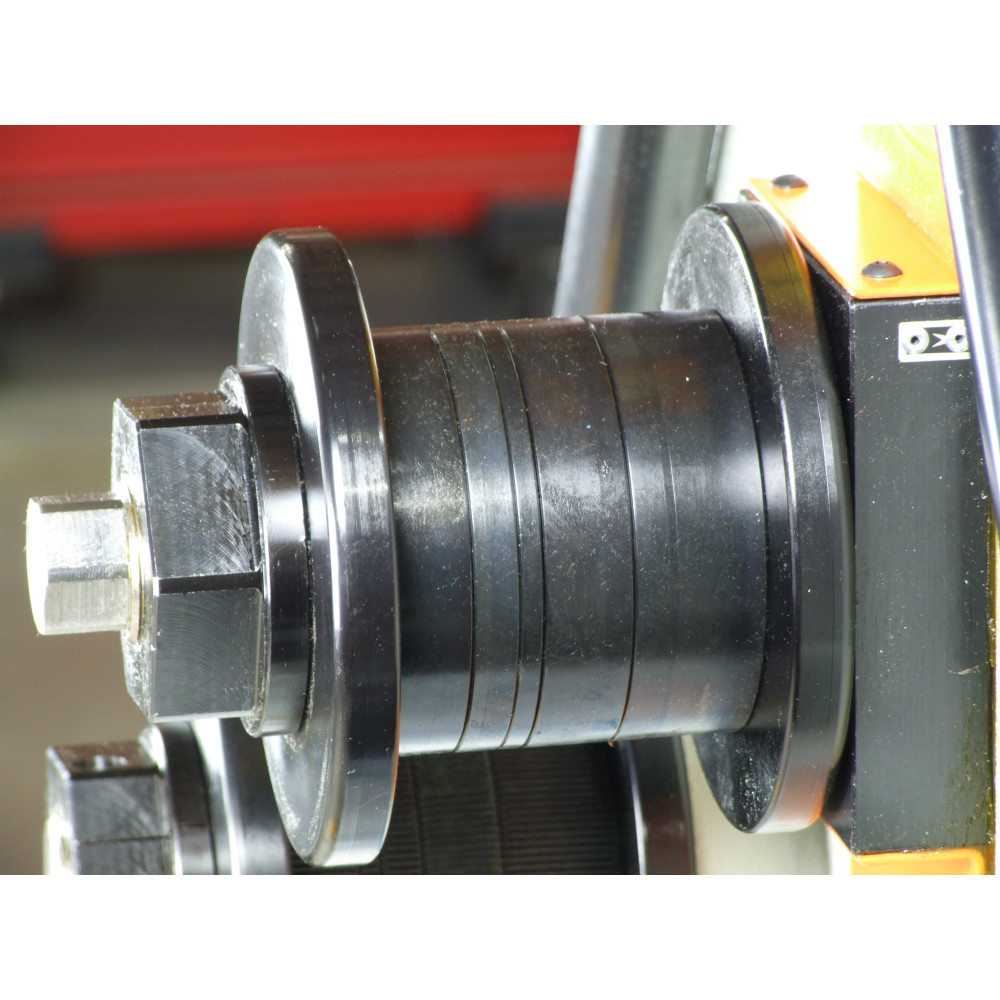

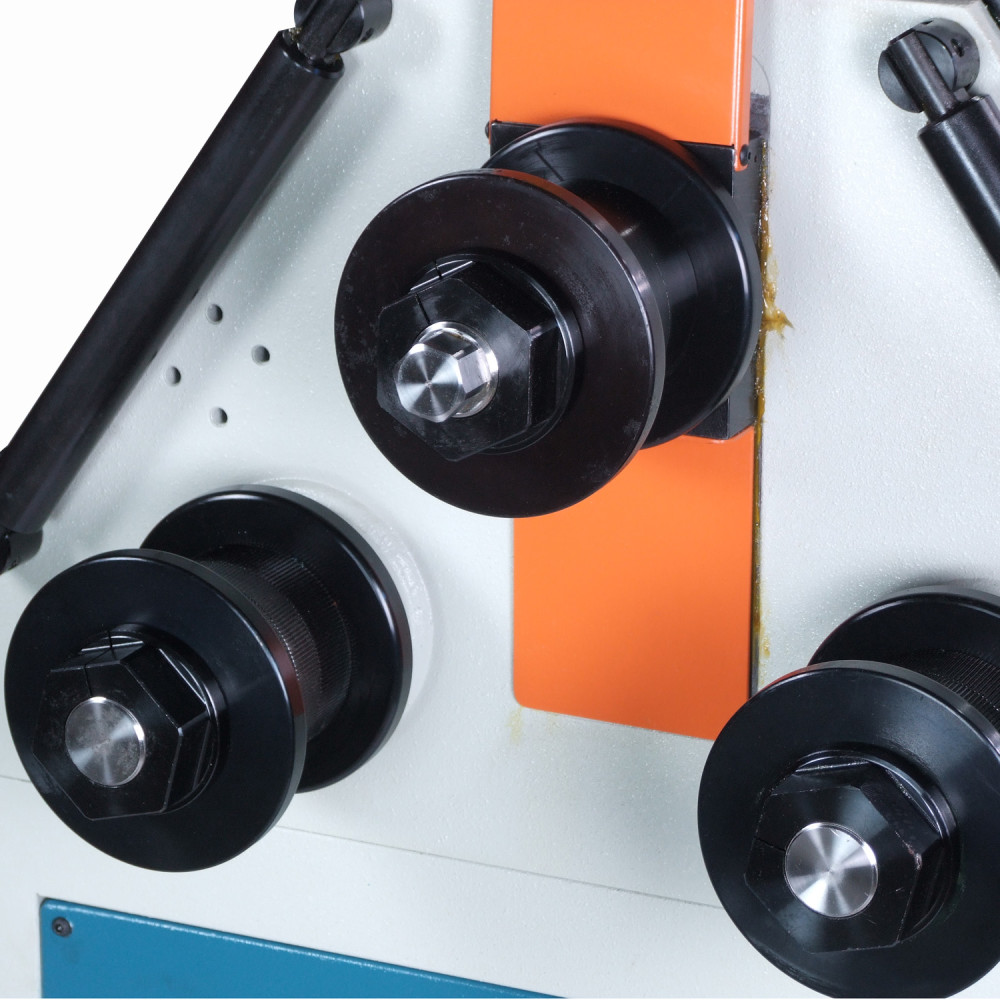

Works with 3 rolls – 1 top forming roll and 2 driven bottom rolls
You can operate the R-M55H in 2 positions – vertical, for small rolling projects, and horizontal (on its back) for longer sections of material

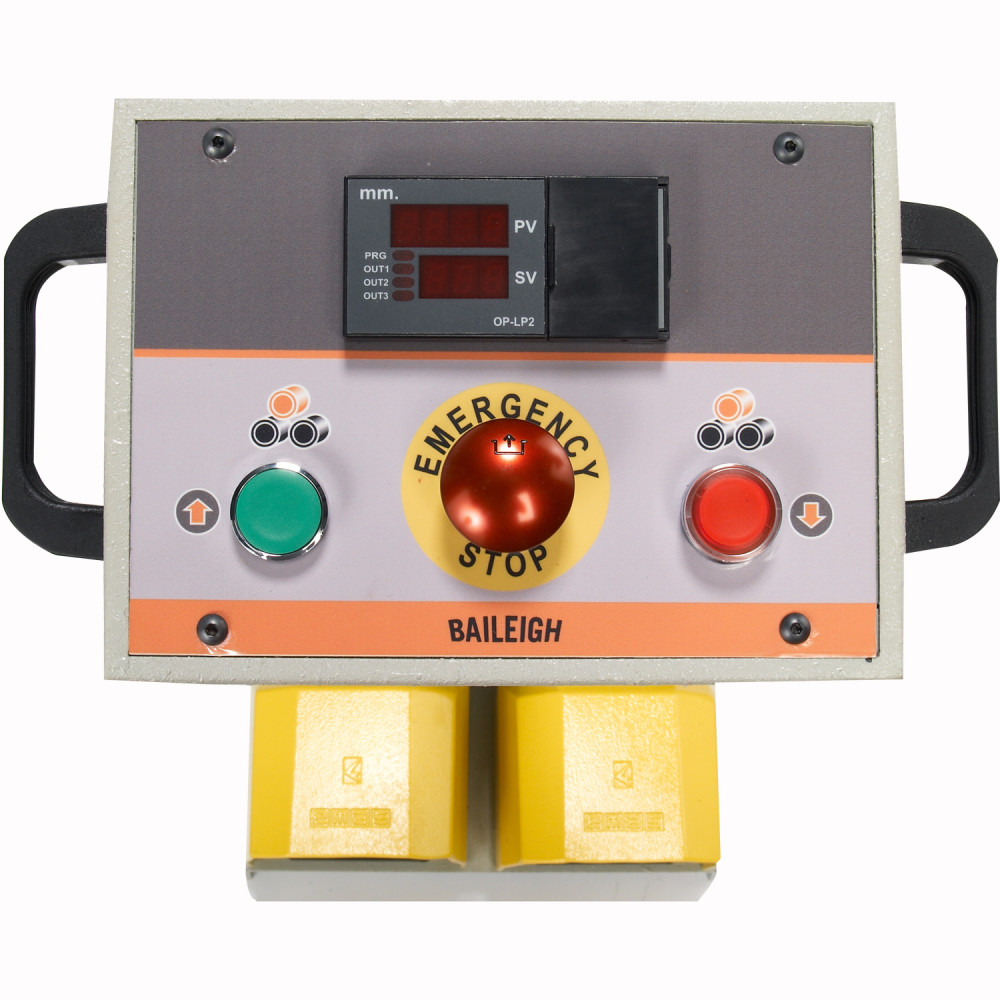

Independent, easily-movable control pedestal lets you adjust the top roll’s positioning and program stops
Digital readout tells you the exact position of the top shaft to ensure simple repeatability for production runs
Direct gearbox drive system delivers mighty full torque even when bending at full capacity
Foot pedal control lets you conveniently switch between forward and reverse modes

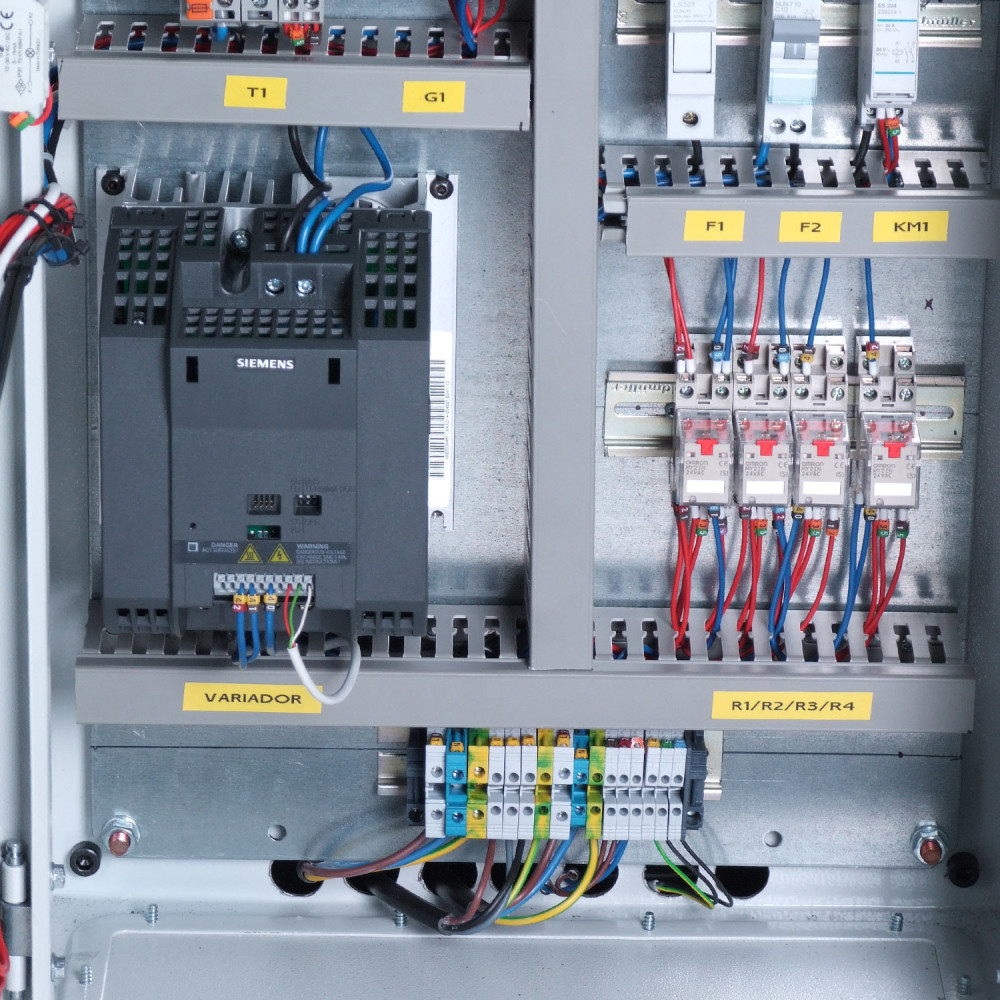

Variable-speed inverter allows you to adjust the rolling speed to suit you material and project
Baileigh R-M55H 220V 1 Phase 60HZ 1.968 In. Diameter Shaft Electric Powered Hydraulic Roll Adjustment Angle Ring Roll Bender Machine
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1006859
Application
For Bends up to 2.75 In. Round Tubing and 2 In. Schedule 40 Pipe
Assembled Weight (lbs)
965
Country of Origin
China
Material
Welded Steel Frame
Number of Rollers
3
Package Contents
Roll Bender Machine
Package Depth
77
Package Height
60
Package Weight
965
Power Source
Electric
Swivel Wheel
No
