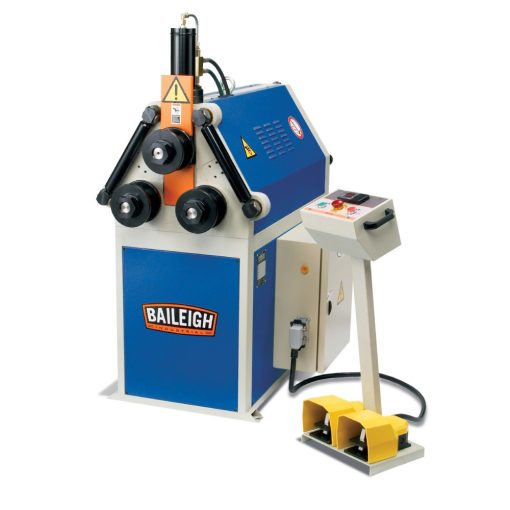

Baileigh R-H45 Hydraulic Angle Ring Roll Bender Machine
The R-H45 hydraulic ring roller won’t flinch while bending large radii out of tough materials. This tubing roller’s programmer controls also simplify production runs.
Features
Runs on 220V 1 Phase power and will work at just about any fabrication shop or job site
Bends up to 2 In square x 0.12 In. wall tubing and 2 In. schedule 40 pipe, among other materials

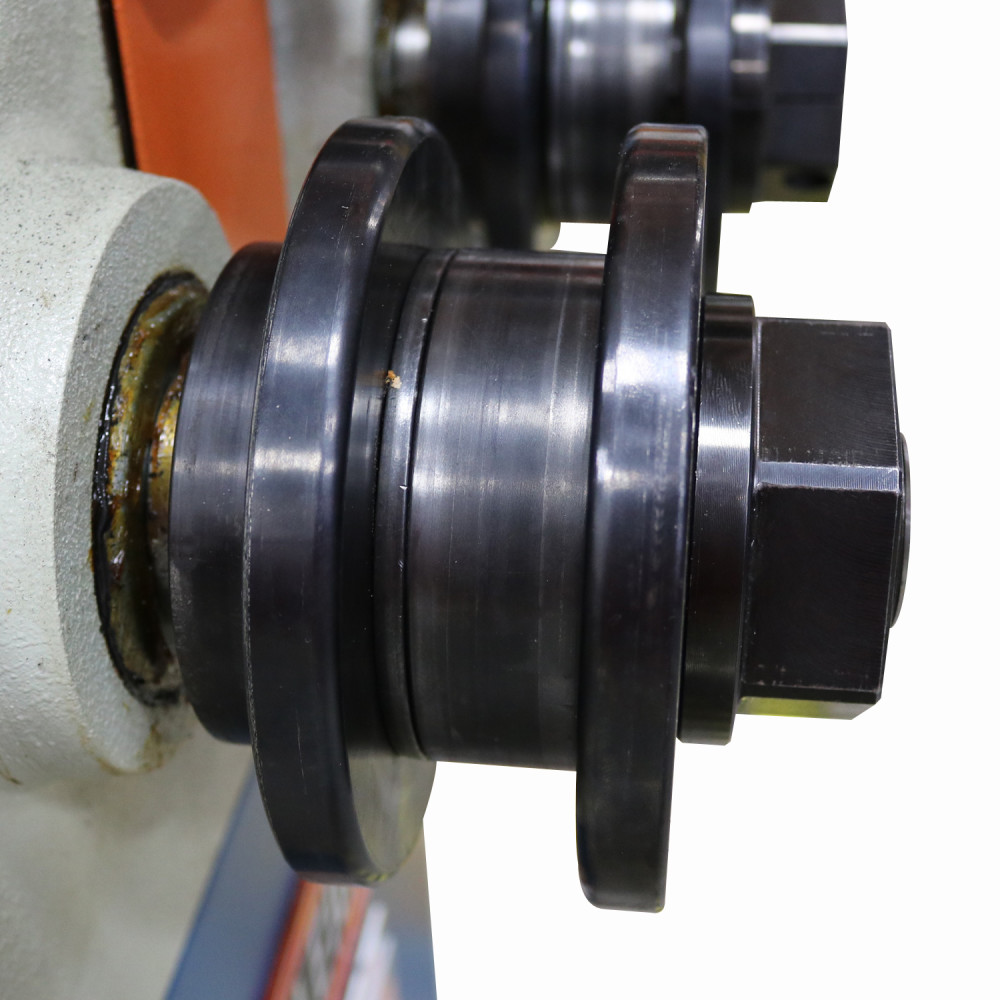

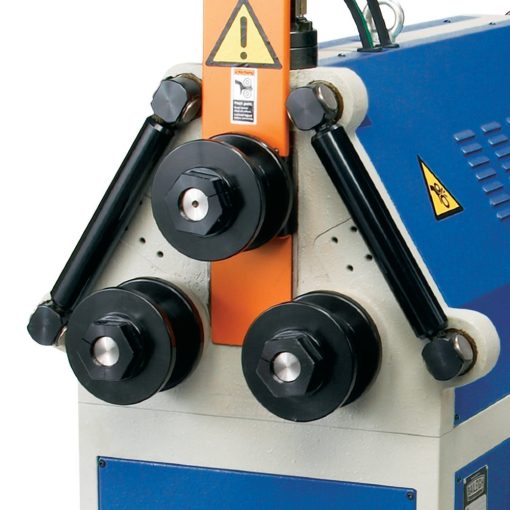

All 3 rolls turn on industrial motor and transmission

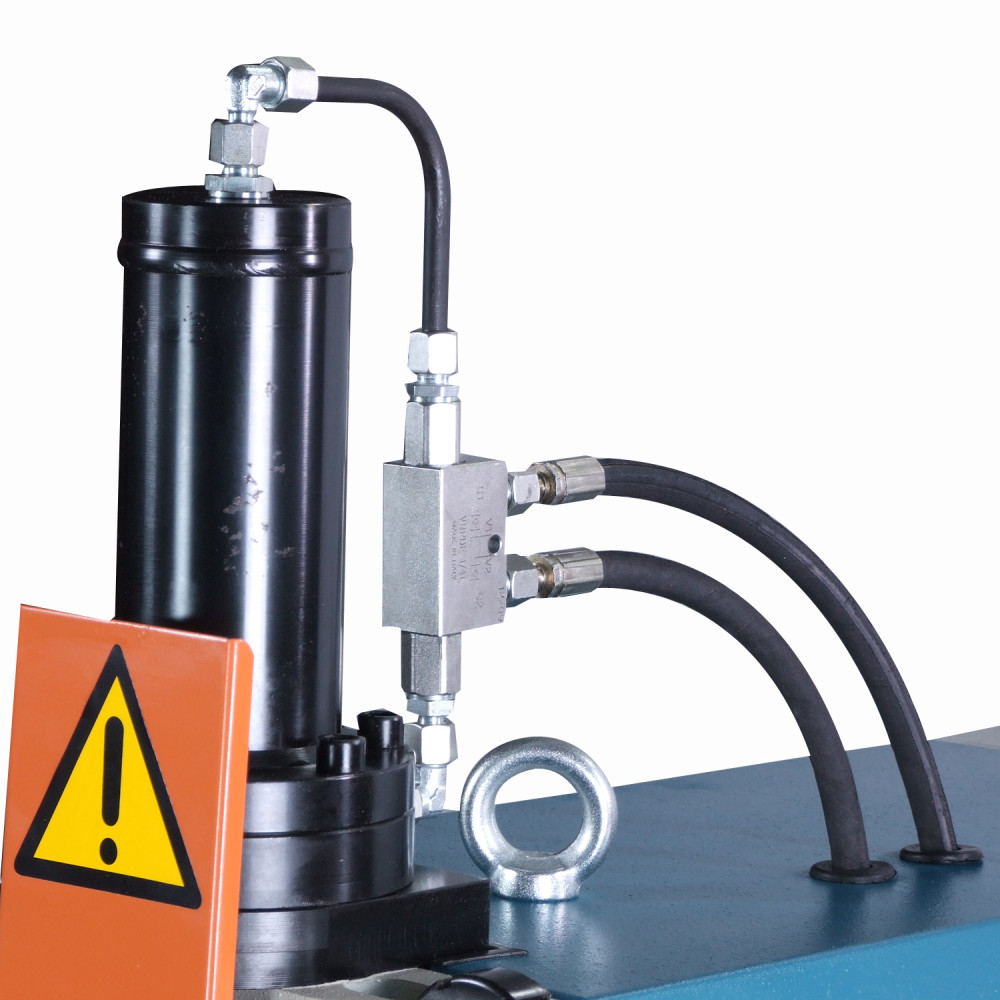

Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment

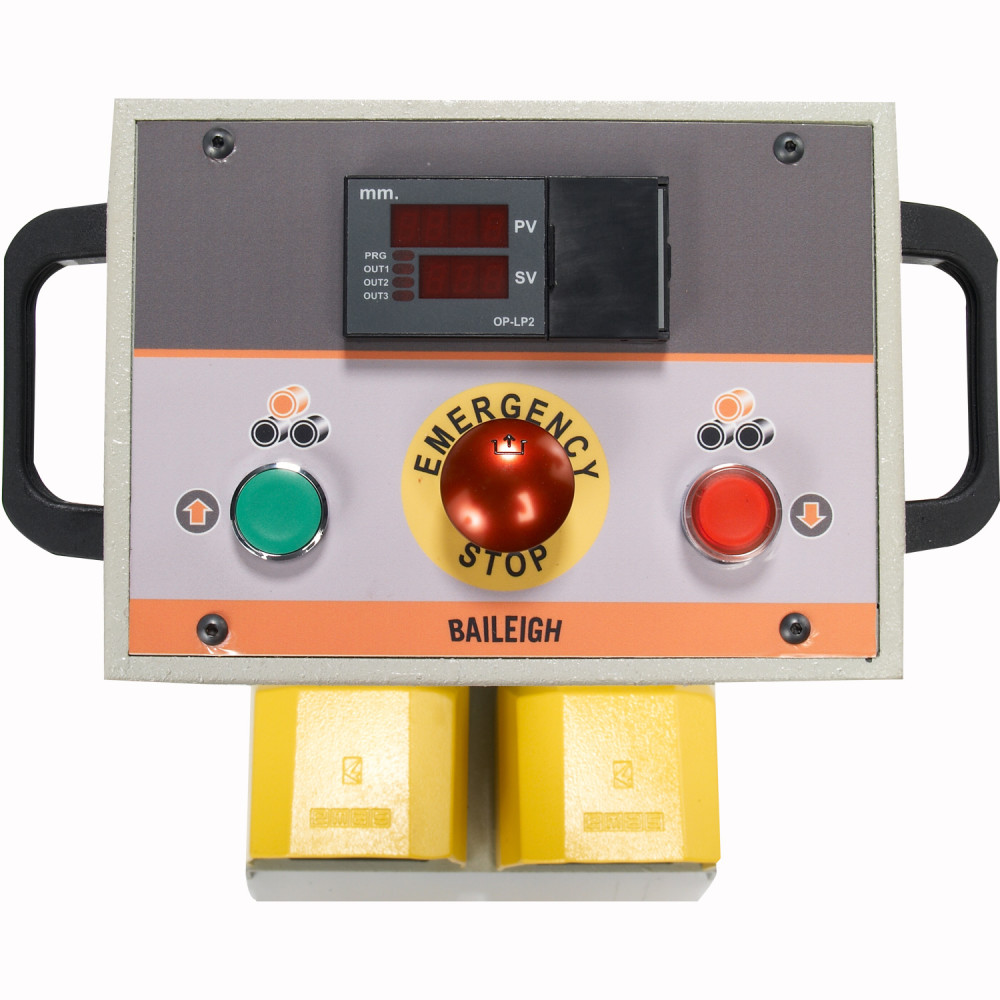

Digital readout with programmable stop controls upward and downward roll position for easy repeatability
Siemens inverter drive enables soft start-ups to prolong motor life
Operator podium includes foot pedal, allowing you to stop and start the machine with ease
You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters
Fully-welded steel plate frame adds strength to the machine and minimizes flex
Baileigh R-H45 220V 1 Phase 60HZ 1.772 In. Diameter Shaft Electric Powered Hydraulic Roll Adjustment Angle Ring Roll Bender Machine
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1006835
Application
For Bends up to 2 In. Square x 0.12 In. Wall Tubing and 2 In. Schedule 40 Pipes
Assembled Weight (lbs)
1000
Country of Origin
China
Material
Welded Steel Frame
Number of Rollers
3
Package Contents
Roll Bender Machine
Package Depth
77
Package Height
60
Package Weight
1000
Power Source
Electric
Swivel Wheel
No
