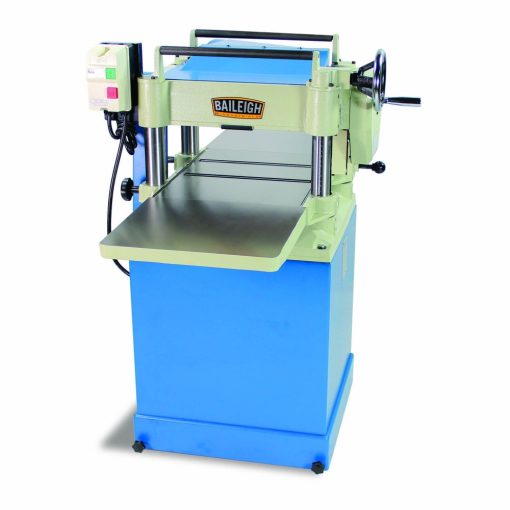

Baileigh IP-156 Industrial Planer 220V 1 Phase 3HP 15″
Even our most economical planer offers 2 Speeds, a large cast iron table, and the best safety features. Built to last, this 15 In. wide planer is perfect for hobbyists and shops on a budget.
Features
Robust 3HP motor turns the cutter head at 5000 Rpm, straight 3-knife cutter head comes standard
6 In. maximum cutting height, up to 1/8 In. cut depth, runs on 220V 1 Phase power, you can use this planer almost anywhere
Switch between 2 infeed speeds: 20 fpm to remove a lot of material quickly, 16 fpm to give you a smoother finish (or to handle harder or chip-prone material more cautiously)
15 In. x 20 In. main table includes front and back cast iron wing extensions that can expand to 15 In. x 48 In.
Large table keeps the board flat and straight for dependably true cuts
Anti-kickback fingers help prevent accidents by gripping a piece of wood if it jams the machine
Magnetic starter switch automatically shuts down the planer if there’s a problem with current, like a power surge
Fully-enclosed steel stand reduces vibrations and maintains accuracy over many years of daily use, integrated wheels on the base allow you to move the planer easily
4 In. dust port can hook up to your dust collection system so your shop stays neat and clean
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1004935
Amperage (A)
1-30
Assembled Weight (lbs)
520
Bench or Stationary
Stationary
Blade Count
3
Blade Cutting Material
Carbide
Cord Length (ft)
25/50/100
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Straight Knives
Depth Measurement System
Yes
Drive Motor System
Electric
Feed Rate/s (Ft/Min)
16 or 20
Housing Material
Cast Iron and Steel
Integrated Chip Management
Yes
Maximum Board Thickness (in)
6
Maximum Cutting Depth (in)
0.125
Maximum RPM
5000
Maximum Width Cutting Capacity (in)
15 in
Motor Horsepower (hp)
3 HP
Package Contents
Industrial Planer
Package Depth
52
Package Height
60
Package Weight
520
Reversible
No
Set / Individual
Individual
Switch Type
Magnetic
Variable Speed
No
