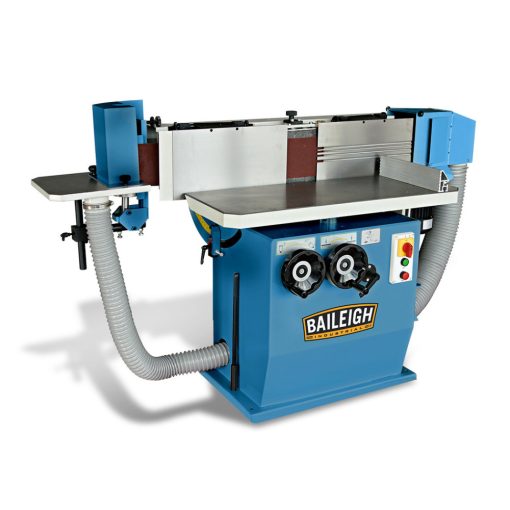

Baileigh ES-8120 Vertical Edge Sander 220V 3 Phase 4HP
The ES-8120 from Baileigh Industrial might just be the best value in vertical edge sanders. This sander comes with all the bells and whistles that one could want and has a 6 In. x 120 In. belt. Running on a 4HP 220V 3 Phase motor the ES-8120’s belt turns 3937 fpm more than fast enough to take care of any job. Along with the speed of rotation the ES-8120 also oscillates 3/4 In. up and down to help extend belt life. The large 41 In. x 8 In. table is adjustable from 90-45 Deg and has 8-1/2 In. of adjustable height. The ES-8120 includes many attachments that help with those unique jobs, things like belt covers and adjustable platens. Two integrated dust hoods with ducting are also included to help keep the shop clean.
Features
6 In. x 120 In. belt is ideal for large projects like doors and tables
Robust 4HP motor runs on 220V 3 Phase power
Turns 3937 fpm, more than fast enough to take care of any job
Belt not only rotates, but also oscillates 3/4 In. up and down, giving you a smoother finish and extending belt life

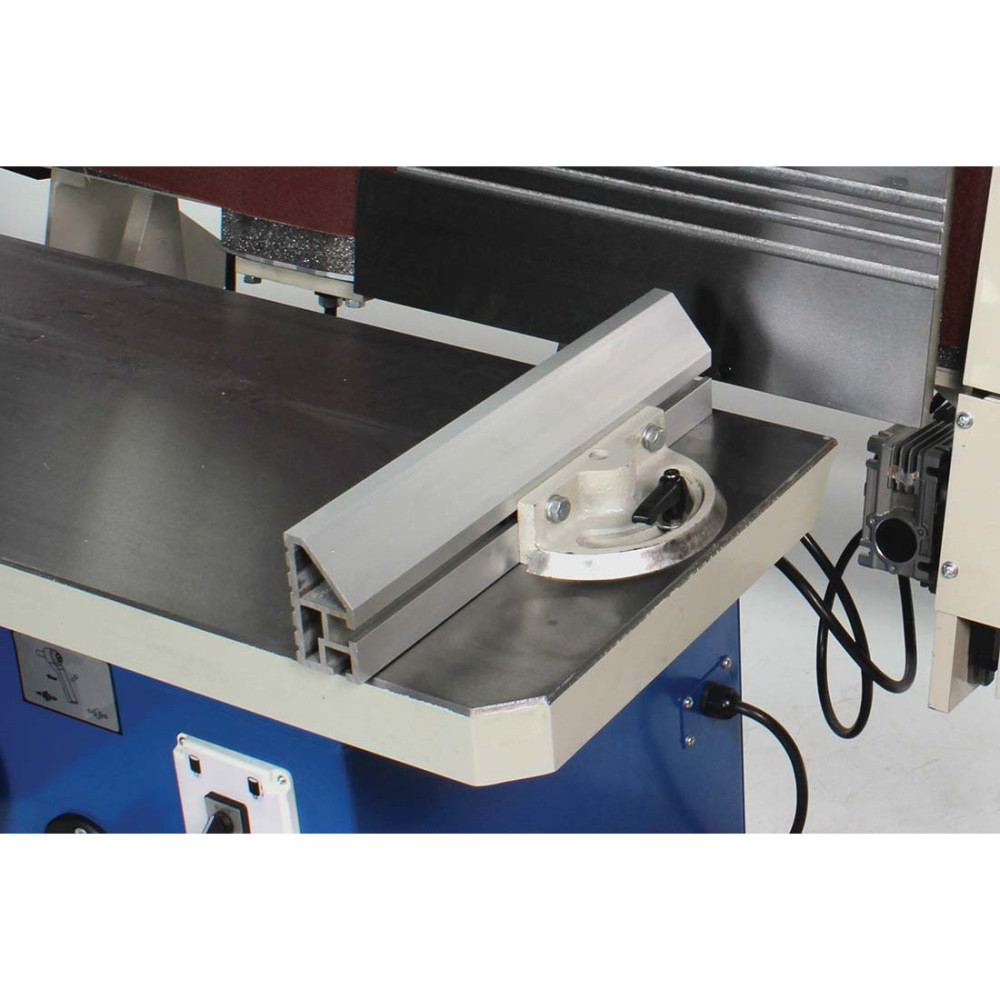

41 In. x 8 In. cast iron table won’t warp or wobble over many years of heavy production

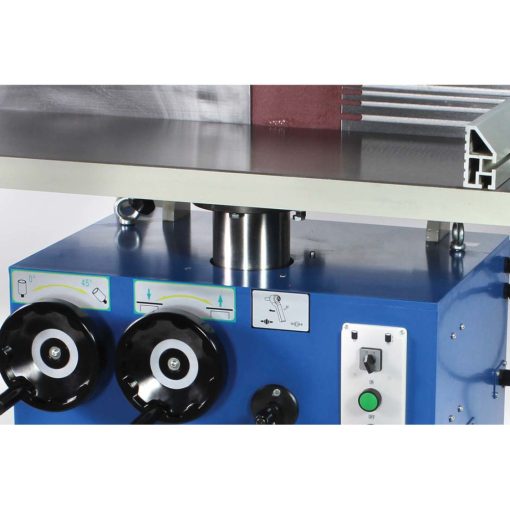

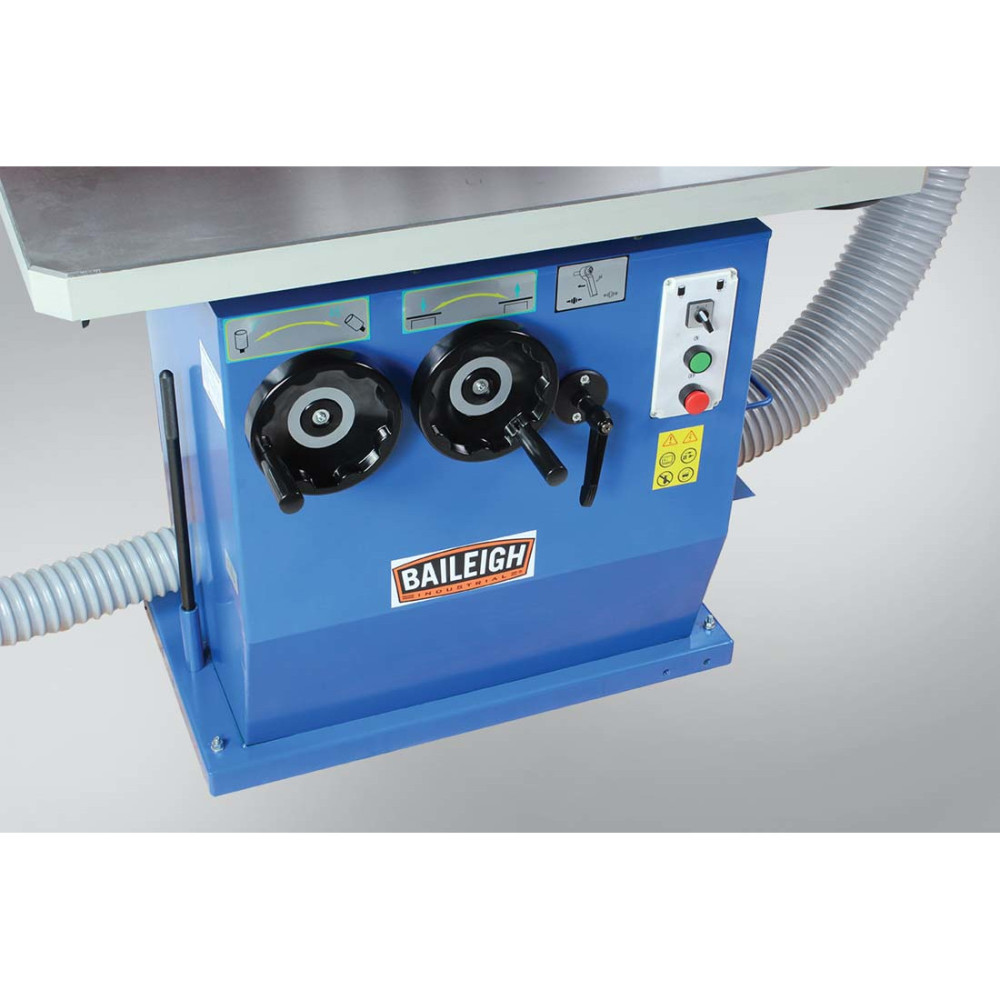

Table lift handwheel lets you raise and lower the massive table without straining
Table adjusts from 90-45 Deg with 8-1/2 In. of adjustable height
Adjustable platens help limit the amount of material removed when veneer sanding

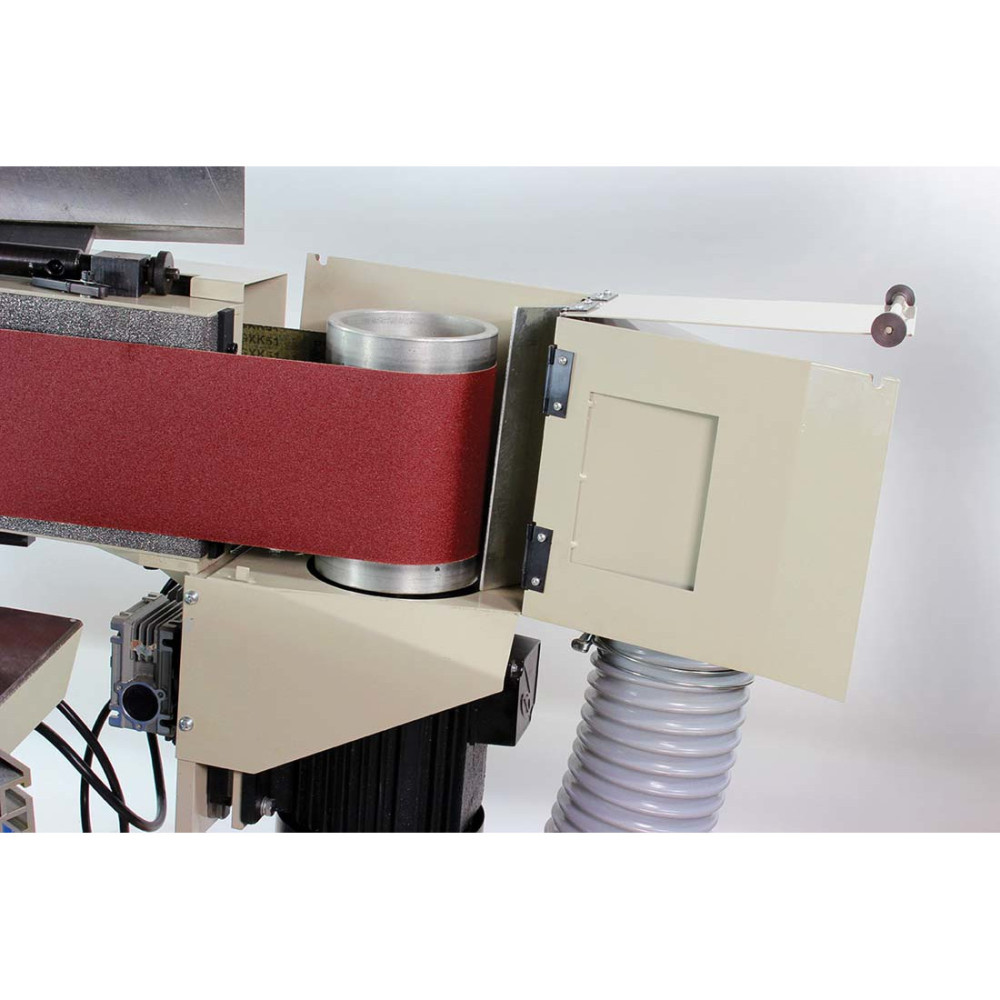

2 dust hoods, already ducted, are included to trap particles and work with your dust collector
