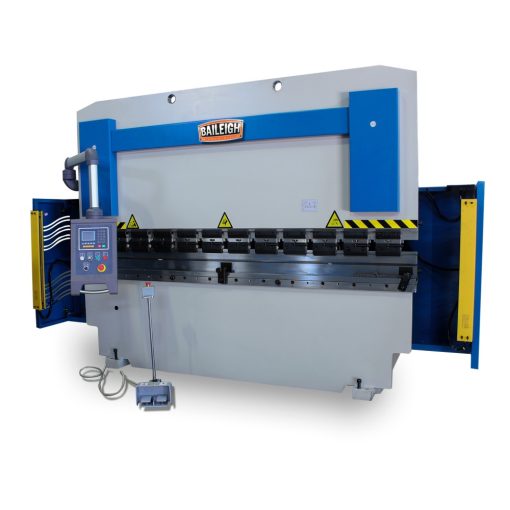

Baileigh BP-7098CNC 70 Ton Hydraulic Press Brake 98″
Need an industrial press brake that’s easy to use? You can learn how to program the BP-7098CNC’s 2-axis controller in 5 minutes. A heavy steel frame keeps this machine accurate.
Features
Delivers 70 tons of pressure over its entire 98 In. length, Long enough to bend 8 Ft. pieces of mild steel, Runs on 220V 3 Phase power

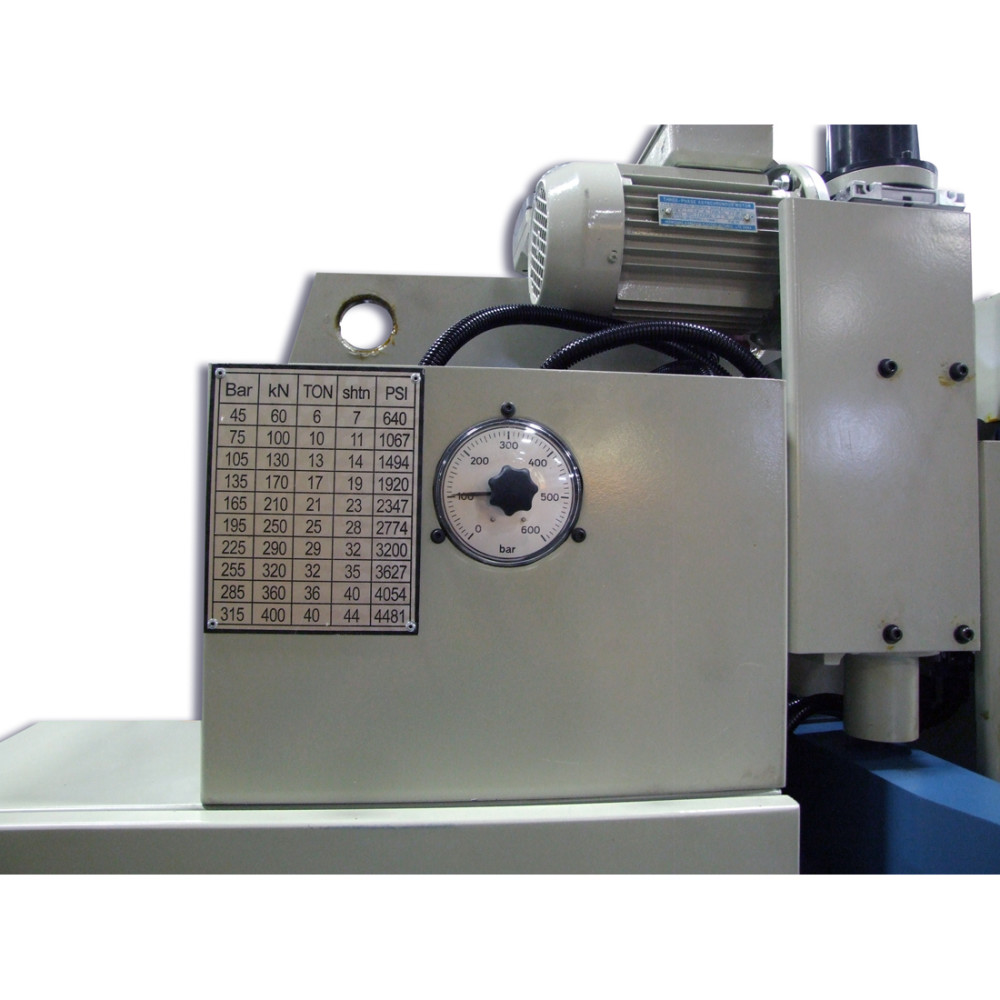

Industrial-grade hydraulic system with a Vickers/Eaton® pump will last for many years at peak capacity
Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times
Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer

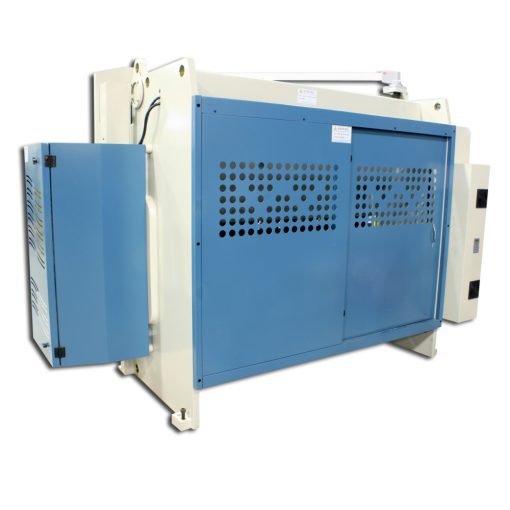

Hydraulic cylinders are near the back of the machine for convenient fluid changes
Runs in single-bend mode or programmable mode

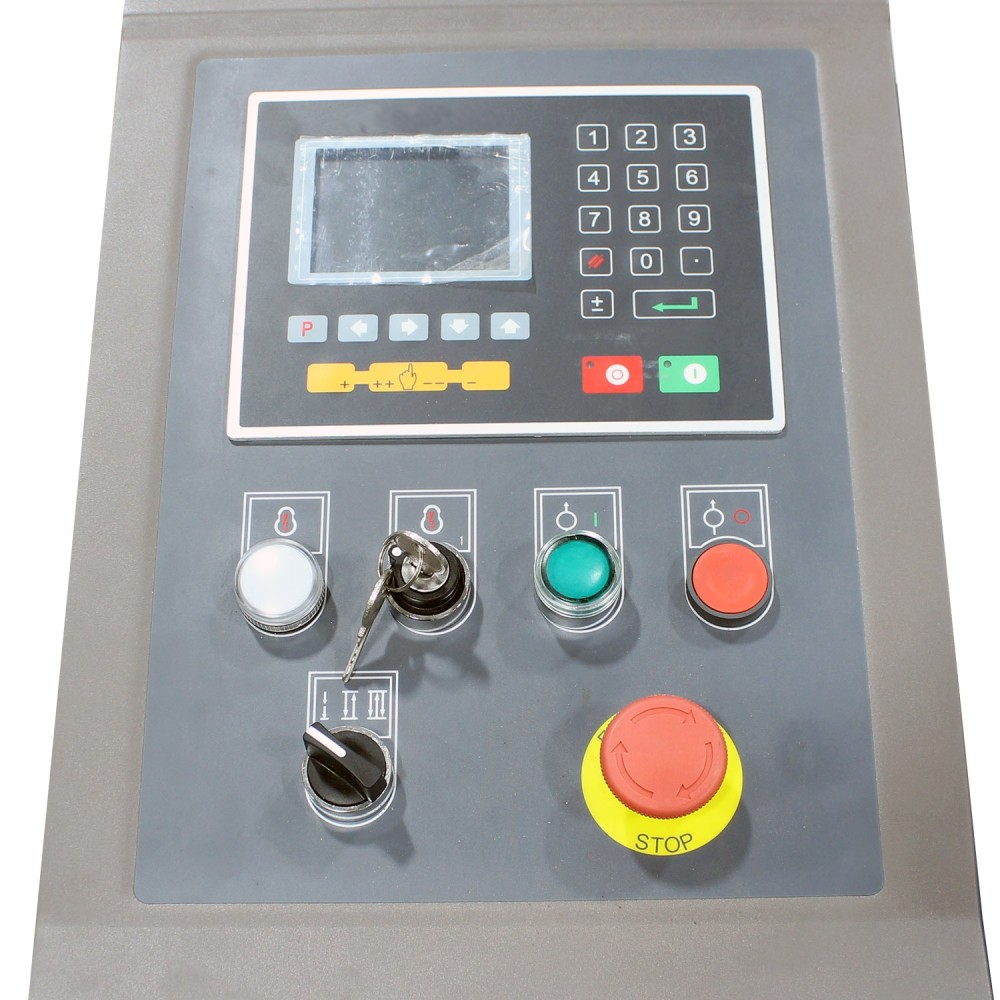

Comes standard with 2 axes of control – stroke and back gauge distance, Simple controller is so intuitive that you could train someone to use it in 5 minutes
Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production
Bending is accurate to +/- 0.01 mm, ensuring that parts come out right the first time
Baileigh BP-7098CNC 220V 3 Phase 98 In. 70 Ton 2-Axis Programmable Hydraulic Press Brake
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1000836
Assembled Weight (lbs)
9300
Bending Length Capacity (in)
98
Country of Origin
Taiwan
Material
Steel
Package Contents
70 Ton Hydraulic Press Brake
Package Depth
135
Package Height
90
Package Weight
9300
