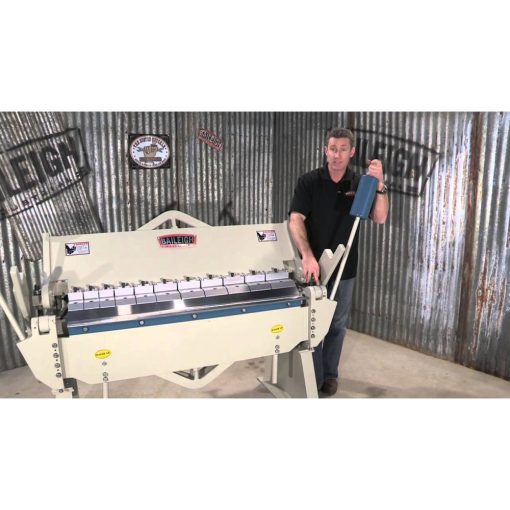

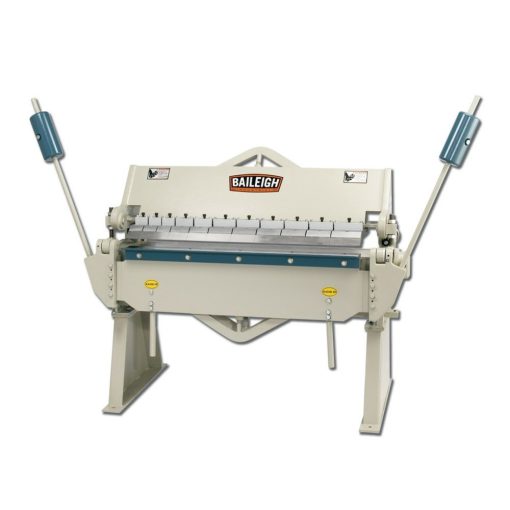

Baileigh BB-4812 Mild Steel Finger Brake 48″ 12 Gauge
Built to offer years of service, the BB-4812 manual sheet metal bender is one of the most powerful manual finger Brakes on the market. With its thick steel plate construction, this small metal brake weighs just under 2000 Lbs.
Features
Bends 12 gauge (or lighter) mild steel, 4 Ft. (48 In.) long, Maximum bend angle of 135 Deg
Compact size makes a great fit for tight floor plans
Includes 11 hardened and polished 3-piece fingers of varying lengths (3 at 3 In., 2 at 4 In., 5 at 5 In.,1 at 6 In.), You can make many different box sizes
Up to 6 In. box depth, made possible by 3-piece design
2 handwheels adjust the gap for varying material thickness
Comes standard with a stop rod system to help you make repeatable bends and simplify production runs
Heavy counterweights assist you with bending thick sheet metal-a relief for operators who frequently use the box brake for long periods of time
Massive torsion system, connected to the steel beam and leaf, keeps the beam from twisting at maximum capacity
Electro-welded steel framework, supported by solid steel adjustable trusses, prevents flexing and maintains accuracy
Baileigh BB-4812 48 In. 12 Gauge Mild Steel Capacity Heavy Duty Manually Operated Box & Pan Finger Brake
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1000404
Assembled Weight (lbs)
1690
Beam Adjustment
Yes
Bending Length Capacity (in)
48
Country of Origin
Taiwan
Gauge Capacity (ga)
12
Material
Mild Steel
Maximum Beam Adjustment (in)
1
Maximum Box Depth (in)
6
Number of Fingers
11
Package Contents
48 In. Box & Pan Brake, (11) Hardened & Polished Fingers
Package Depth
70
Package Height
42
Package Weight
1690
