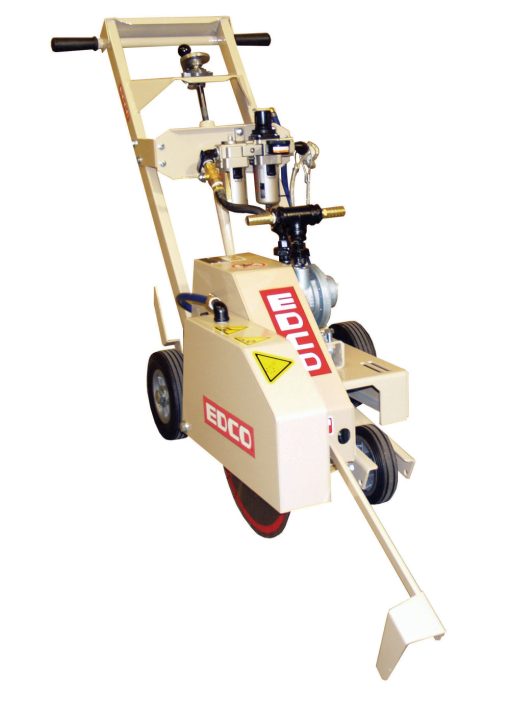

ASB-14 5 HP Pneumatic 14″ Walk-Behind Saw
Walk-Behind Saws cut depths varying between 1” to 6 ¾” and are used for trenching, utility installation, crack repair, and other short-run sawing applications.
Features
Gasoline, electric and air-power options
Up-cut blade rotation provides level surface at the base of the cut
Vacuum port
Heavy-duty, 7-gauge steel frame & undercarriage eliminates bending and vibration
Optional air motor comes fully equipped with lubricator, moisture seperator and a convenient, handle-mounted on/off valve (Requires 160 CFM at 90 PSI)
**Vac-port blade guard optional
Specifications
Acme Tools Brand Name
EDCO
Acme Tools Part Number
47200E
Arbor Size
1 in
Arbor Size (in)
0
Assembled Depth (in)
49
Assembled Height (in)
38
Assembled Weight (lbs)
160
Assembled Width (in)
23.5
Blade Diameter (in)
14
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Country of Origin
United States
Engine Displacement (cc)
0
Engine Horsepower (hp)
5
Fuel Mix Ratio
0
Height (in)
38
Maximum Cutting Depth (in)
4.75
Maximum Flow Rate (gpm)
0
Package Contents
14″ Walk Behind Saw
Package Depth
49
Package Height
38
Package Weight
161
Package Weight (lbs)
161
Size
0 in
