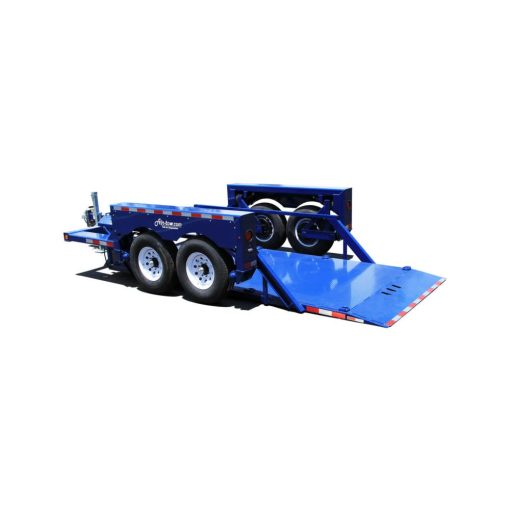

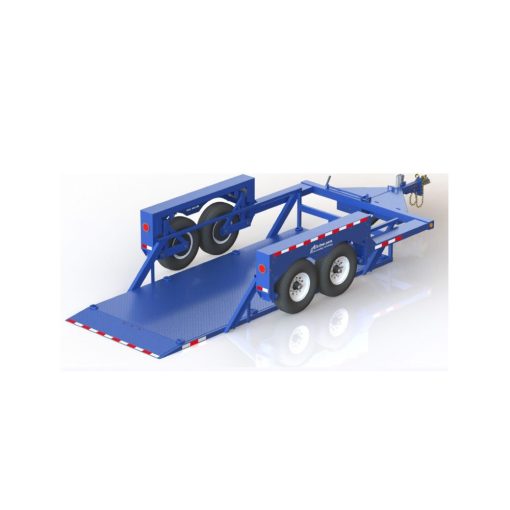

Air-Tow 16′ Hydraulic Drop Deck Tandem Axle Flatbed Trailer
The unique Air-tow flatbed uses a totally different concept to make loading easier and safer. The trailer deck remains completely level as it raises or lowers hydraulically in less than 30 seconds. At ground level, you simply drive your equipment onto the trailer. It is especially useful for equipment with poor traction or low ground clearance such as scissor lifts, sweepers, pavement rollers, etc. Air-tow eliminates the need for difficult tilt beds or dangerous loading ramps, making it a one-man job even in adverse weather conditions.
Features
8 Heavy-duty D-rings
Adjustable chain, adjustable coupler
Anti-theft switch, bright LED lights
Durable powder coat paint
Extra-wide deck, fenderless
Ground-level loading, heavy-duty diamond deck
Non-tilting deck, remote control
Rubber suspension, swing-arm axles, number of axles 2
17995 Lbs GVWR, 6 Ft. 3 In. Deck width
Accessories sold separately
Specifications
Acme Tools Brand Name
AIR-TOW TRAILERS
Acme Tools Heavy Equipment
true
Acme Tools Part Number
T16-14
Assembled Weight (lbs)
3995
Ball Size
2-5/16″
California Proposition 65 Warning Required
Yes
Country of Origin
China
Load Weight Capacity (lbs)
14000
Material
Steel
Package Contents
Tandem Axle Flatbed Trailer
Package Depth
256.75
Package Height
48
Package Weight
3995
Tire Size
17 In. – 16 Ply
Width (ft)
8.5
