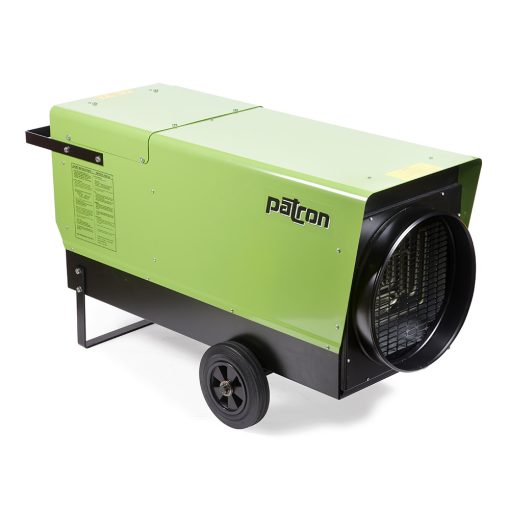

60kW 480V Portable Electric Space Heater, 205,000 BTU/Hr
The Patron 60E is an electric powerhouse in any demanding application. Suitable for a magnitude of situations, it will endure the harshest of applications, all while pumping out over 136,000 btu/hr. It features transport wheels and a rear lifting handle, making it extremely portable, as well as a 14″ duct adapter for areas and sites in need of specific heat distribution. The 60E runs off 3-phase 480V power and pulls 75 amps. It produces hot, clean air and blows it over a very large area with a powerful 1765 cfm fan.
Features
Three Heat Output Modes
205,000 BTU/Hr (High) / 164,000 BTU/Hr (Medium) / 82,000 BTU/Hr (Low)
For heating, drying, and ventilating
Integrated ambient thermostat from 32°F – 100°F
Overheat protection at 104°F
Durable steel casing with powder coating
Stainless jacketed heating coils
Fast, high temperature rise with uni-directional fan
User-friendly and proven reliability
Specifications
Acme Tools Brand Name
PATRON
Acme Tools Part Number
60E
Adjustable Thermostat
No
Air Volume (CFM)
1,765
Assembled Weight (lbs)
125
Automatic Shut-Off
Yes
BTU Heat Rating
205,000
California Proposition 65 Warning Required
Yes
Cord Length (in)
N/A
Country of Origin
United States
Heater Type
Industrial
Ignition Source
Electric
Indoor / Outdoor
Indoor
Package Contents
(1) MODEL 60E 60kW 480V Electric Heater, (1) Owners Manual
Package Depth
46
Package Height
25
Package Weight
125
Package Weight (lbs)
125
Portable Heater
Yes
Thermostat
Yes
Tip-Over Safety Switch
No
Variable Speed
No
Voltage
480
