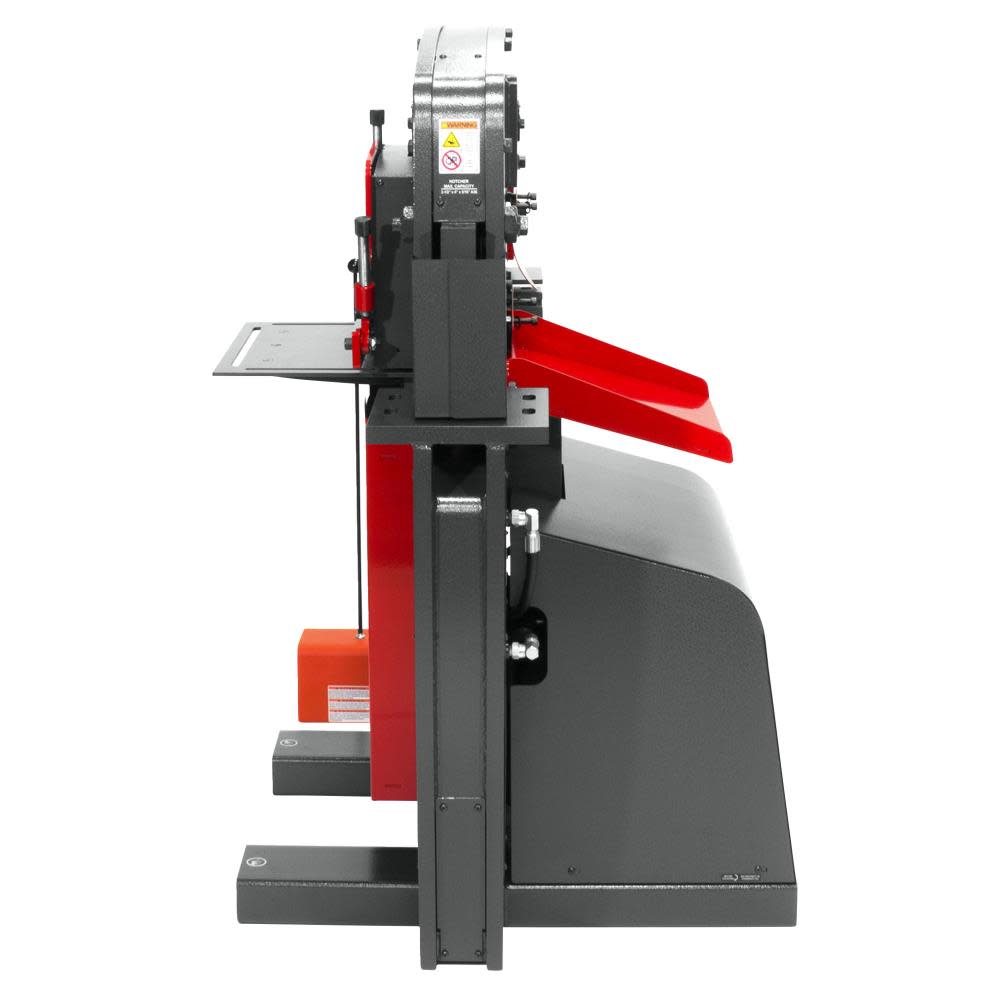

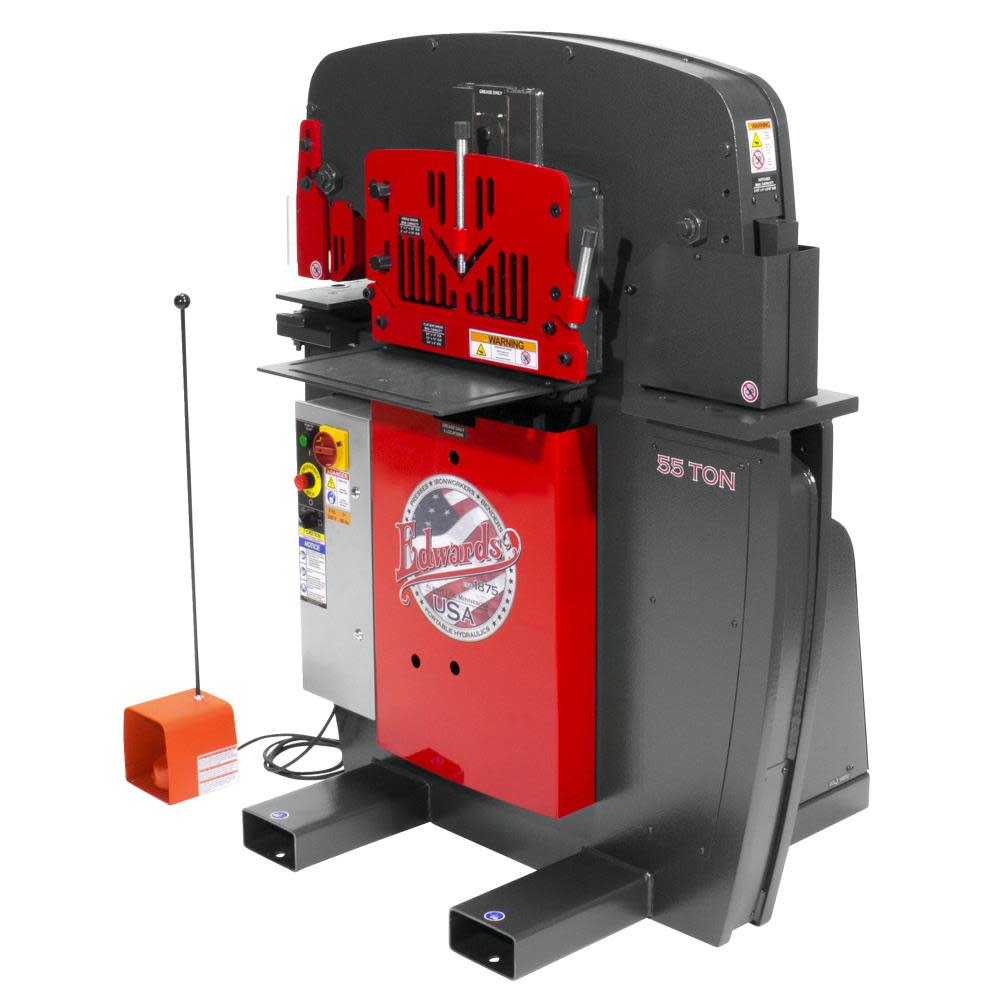

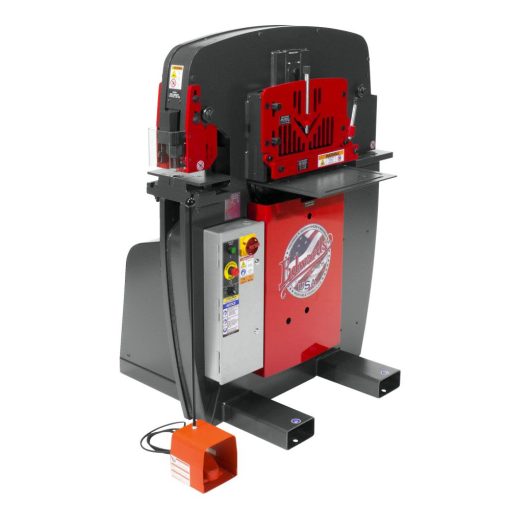

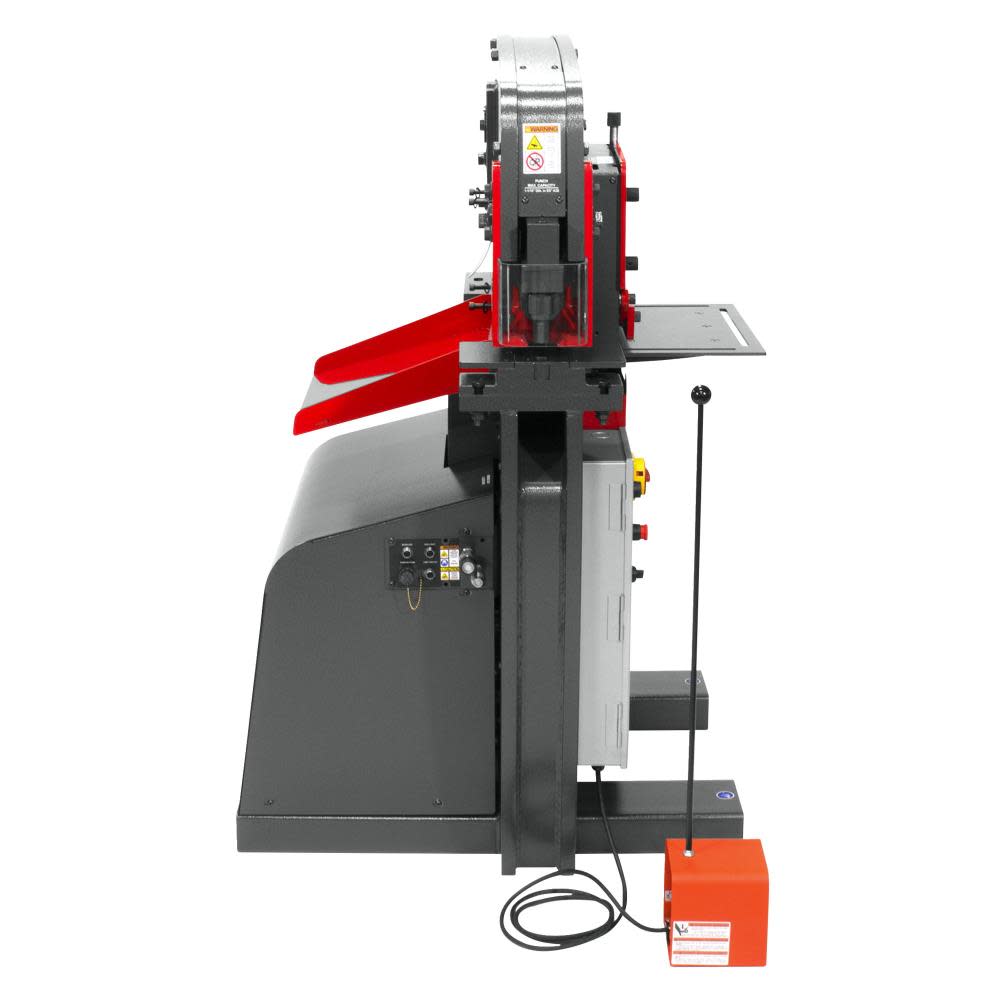

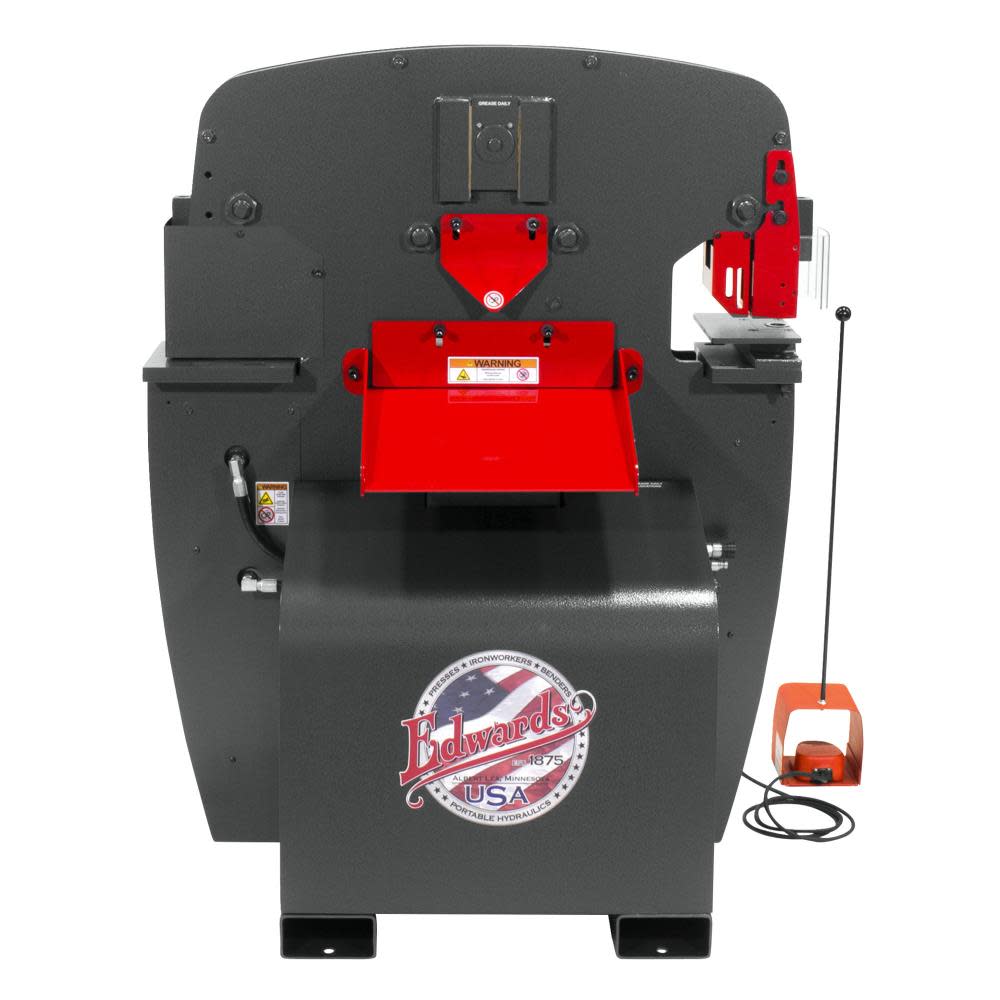

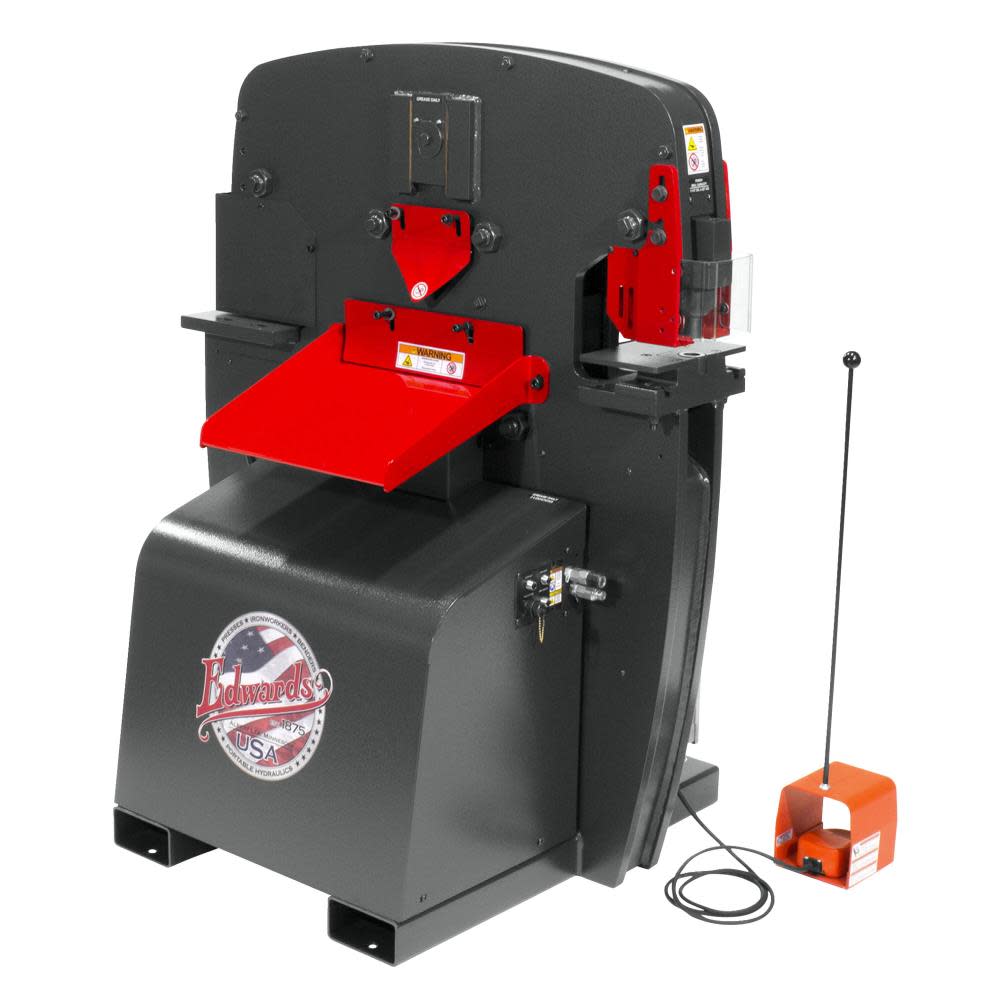

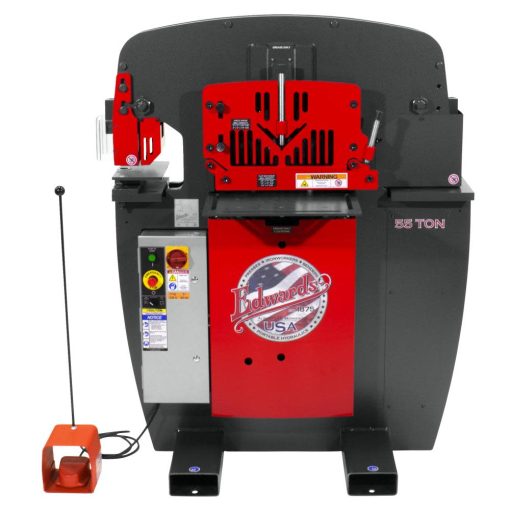

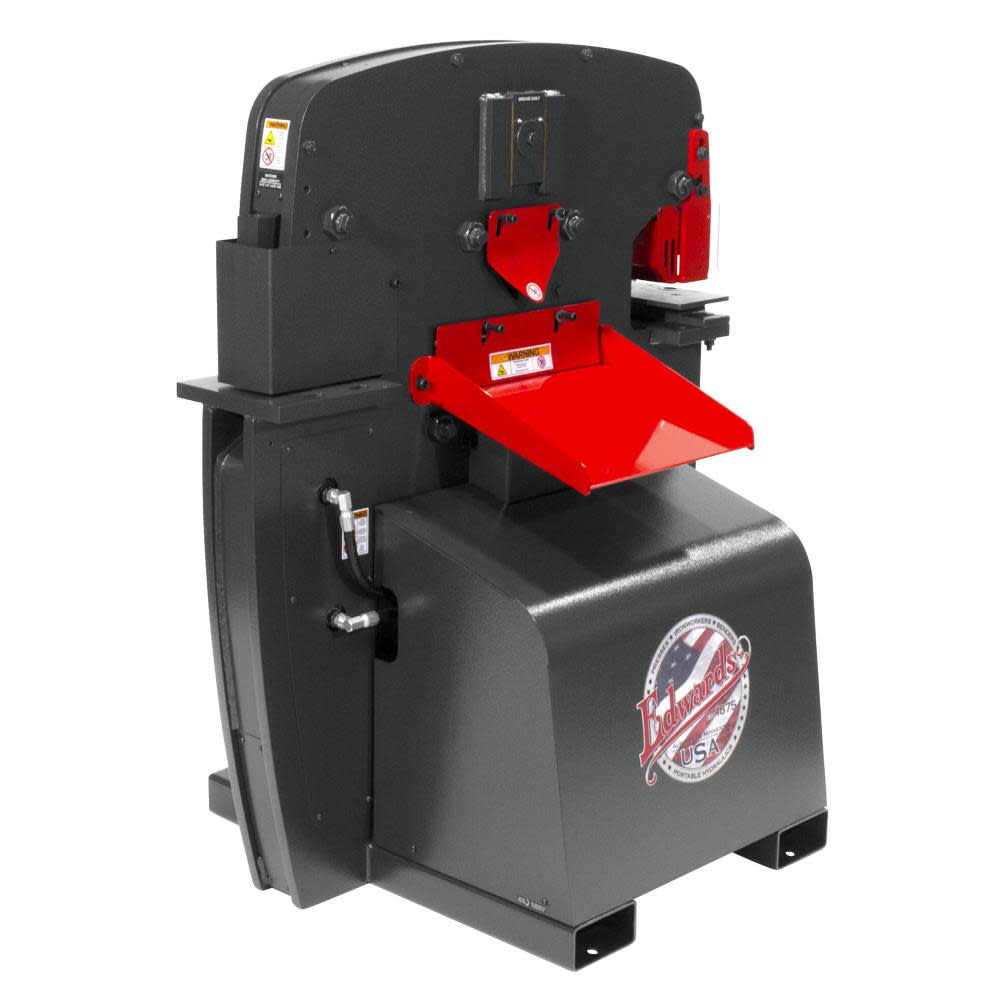

55 Ton Ironworker 3 Phase 460 Volts
The Edwards 55 ton ironworker is well suited to fit the needs of any dab shop, large or small. Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories.
Features
Four available workstations
Universal open tooling station
Electric stroke control
ANSI B11.5-1988R(02) compliant
ETL/UL approved controls
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW55-3P460
Amperage (A)
14
ANSI Safety Listing
Yes
Assembled Weight (lbs)
2480
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Country of Origin
United States
CSA Certified
No
ETL Listed
Yes
Horsepower (hp)
5
Internal Supplier Part #
IW55-3P460
Internet Product Code (IPC)
C4ED374B443
Manufacturer Warranty
1 year warranty
Maximum RPM
1725
Motor Horsepower (hp)
5
Motor Voltage (V)
230
Overall Height (in)
55.25
Overall Length (in)
45.0
Overall Width (in)
44
Package Contents
Notcher
Package Depth
45.0
Package Height
62.0
Package Weight
2480.0
Package Weight (lbs)
2480
Phase
Three Phase
Reservoir Capacity (gal)
7
UL Listed
Yes
Voltage
230
Weight (lbs)
2480
