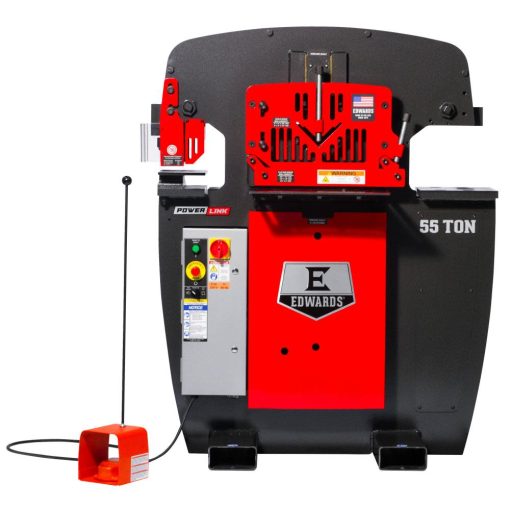

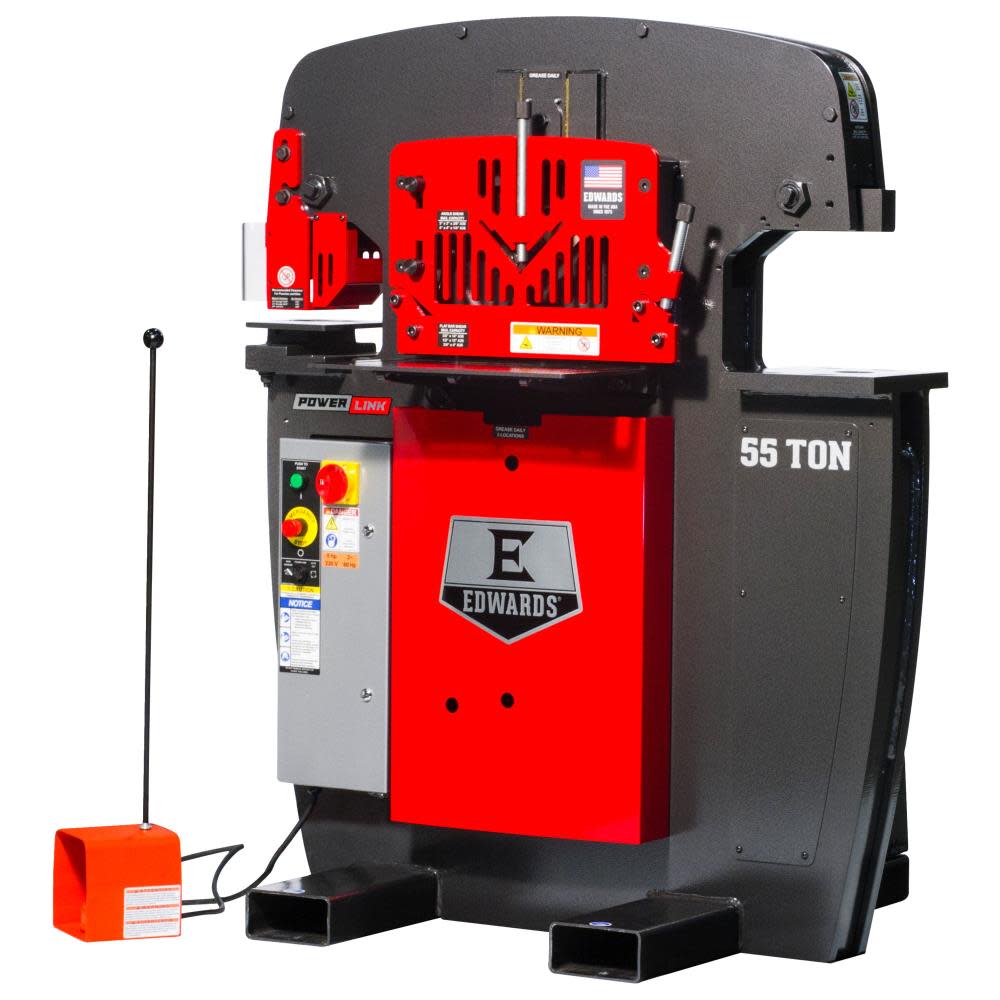

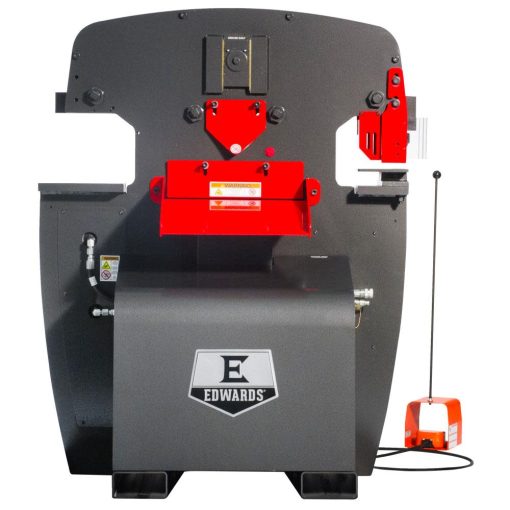

55 Ton Ironworker 3 Phase, 230v with PowerLink System
The Edwards 55 ton jaws ironworker is well suited to fit the needs of any FAB shop, large or small. Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories. The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
Our best seller
Four workstations: standard (4) – punch, flat bar shear, angle shear & coper notcher
9 additional attachments available to convert the punch workstation to your specific needs
ANSI B11.5 – 1988(02) compliant guarding
ETL/UL approved controls
Integrated e-stop, lock-out/tag-out
Optimized workstation heights for improved efficiency
Electric foot pedals with integrated jog control
Adjustable electric stoke control
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW55-3P230-AC500
Amperage (A)
14.0
ANSI Safety Listing
Yes
Assembled Weight (lbs)
2430.0
California Proposition 65 Warning Required
Yes
Color / Finish
Gray with Red guards
Country of Origin
United States
ETL Listed
Yes
Horsepower (hp)
5.0
Internal Supplier Part #
IW55-3P230-AC500
Internet Product Code (IPC)
9C6CB6061C8
Manufacturer Warranty
1 Year
Maximum RPM
1725
Motor Horsepower (hp)
5.0
Motor Voltage (V)
230.0
Overall Height (in)
62.0
Overall Length (in)
45.0
Overall Width (in)
51.0
Package Depth
45
Package Height
62
Package Weight
2480
Package Weight (lbs)
2480
Reservoir Capacity (gal)
7.0
UL Listed
Yes
Voltage
230
Weight (lbs)
2430.0
