Description
Description
55 Ton Ironworker 1 Phase 230 Volts
Our best seller
four available workstations
universal open tooling station
electric stroke control
ANSI B11.5-1988R(02) compliant
Jet/UL approved controls
the Edwards 55 ton jaws ironworker is well suited to fit the needs of any FAB shop, large or small. Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories. The optional hydraulic accessory pack allows your ironworker to act as a power source to our expanding line of innovative hydraulic accessory tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
Our best seller
Four available workstations
Universal open tooling station
Electric stroke control
E.S.C.
ANSI B11.5-1988R(02) compliant
Jet/UL approved controls

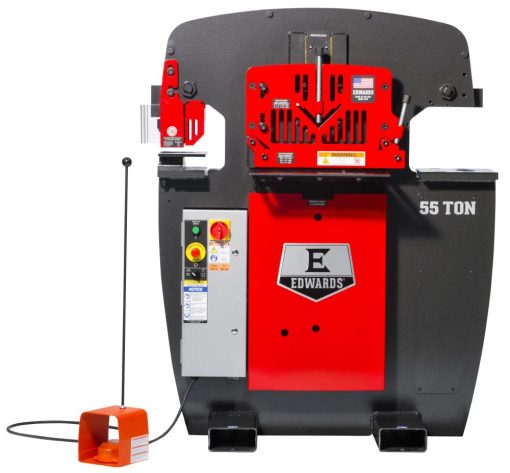

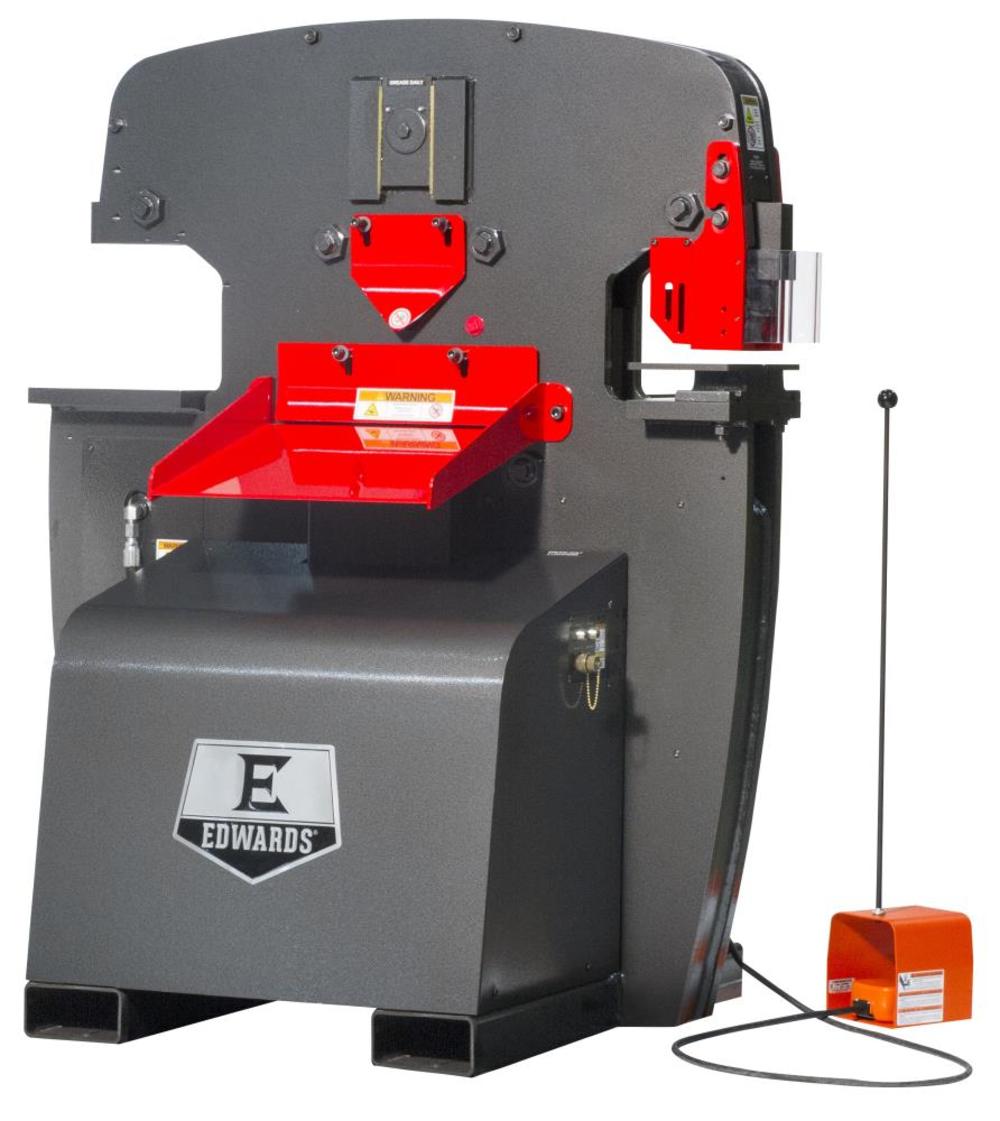

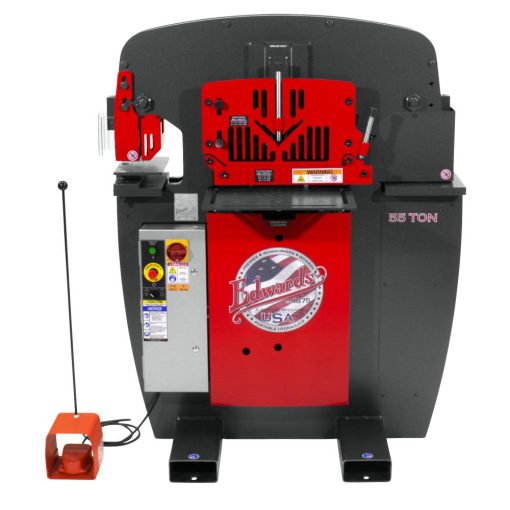

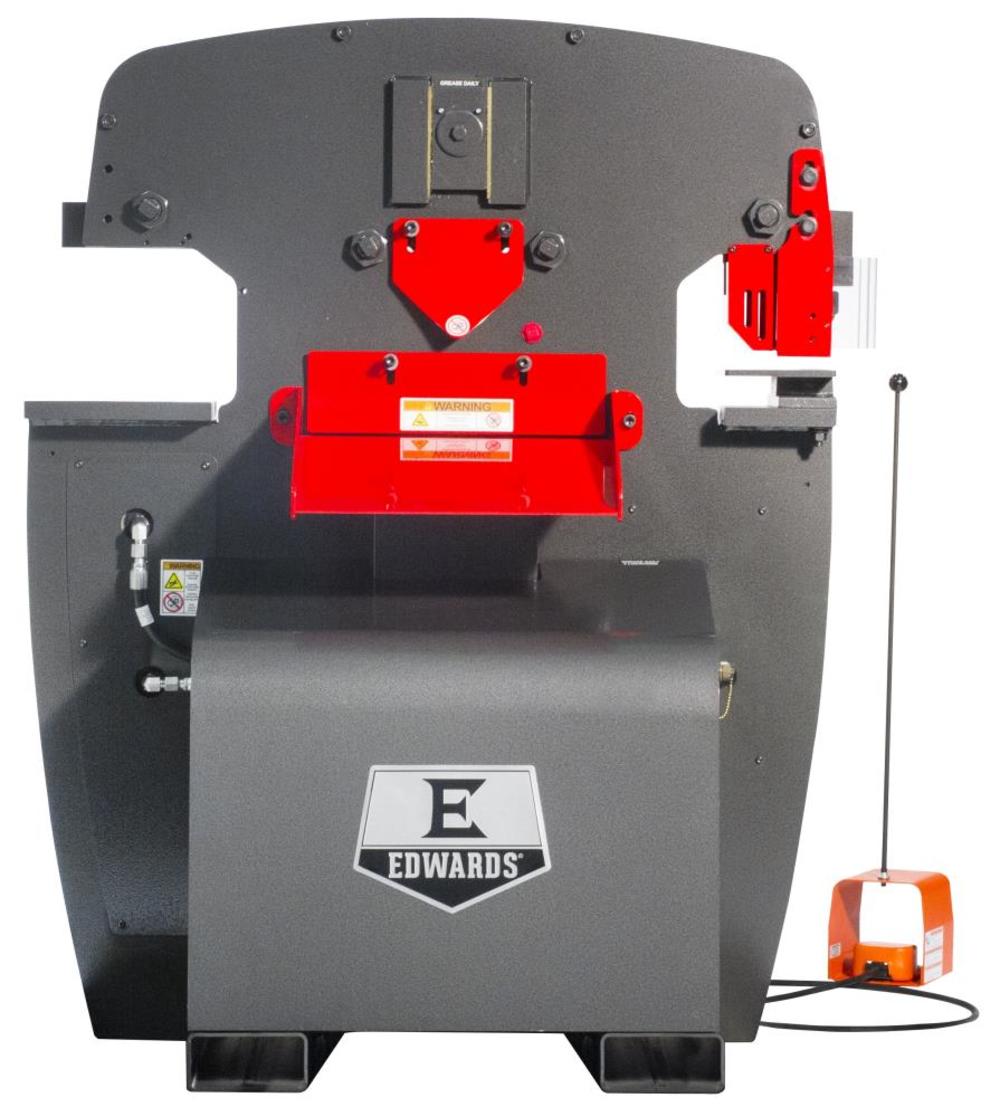

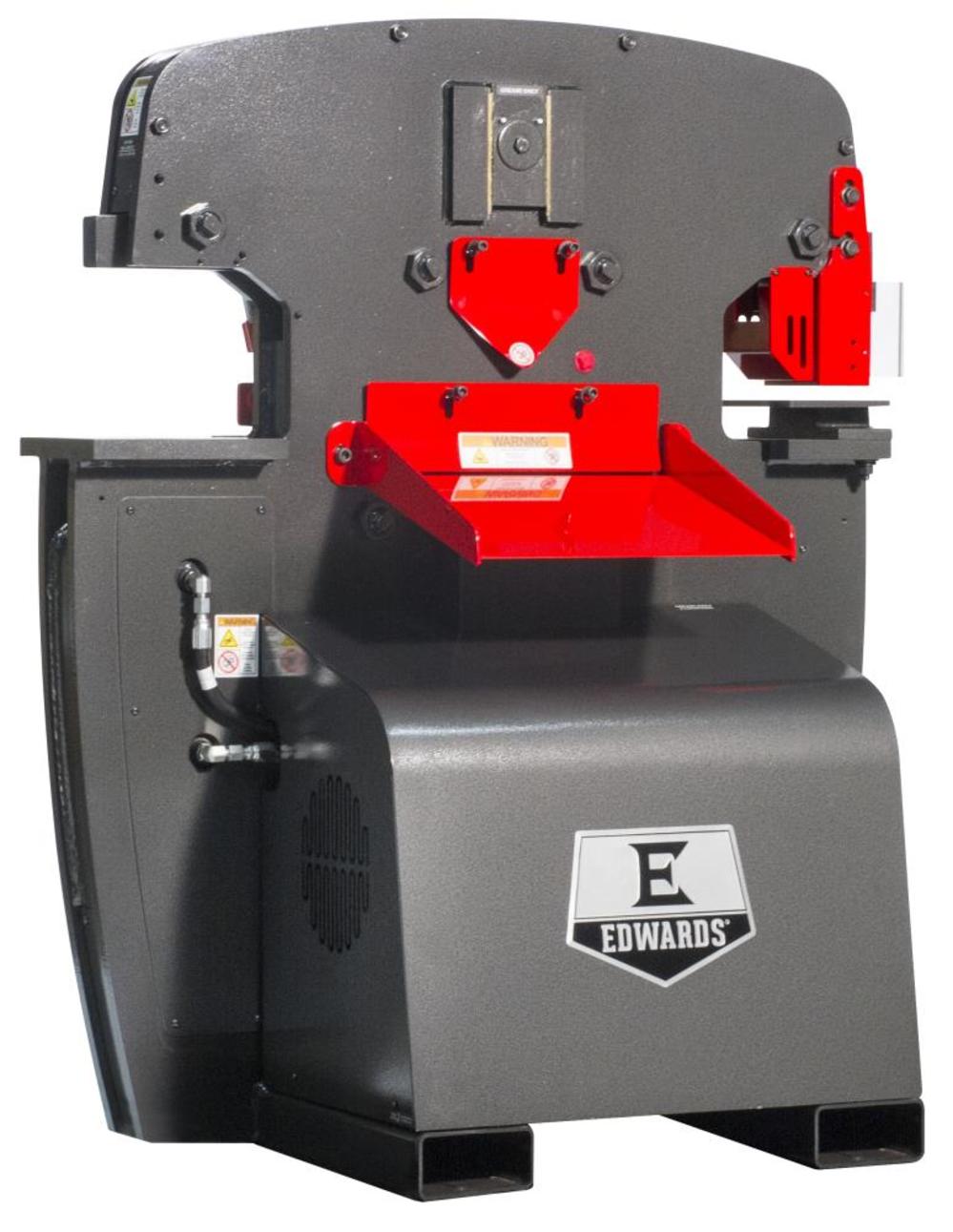

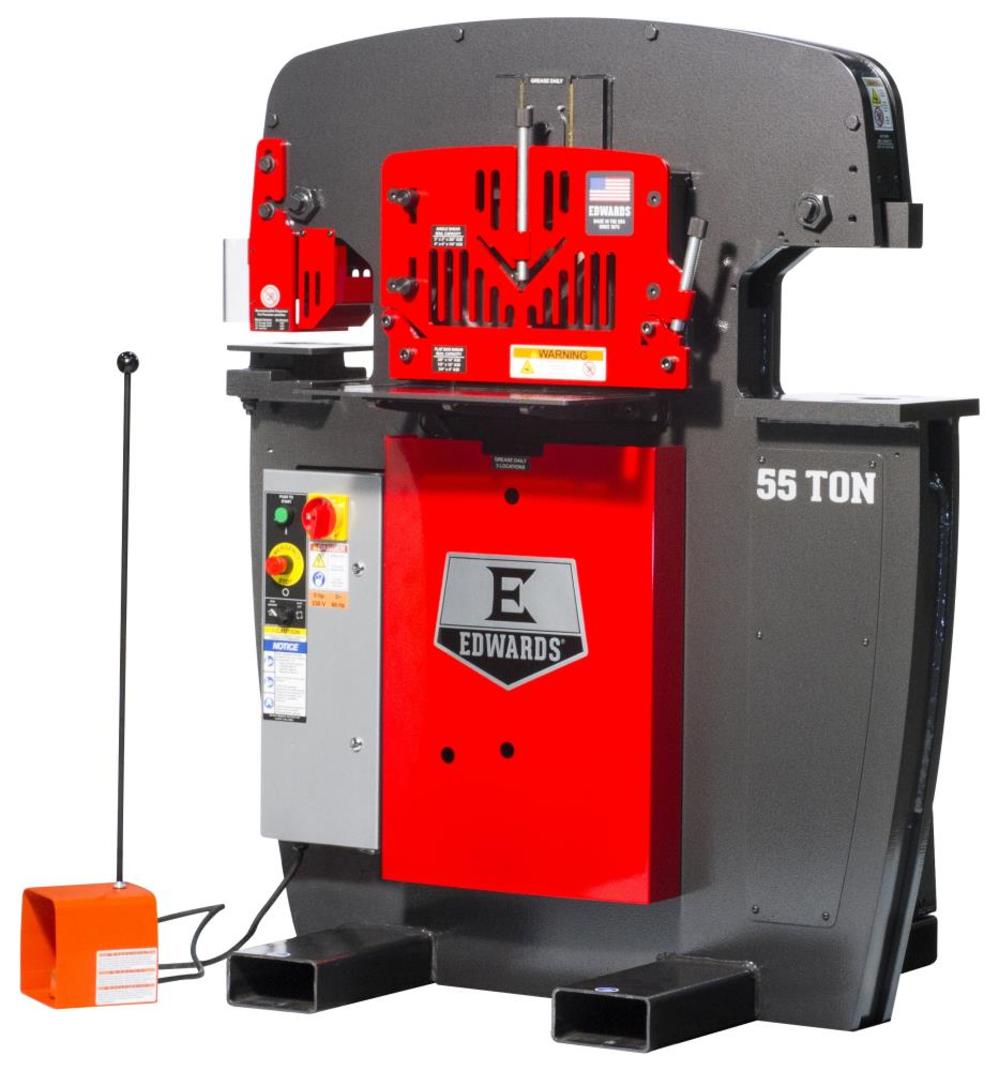

The Edwards 55 ton jaws ironworker is well suited to fit the needs of any FAB shop, large or small. standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories.
The optional hydraulic accessory pack allows your ironworker to act as a power source to our expanding line of innovative hydraulic accessory tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW55-1P230
Amperage (A)
14.0
ANSI Safety Listing
Yes
Assembled Weight (lbs)
2480.0
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Country of Origin
United States
CSA Certified
No
ETL Listed
Yes
Horsepower (hp)
5.0
Internal Supplier Part #
IW55-1P230
Internet Product Code (IPC)
C3057F826A7
Manufacturer Warranty
1 year
Maximum RPM
1725
Motor Horsepower (hp)
5.0
Motor Voltage (V)
0.0
Overall Height (in)
62.0
Overall Length (in)
45.0
Overall Width (in)
51.0
Package Depth
12
Package Height
36.5
Package Weight
2480.0
Package Weight (lbs)
2480
Phase
Single Phase
Reservoir Capacity (gal)
7.0
UL Listed
Yes
Voltage
230
Weight (lbs)
2480.0
