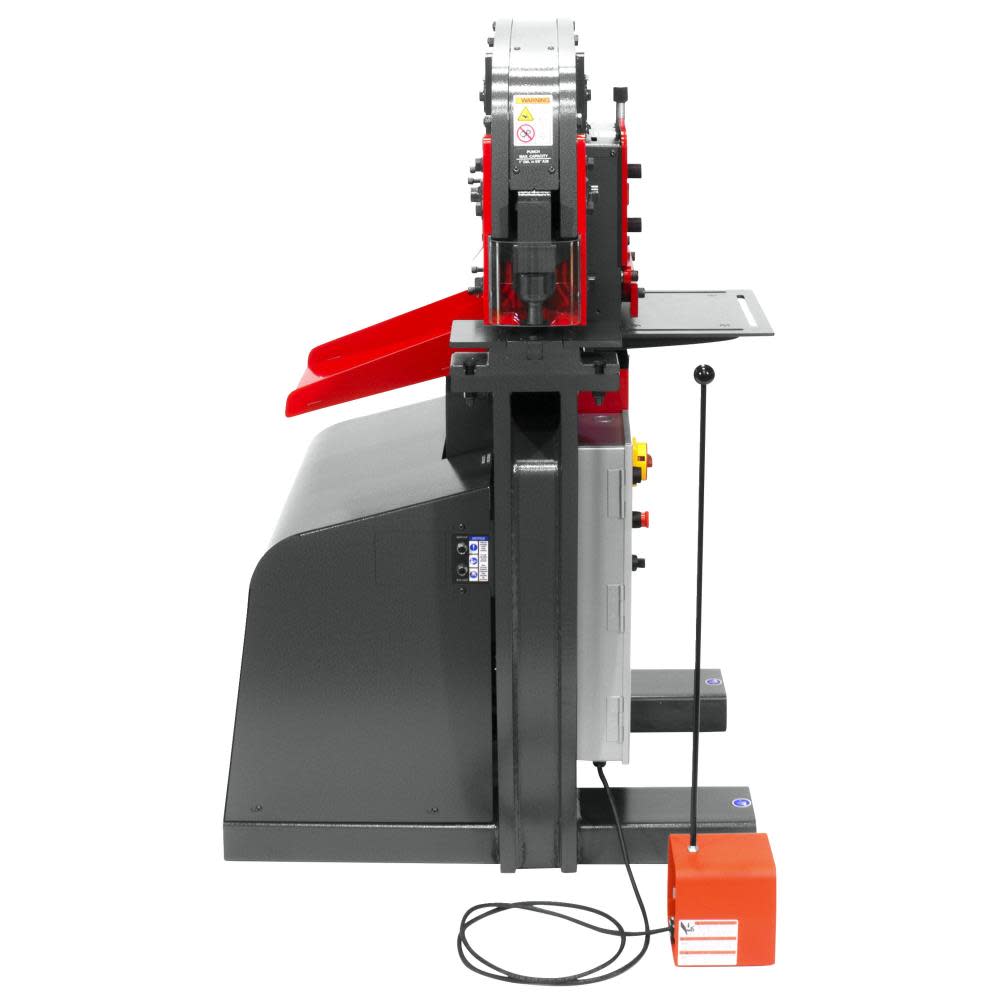

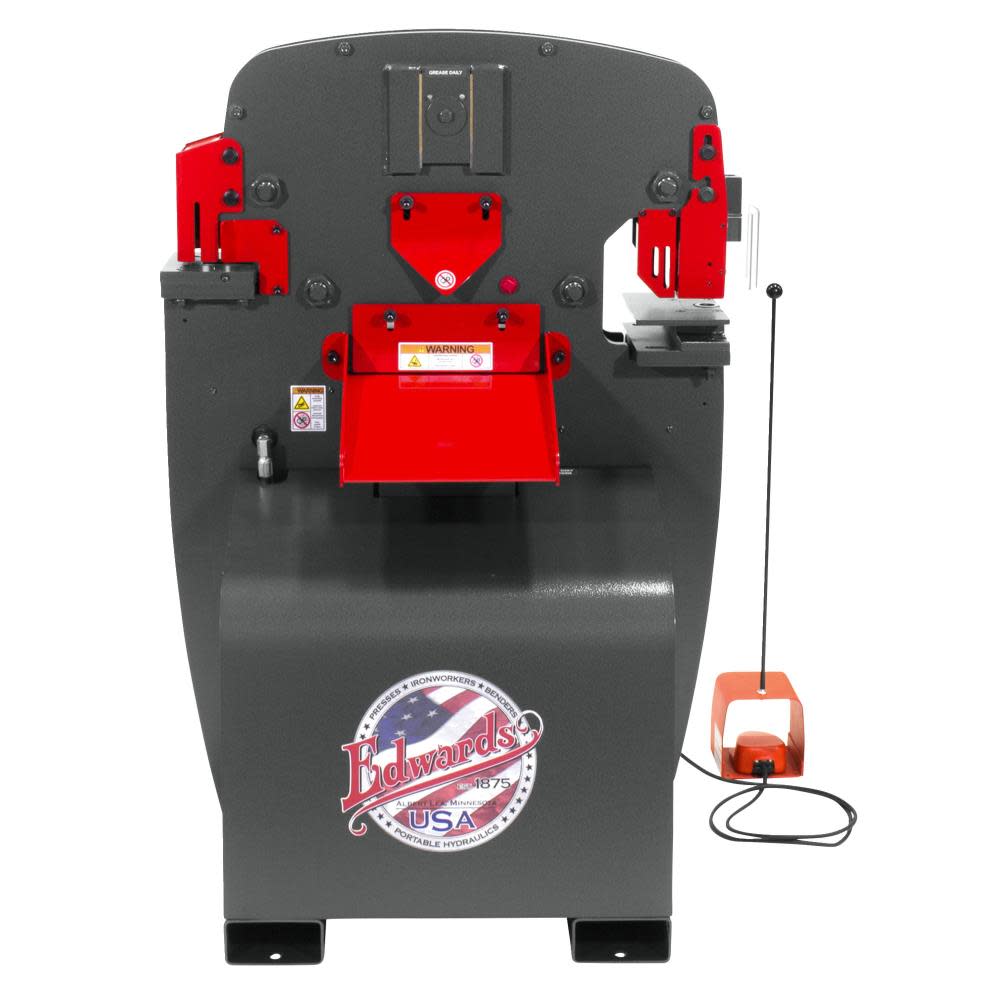

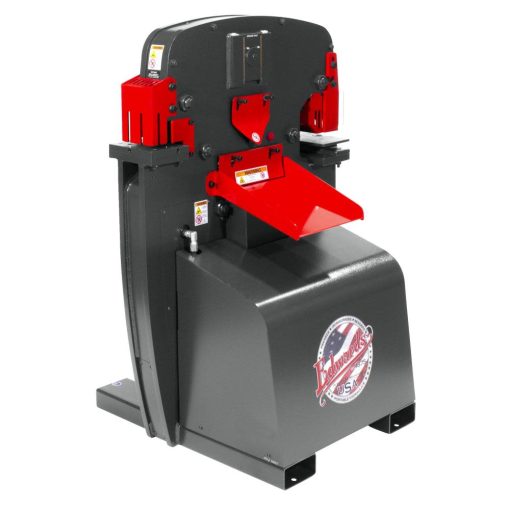

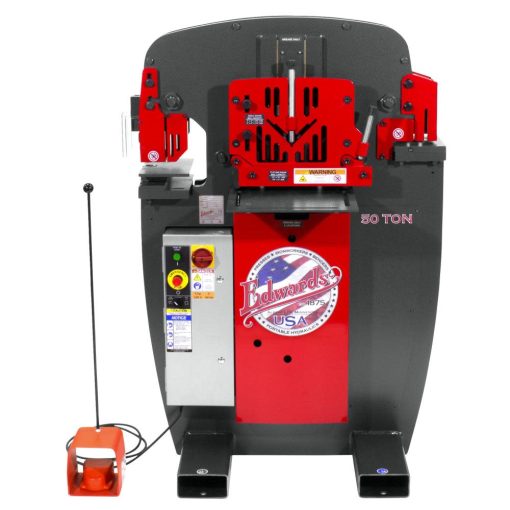

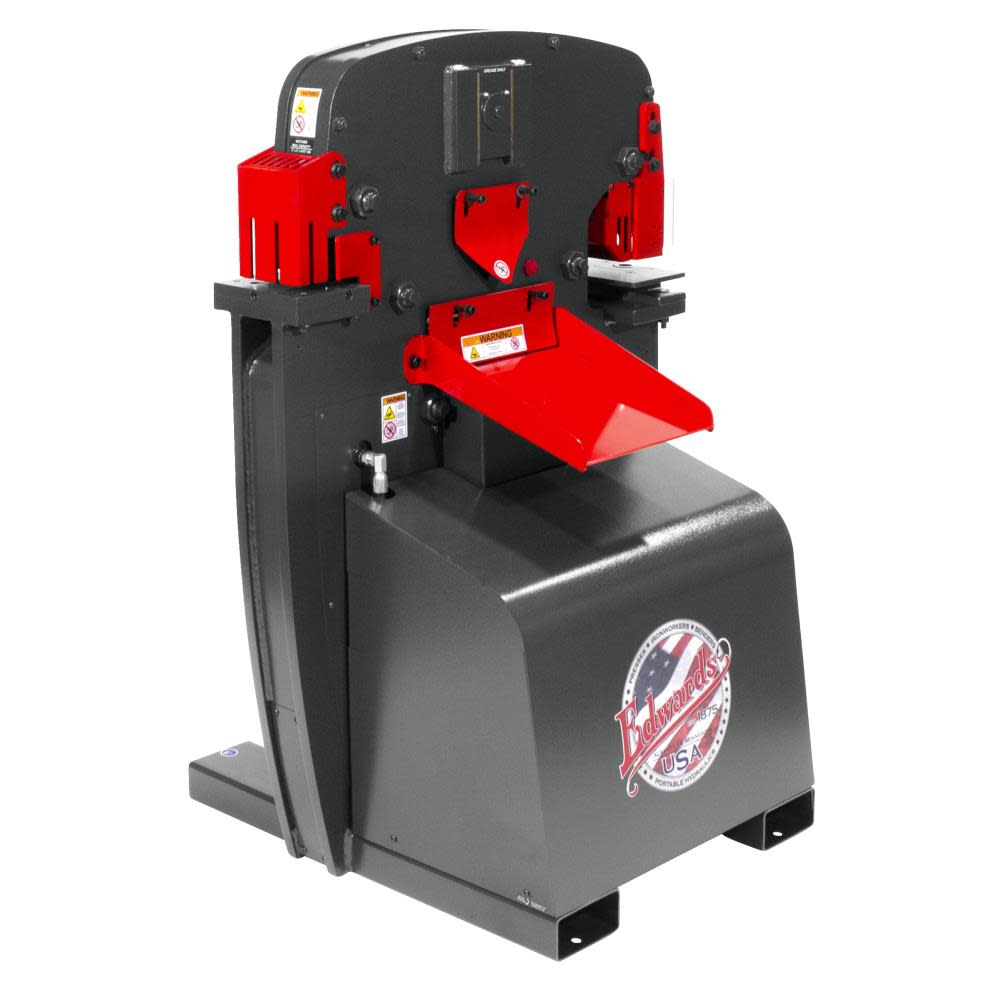

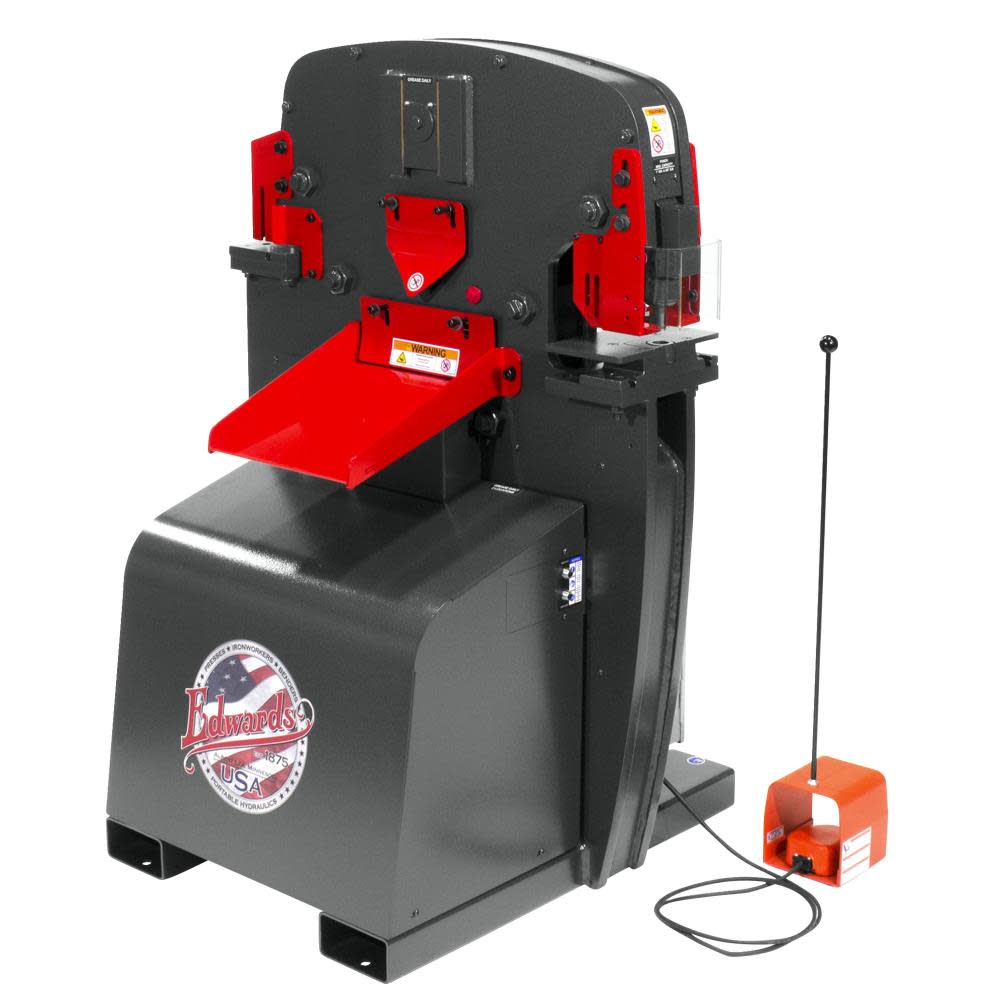

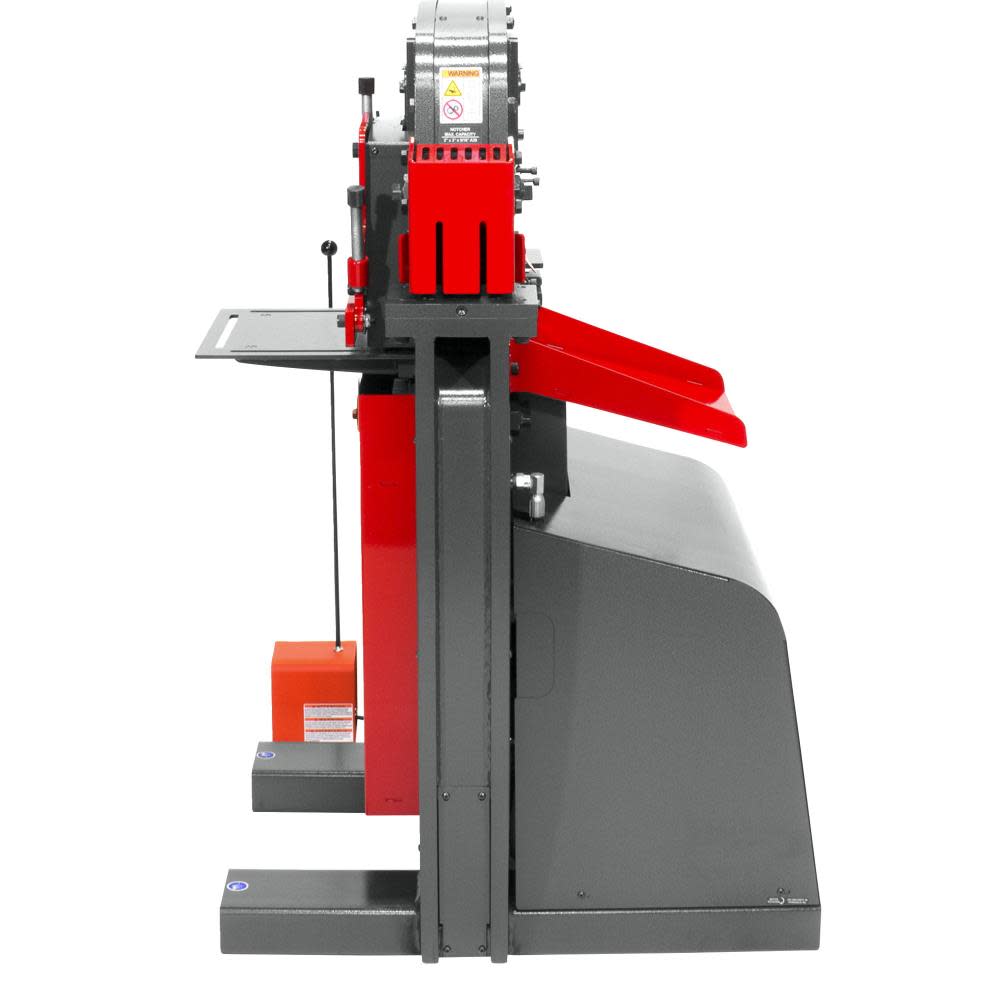

50 Ton Ironworker 3 Phase
The Edwards 50 ton ironworker is ideal for the small shop that needs a powerful, versatile tool for all kinds of tasks. Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a dedicated coper notcher station. The punch assembly quickly converts to an open tooling station designed to accept optional tooling accessories.
Features
Four available workstations
Punch assembly designed for optional tooling
Dedicated coper Notcher station
Electric stroke control
ANSI B11.5-1988R(02) compliant
ETL/UL approved controls
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW50-3P230-AC500
Amperage (A)
14
ANSI Safety Listing
Yes
Assembled Weight (lbs)
2020
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Country of Origin
China
ETL Listed
Yes
Horsepower (hp)
5
Internet Product Code (IPC)
897A084925D
Manufacturer Warranty
1 year
Maximum RPM
1725
Motor Horsepower (hp)
5
Motor Voltage (V)
230
Overall Height (in)
54.5
Overall Length (in)
45.0
Overall Width (in)
36.75
Package Contents
Notcher
Package Depth
45
Package Height
62
Package Weight
2020
Package Weight (lbs)
2020
Reservoir Capacity (gal)
7
UL Listed
Yes
UPC
731325556223
Voltage
230
Weight (lbs)
2020
