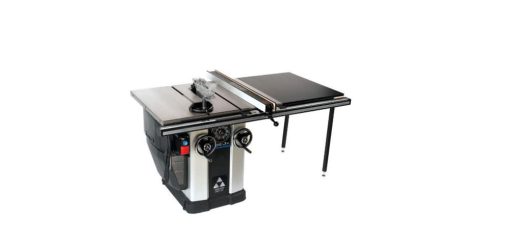

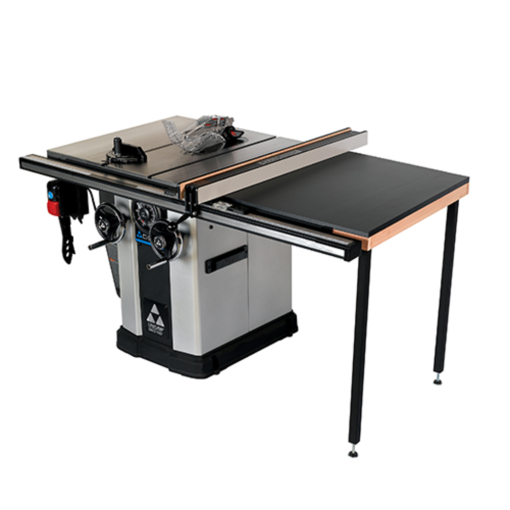

5-HP Motor 10 In. Unisaw with 36 In. Biesemeyer Fence System

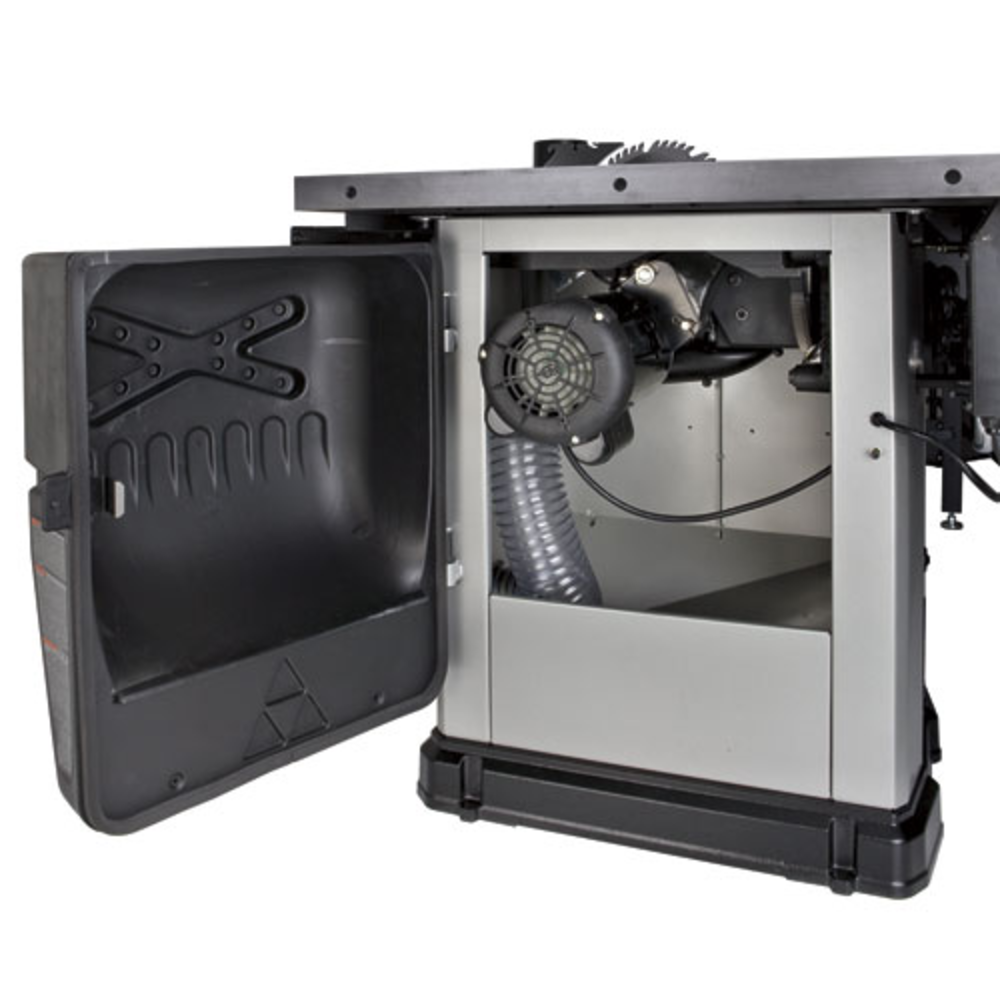

Get ready for something radically different. The legendary UNISAW has been redesigned from the ground up and is loaded with industry firsts. Like a conveniently located push-button arbor lock for quick, easy blade changes. Or a tool-free, split-design guarding system with a true rise and fall riving knife for through and non-through cuts. There’s even a BIESEMEYER Fence accurate to 1/64″ The bi-level dust extraction uses only 1 collector hose coupled with a sloping bottom cabinet used to navigate dust, and the new closed bevel gauge provides a sealed interior. This combination results in much higher level of dust collection.
Features
Single-Cast Trunnion System results in incredible vibration control providing continuous smooth operation and dependable accuracy
Dual Front Cranks make adjusting blade height and blade bevel easy, accurate, and repeatable in all your operations

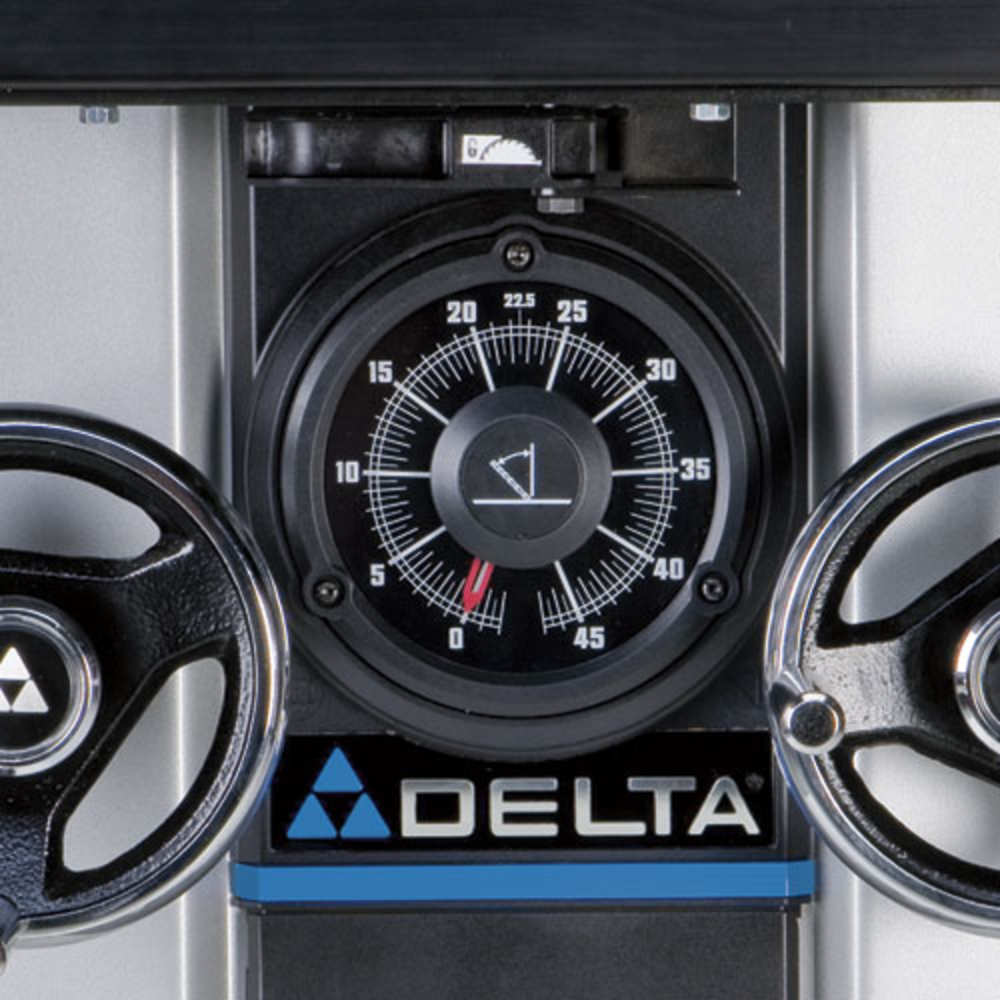

The Bevel Dial allows fine tuning of the blade bevel with ease and provides accuracy you can trust to within 1/4°
The Cabinet Construction consists of a large cast iron base providing stability and solid footing

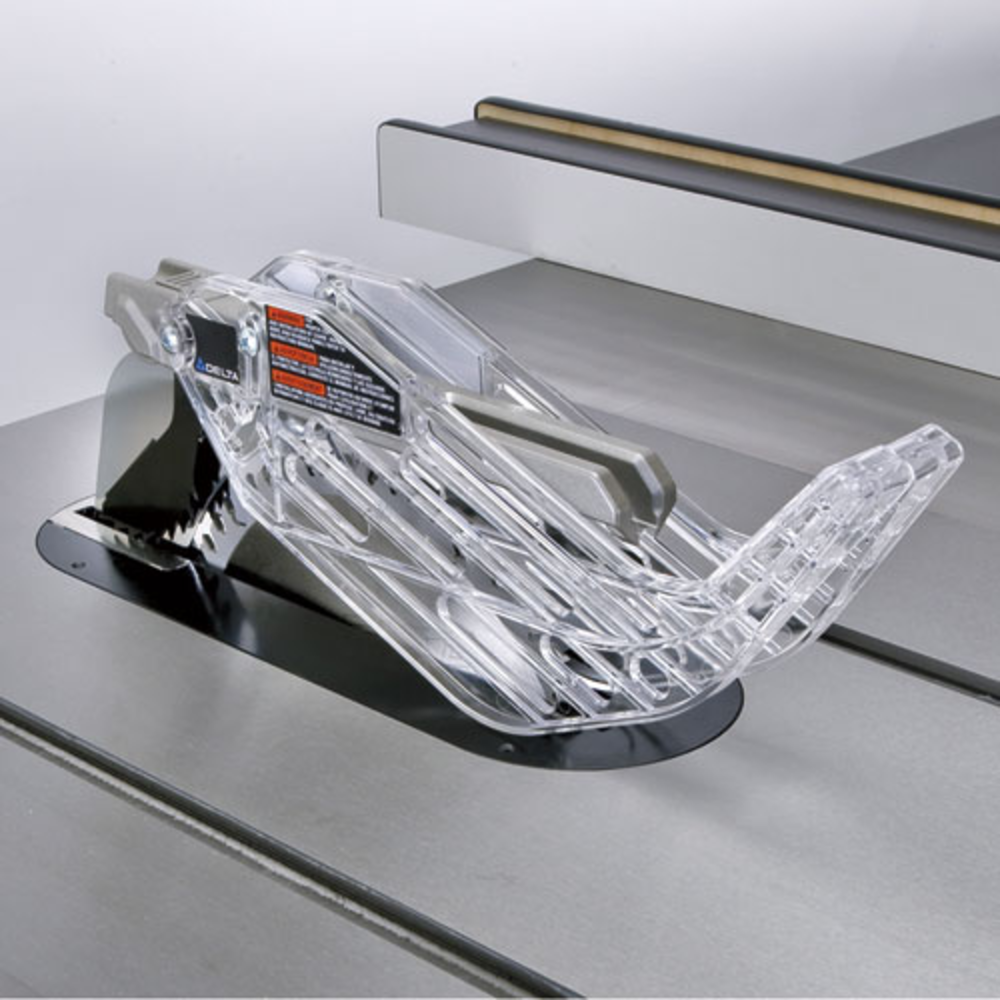

Tool-Free Split Guard design allows a true rise-and fall riving knife by using a lever on the front of the saw or inside the throat plate. You can then add the anti-kickback paws and guard to the riving knife without tools
Table Top provides more surface area to stabilize the product and offers outstanding smoothness and superior ease

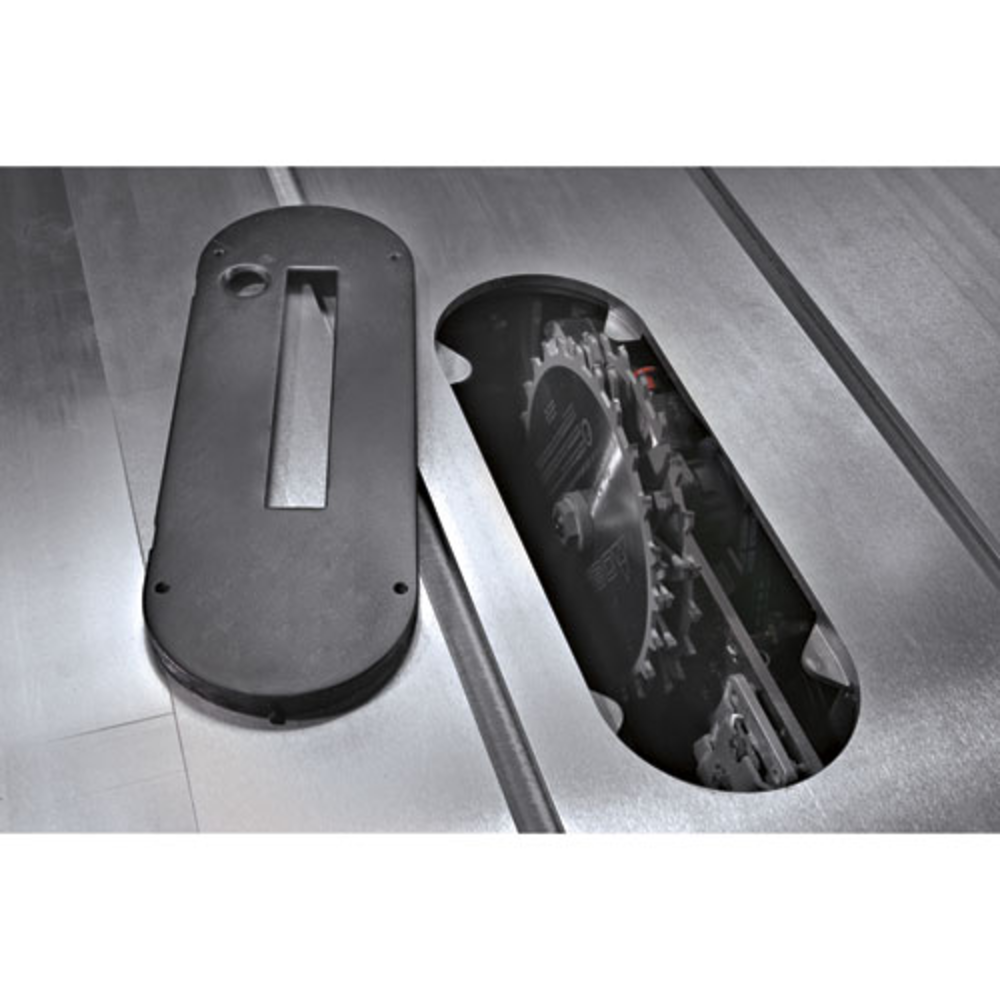

The Largest Blade Opening in class makes fine tuning your riving knife and blade changes easier than ever
The Push Button Arbor Lock makes the blade changing process simple and more natural with the use of only 1 wrench
Large, Easy to Access ON/OFF switch is multi-directional and can be activated from any angle
Specifications
Acme Tools Brand Name
DELTA
Acme Tools Part Number
36-L536
Amperage (A)
Var
Arbor Size (in)
5/8
Assembled Weight (lbs)
624
Blade Diameter (in)
10
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
United States
Diameter
10 in
Dust Port
Yes
Fence Included
Yes
Horsepower (hp)
5
Maximum Dado Diameter (In)
1.125
Package Depth
44
Package Height
90
Package Weight
636.8
Package Weight (lbs)
625
Size
5/8 in
Table Height (in)
35
Table Height From Floor (In)
35
UL Listed
Yes
Voltage
230
