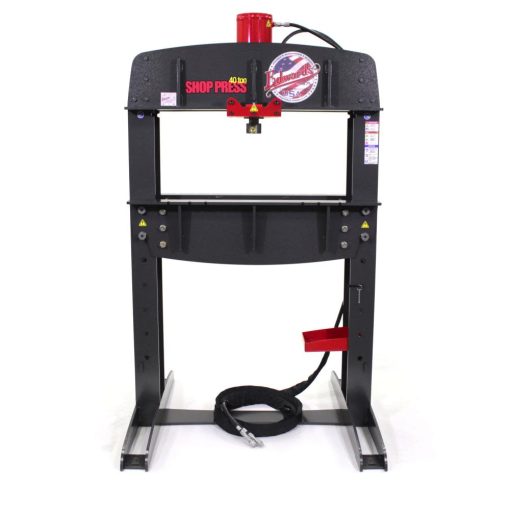

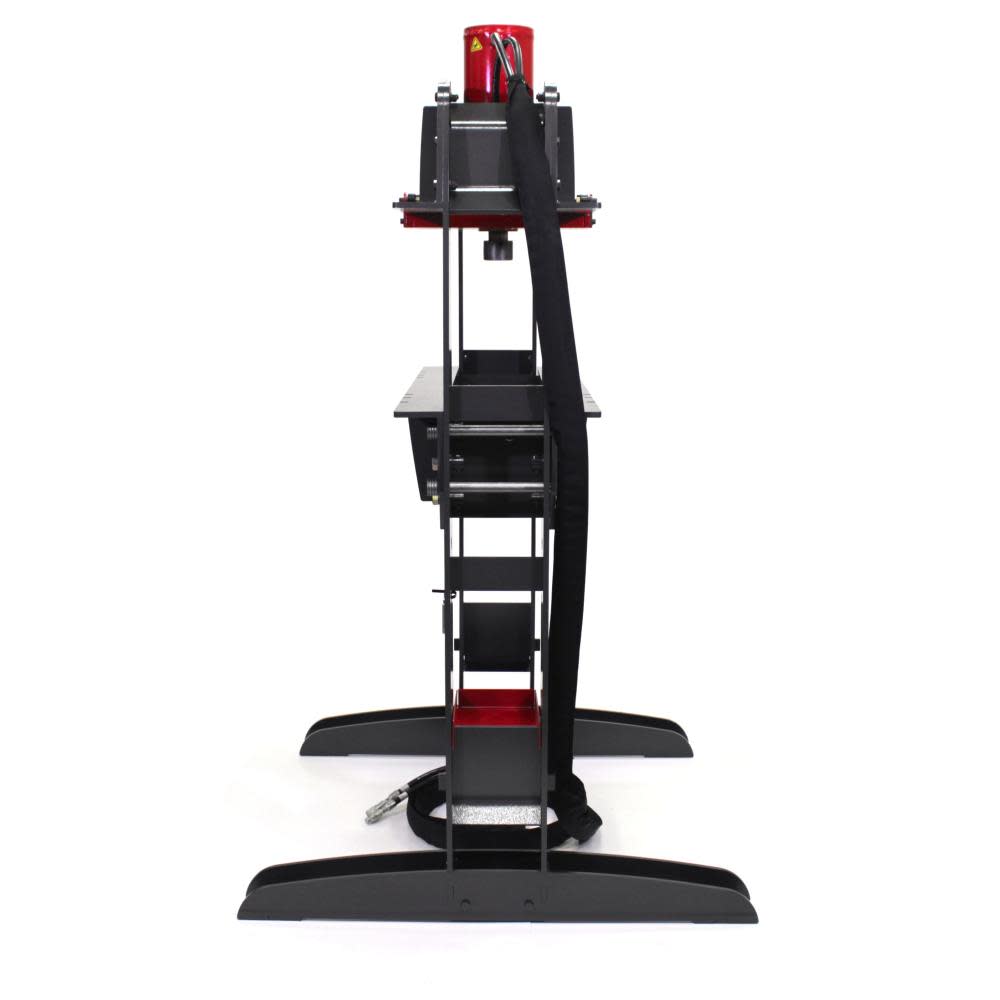

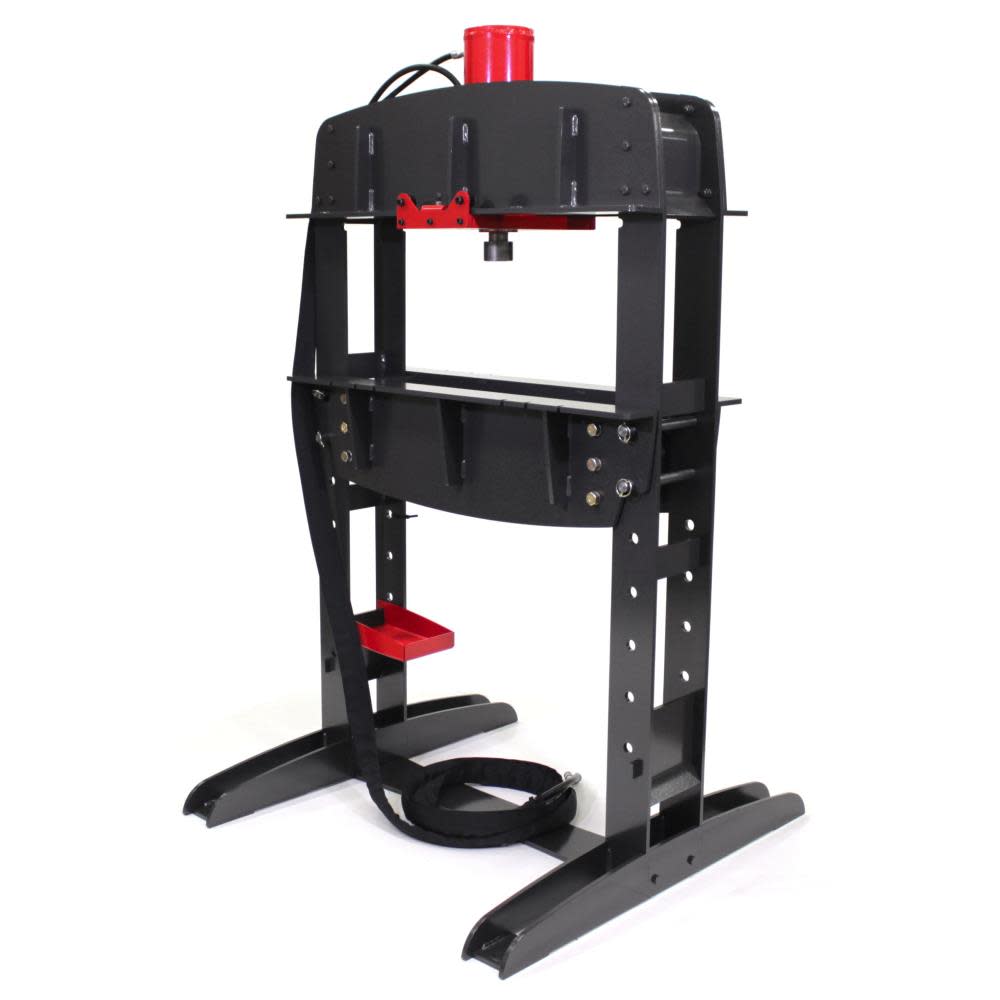

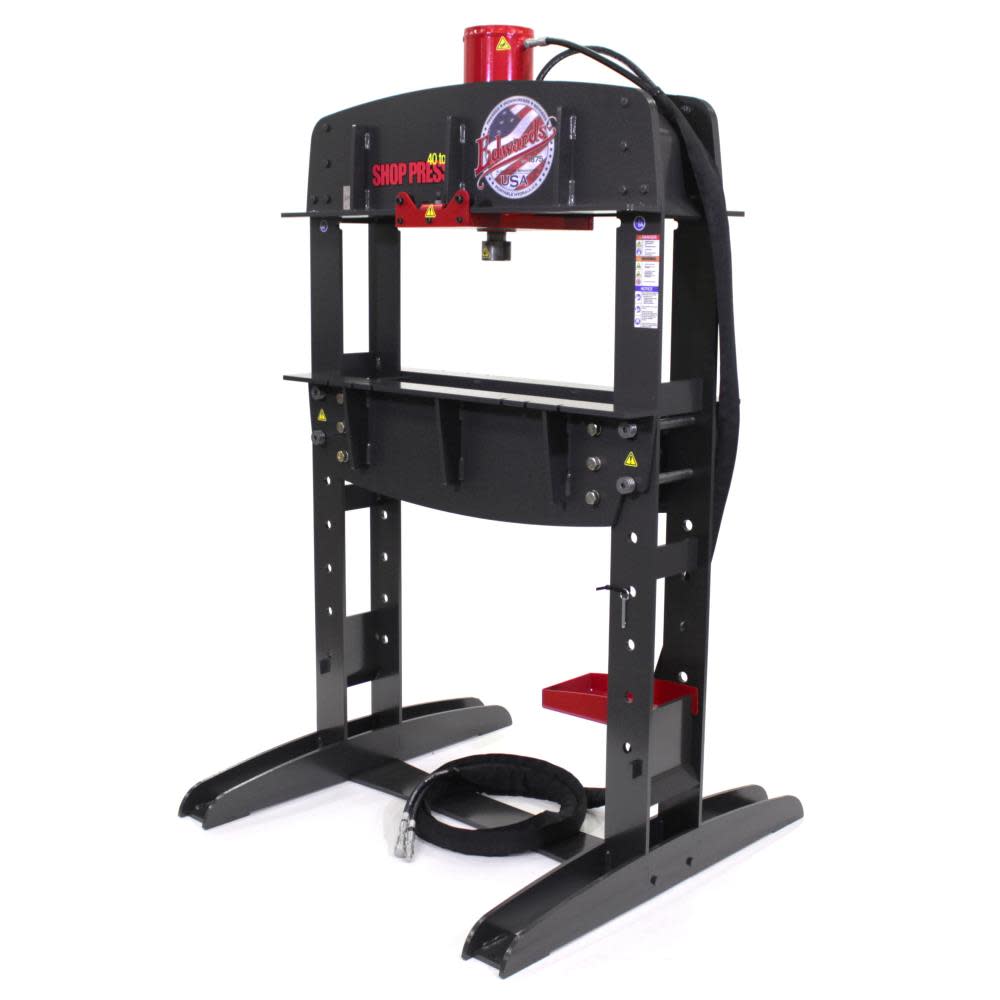

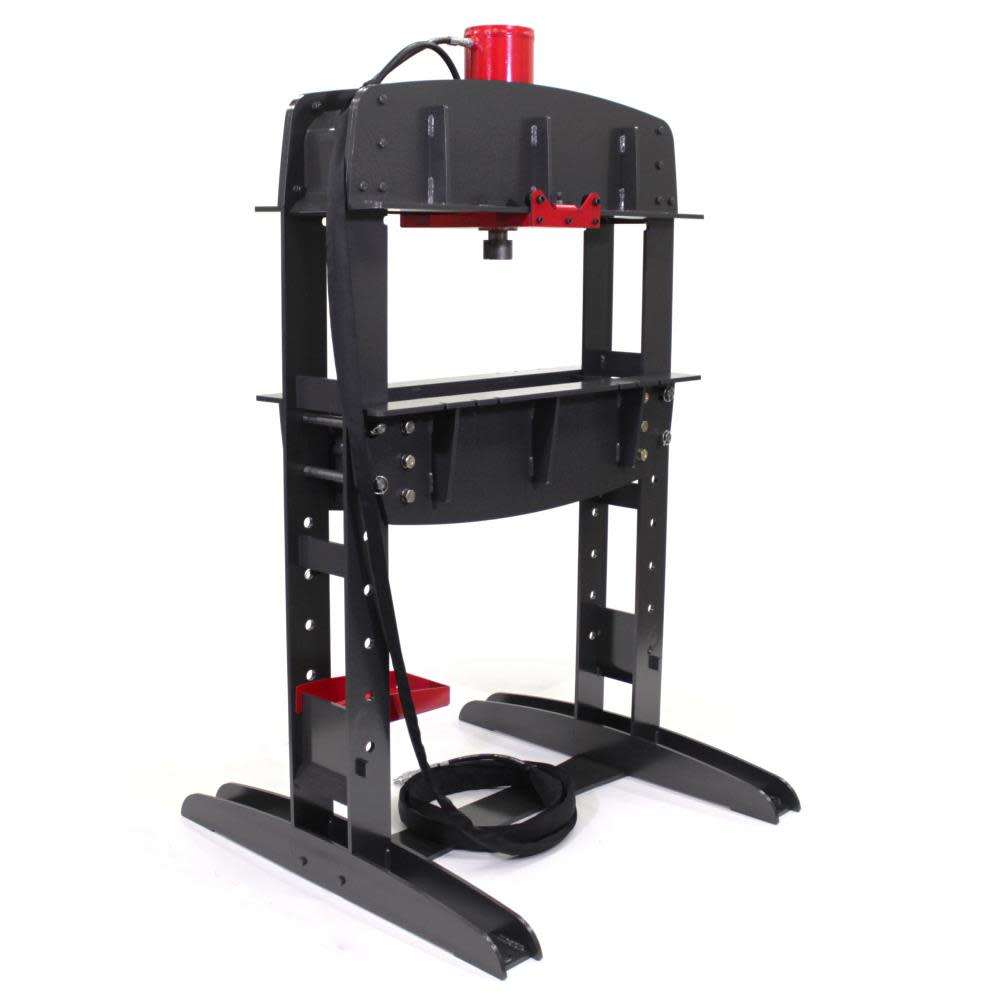

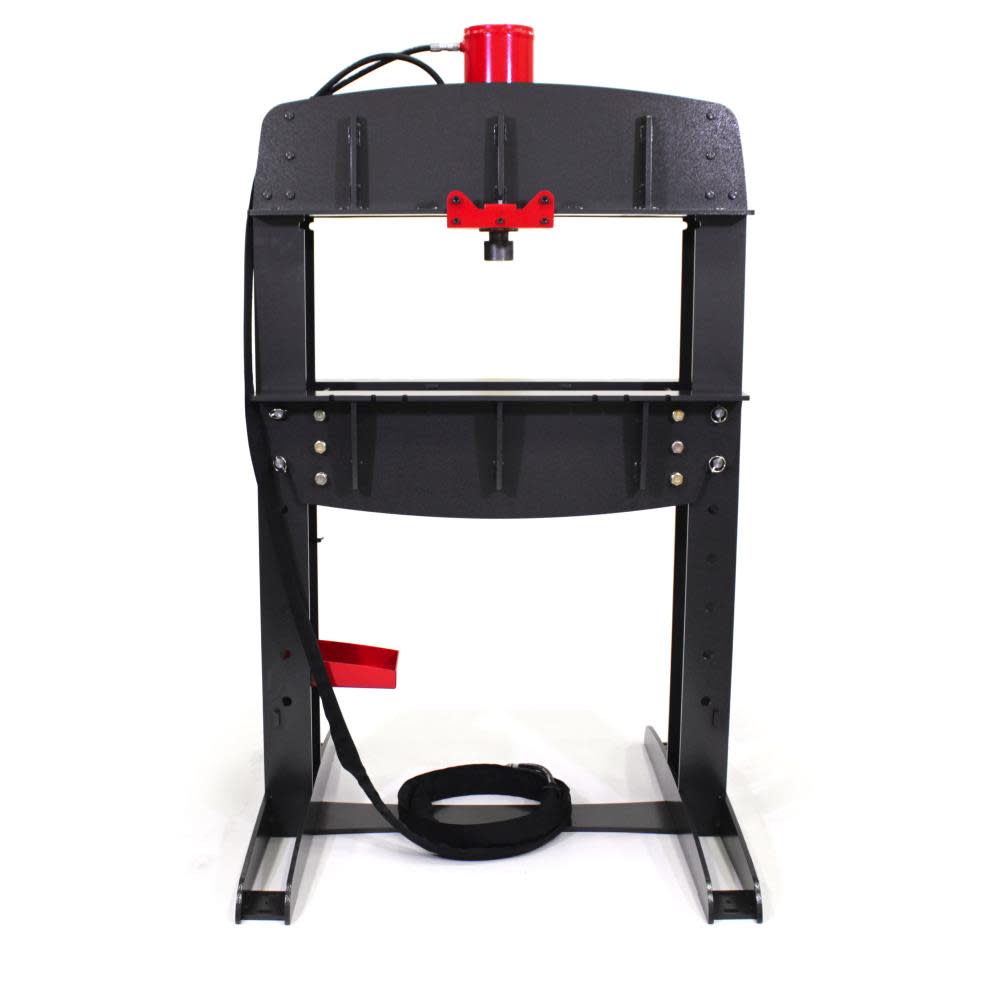

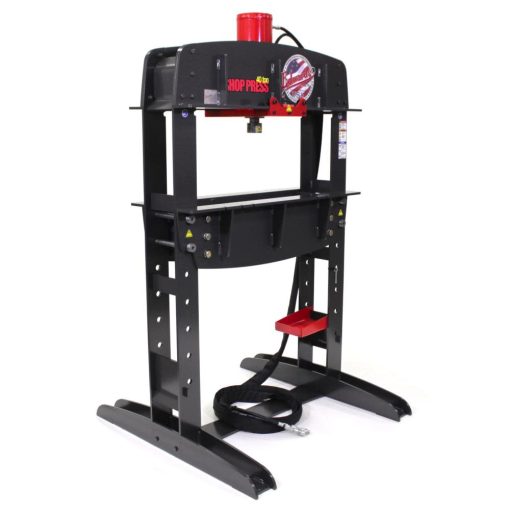

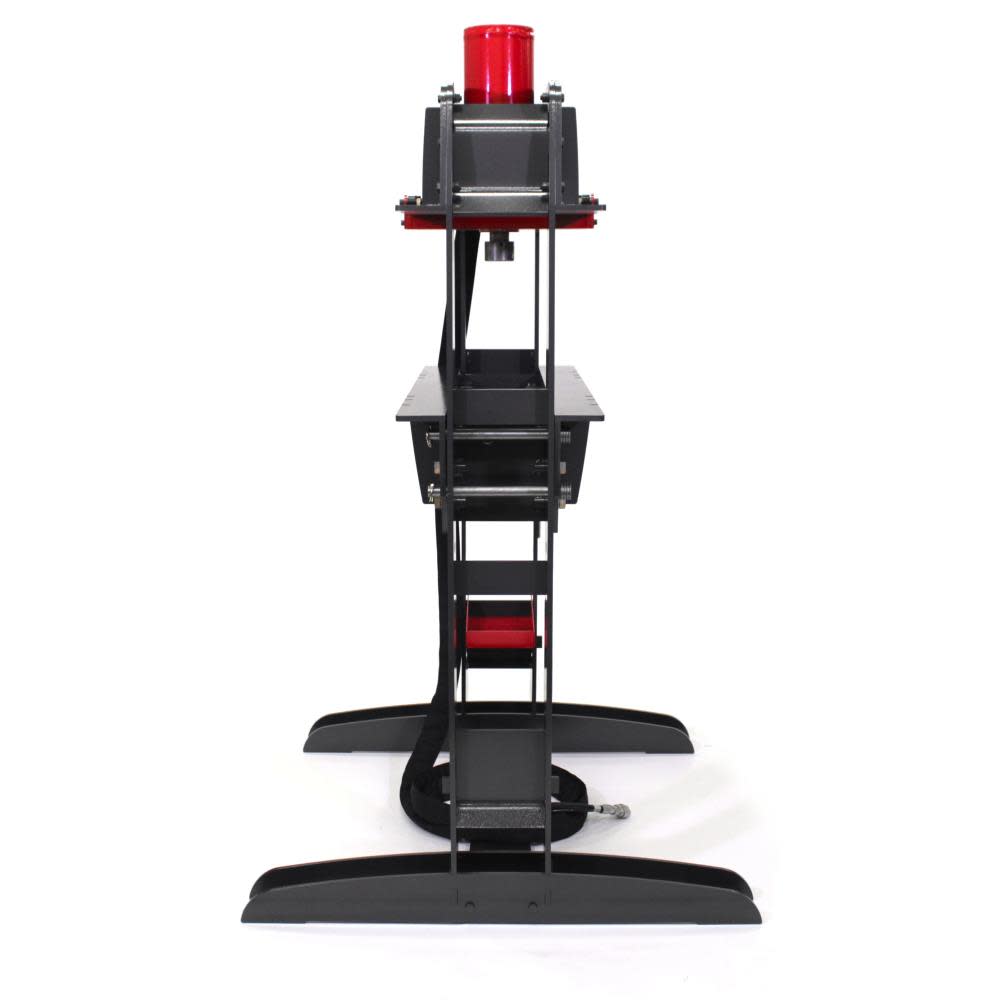

40 Ton Shop Press
Our full-sized 40 ton shop press is rugged and economical. Smooth and precise, heavy-duty and versatile, the unique open side design allows for material to be worked from multiple directions. Power it up with an Edwards ironworker with factory installed PowerLink system or an Edwards portable power unit.
Features
Heavy-duty 1/2″ steel construction
Cylinder with 4″ ram and 12-1/4″ stroke
Rolling cylinder for maximum versatility
Working area of 38″ x 40-1/2″
Easy-to-use hand/jog controls
Quick-disconnect hoses
Hydraulic-assist table height adjustment
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
HAT4000
Assembled Weight (lbs)
1401.0
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Continuous Force (tons)
40
Country of Origin
United States
Height (in)
79
Internal Supplier Part #
HAT4000
Internet Product Code (IPC)
6CCB70BDA95
Length (in)
54.0
Manufacturer Warranty
1 year warranty
Material
metal
Maximum Pressure Rating (psi)
2750
Package Depth
54.0
Package Height
89.0
Package Weight
1430.0
Package Weight (lbs)
1430
Press Plate Dimensions
54x48x48
Shop Press Type
Electric
Stroke Length (in)
12
Weight (lbs)
1400
Width (in)
48
