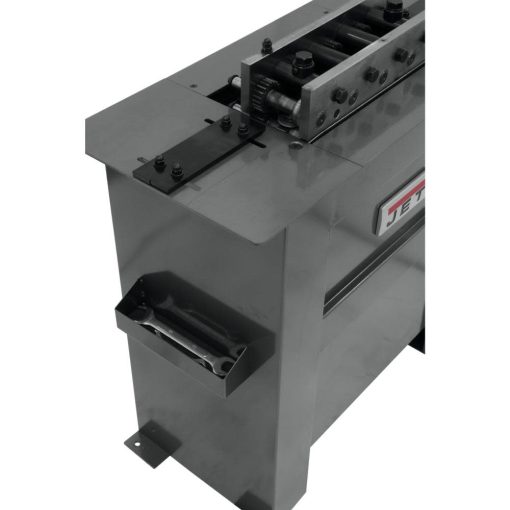

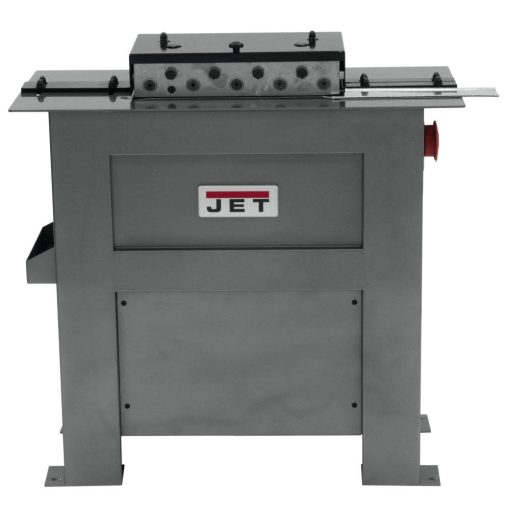

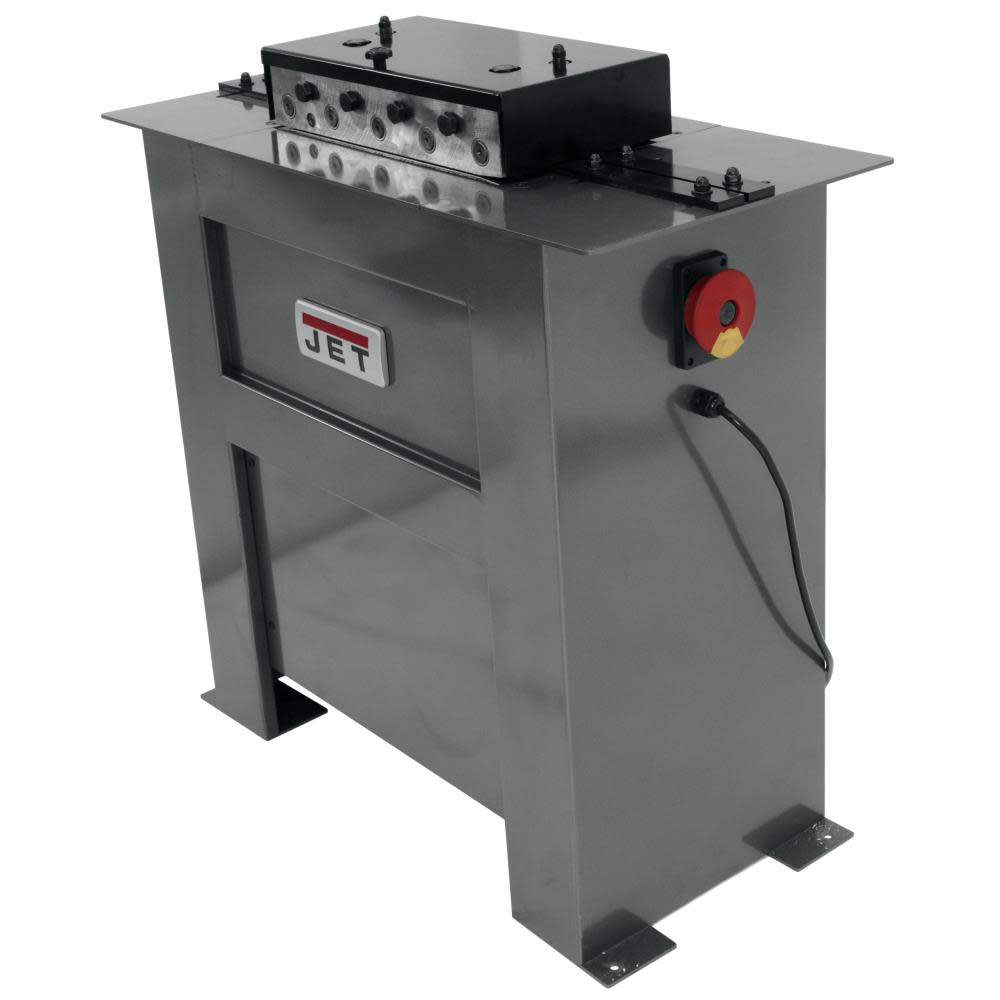

20-Gauge Pittsburgh Lock Former
The Jet lock former is all about durability. The all steel forming head, case hardened steel forming rolls and needle nose roller bearings contribute to years of precision performance. The heavy-duty undercarriage helps prevent damage during forklift transportation.
Features
All steel forming head with hardened and ground shafts
Case hardened steel forming rolls, machine cut gear for long use
Needle nose roller bearings for years of precision use
Reinforced undercarriage for damage free lifting with a fork lift
CSA/US certified
Magnetic switch for motor protection
Tool less roller cover panel for easy access
Tool storage tray
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
756090
Amperage (A)
15
Assembled Weight (lbs)
266
California Proposition 65 Warning Required
Yes
Color / Finish
Grey H
Country of Origin
Taiwan
Drive System
Belt Drive
Horsepower (hp)
1.5
Installation Hardware Included
No
Internet Product Code (IPC)
34B7122DE98
Manufacturer Warranty
2 Year
Material
steel
Maximum Gauge Capacity
20
Maximum RPM
25
Motor Horsepower (hp)
1.5
Overall Height (in)
36.5
Overall Length (in)
72
Overall Weight (lbs)
266
Overall Width (in)
16.2
Package Contents
1 Lockdowns
2 Wrenches, 23/26 and 12/14 mm
2 Hex wrenches, 4 mm and 6 mm
1 Formed sample plate
10 Double head round keys
2 Wrenches, 23/26 and 12/14 mm
2 Hex wrenches, 4 mm and 6 mm
1 Formed sample plate
10 Double head round keys
Package Depth
36
Package Height
36.5
Package Weight
365
Package Weight (lbs)
341
Power Source
Power plug installed
Table Length (in)
16.5
Table Width (in)
16.2
Voltage
115
Voltage (V)
115
Wattage (W)
1725
Wheel Material
hardened alloy steel
