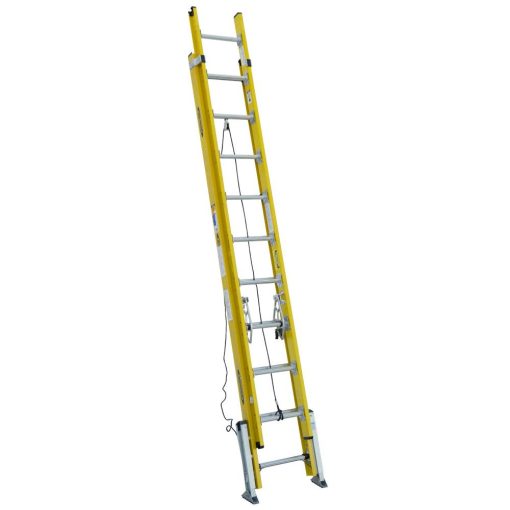

20 Ft. Type IAA Fiberglass Leveling Extension Ladder

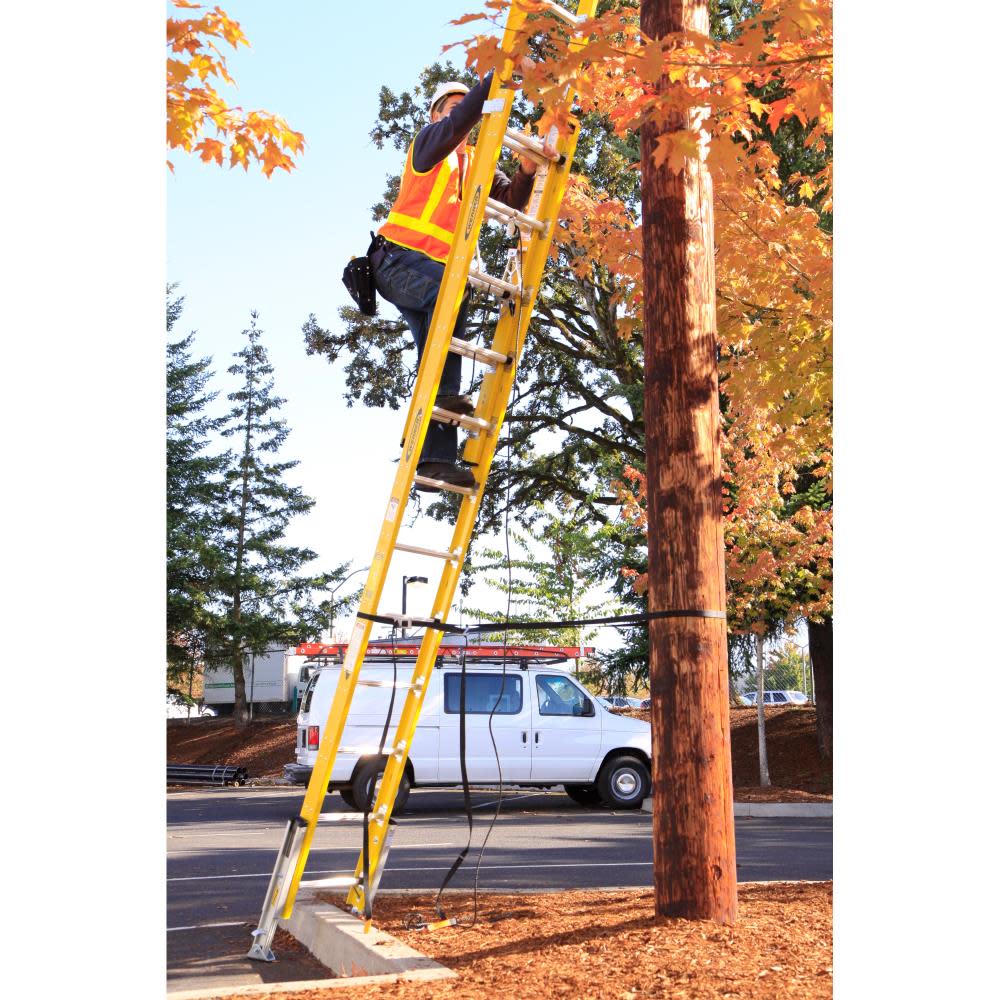

The D7120-2LV extension ladder boasts a duty rating of 375 lbs. and has factory-installed Levelok® levelers to enable the ladder to adapt to uneven terrain. With simple foot action, each leveler can extend up to 10 In. in 3/16 In. increments. This ladder is ideal for utility or telecommunication industries.
Features

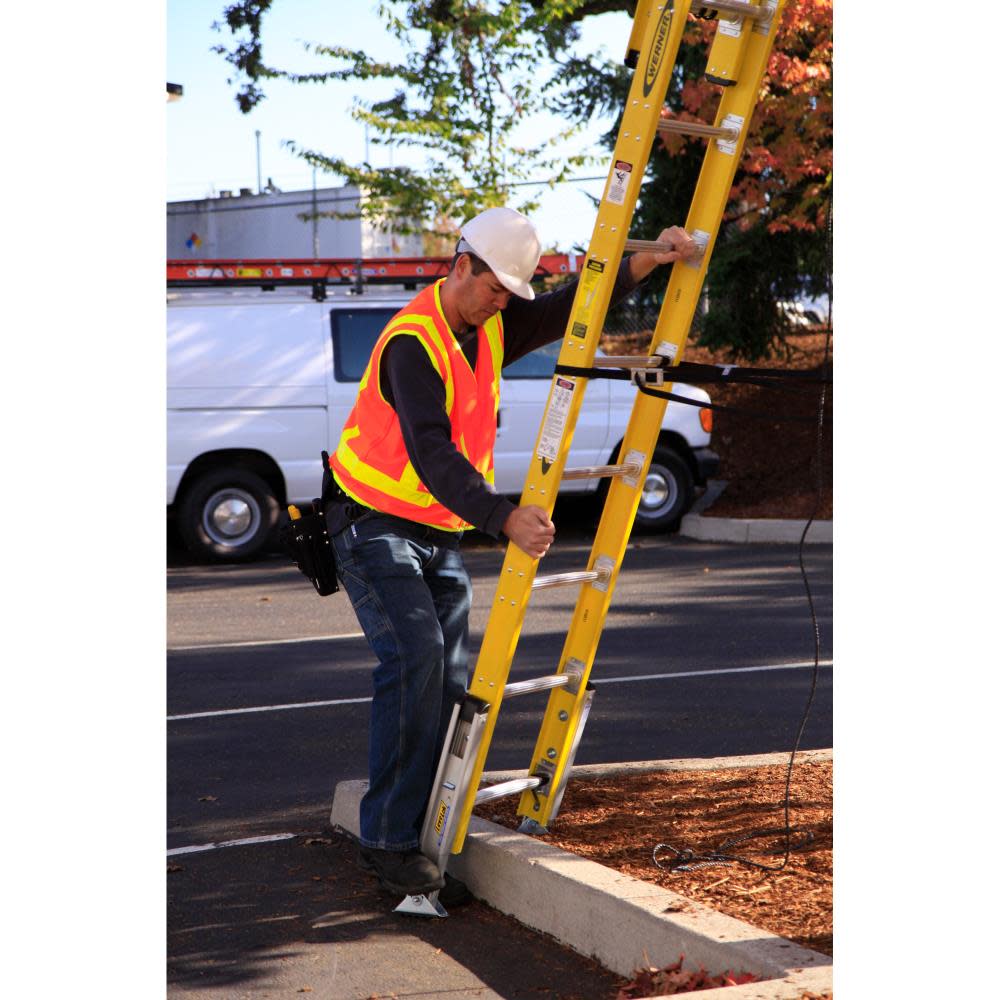

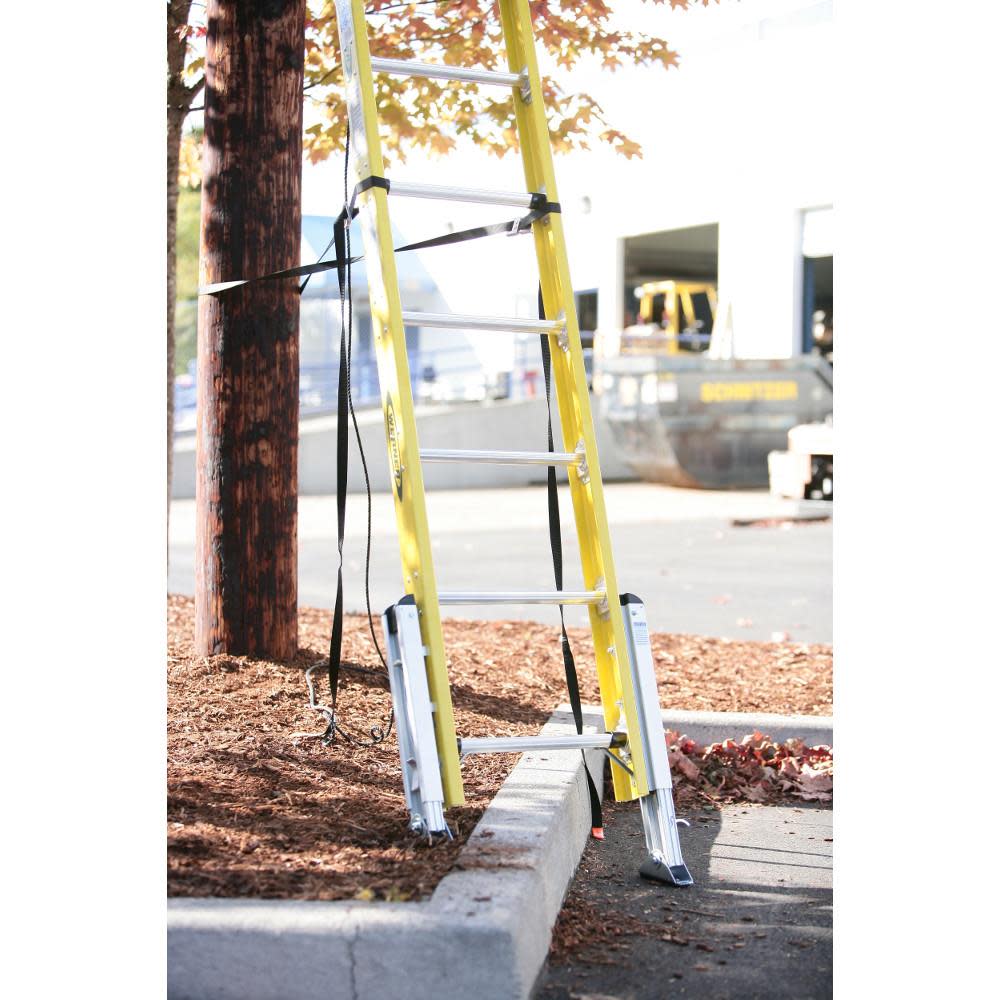

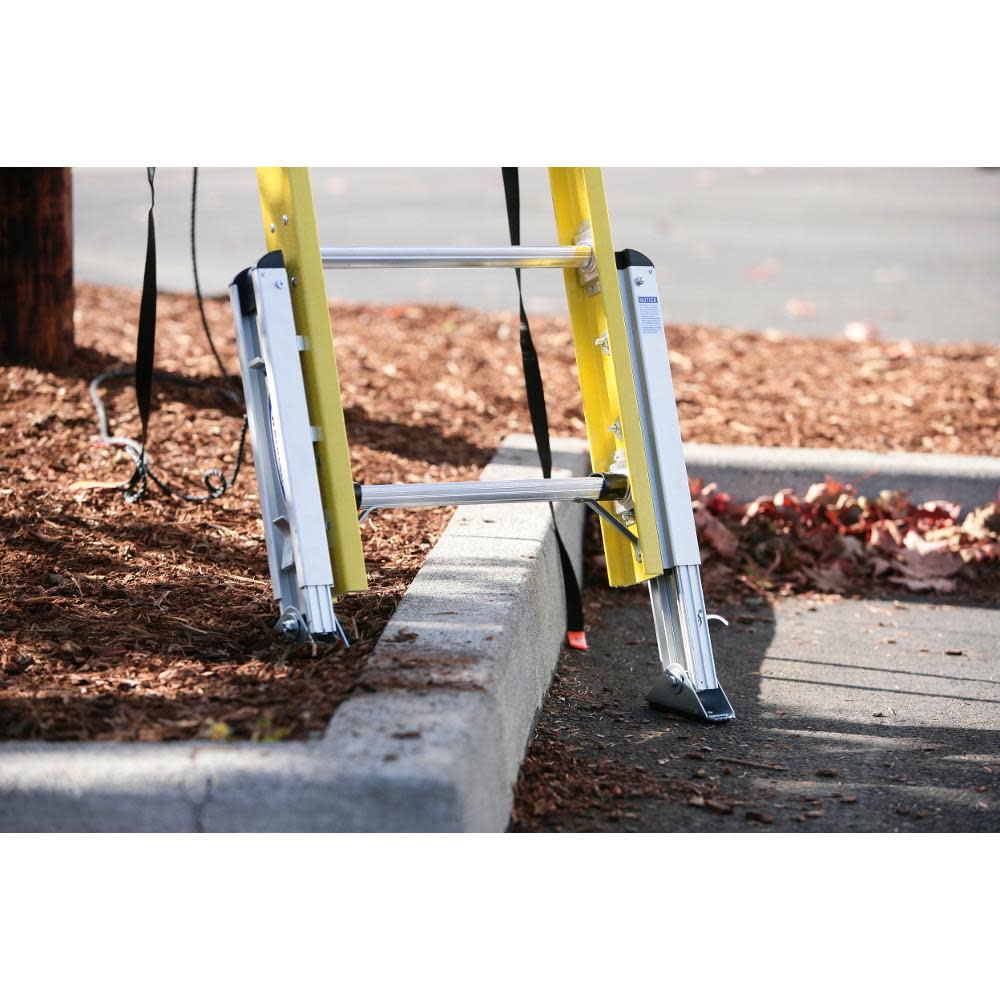

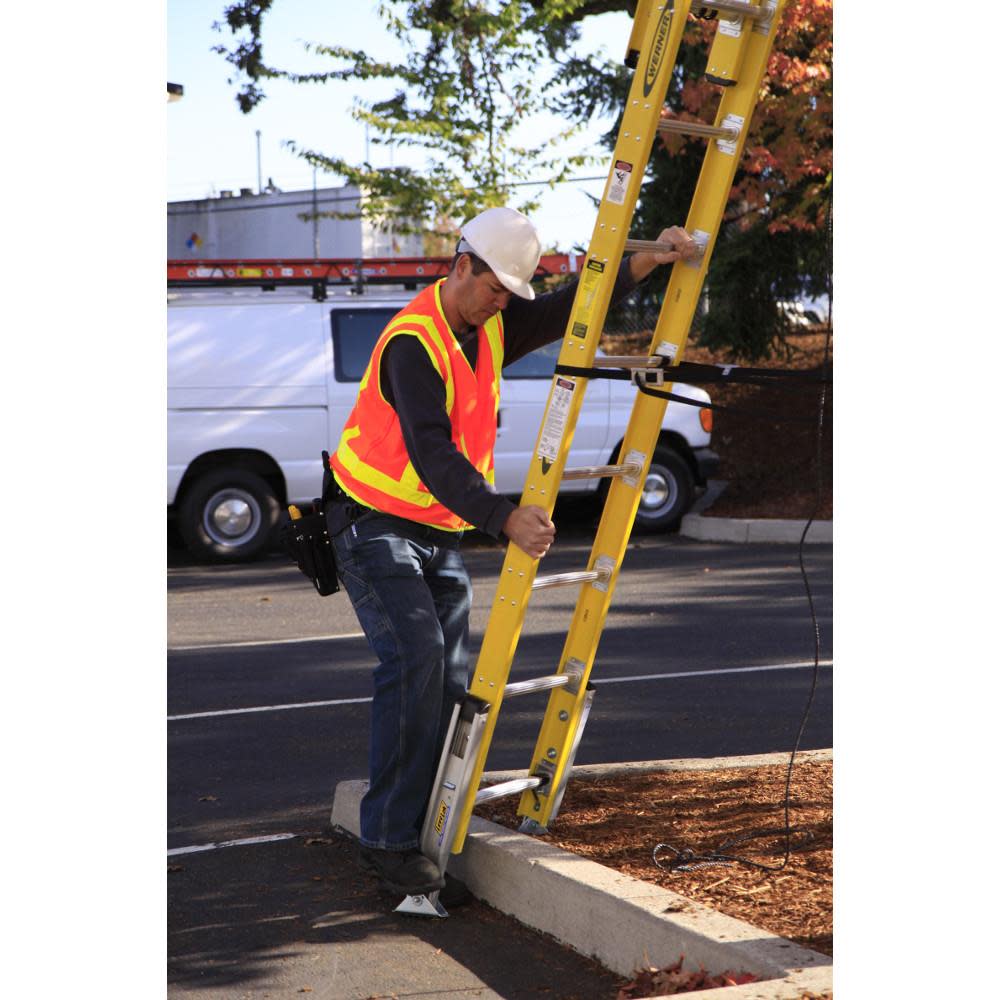

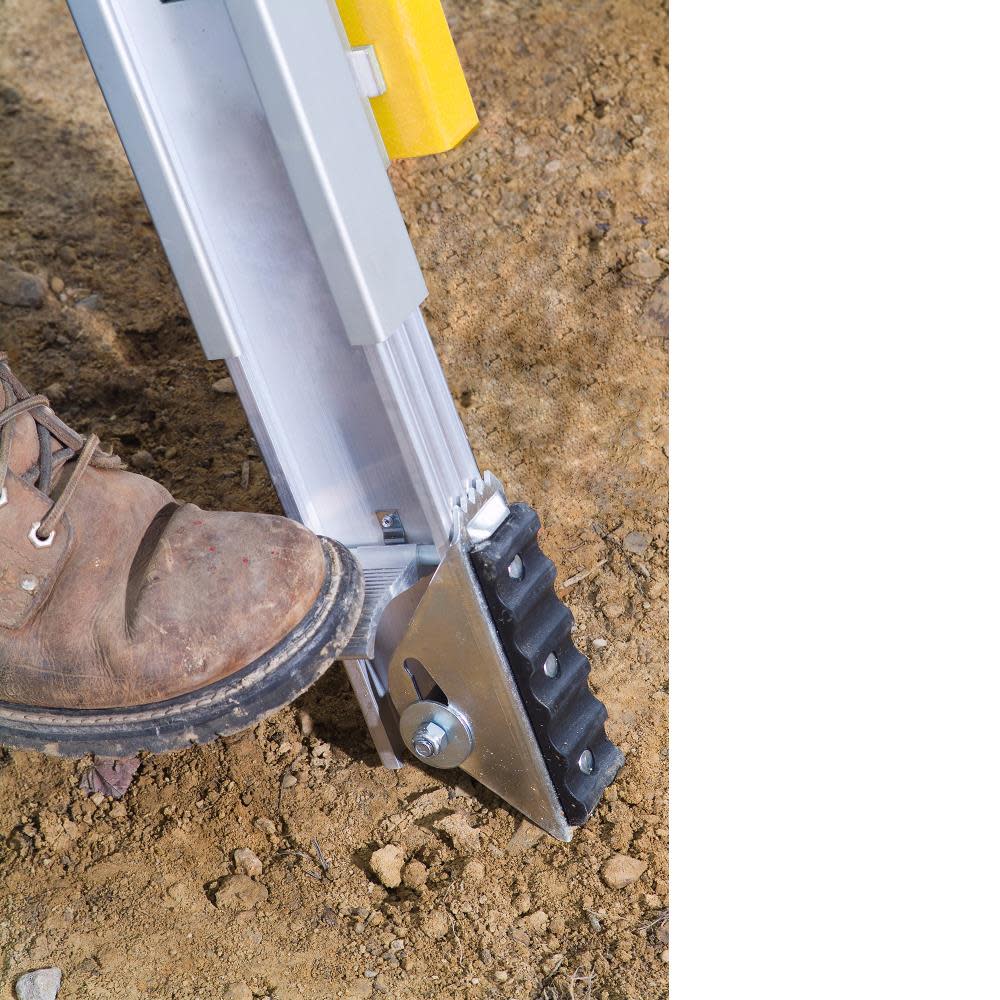

Factory installed Levelok® leveler enables ladder to adapt to uneven terrain

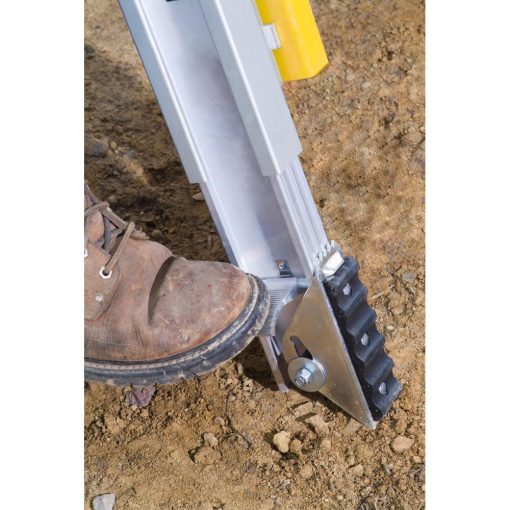

With simple foot action, leveler extends up to 10” in 3/16” increments
Exclusive ALFLO® rung joint means Twist-Proof® performance
1-5/8 In. slip-resistant Traction-Tred® D-rungs
Plate and rung assembly are riveted at 4 points to each side rail to allow for rung replacement
Interlocking side rails with nylon coated internal rail guides on bottom of fly section increase ease of operation
External guides at top of base section securely interlock rails

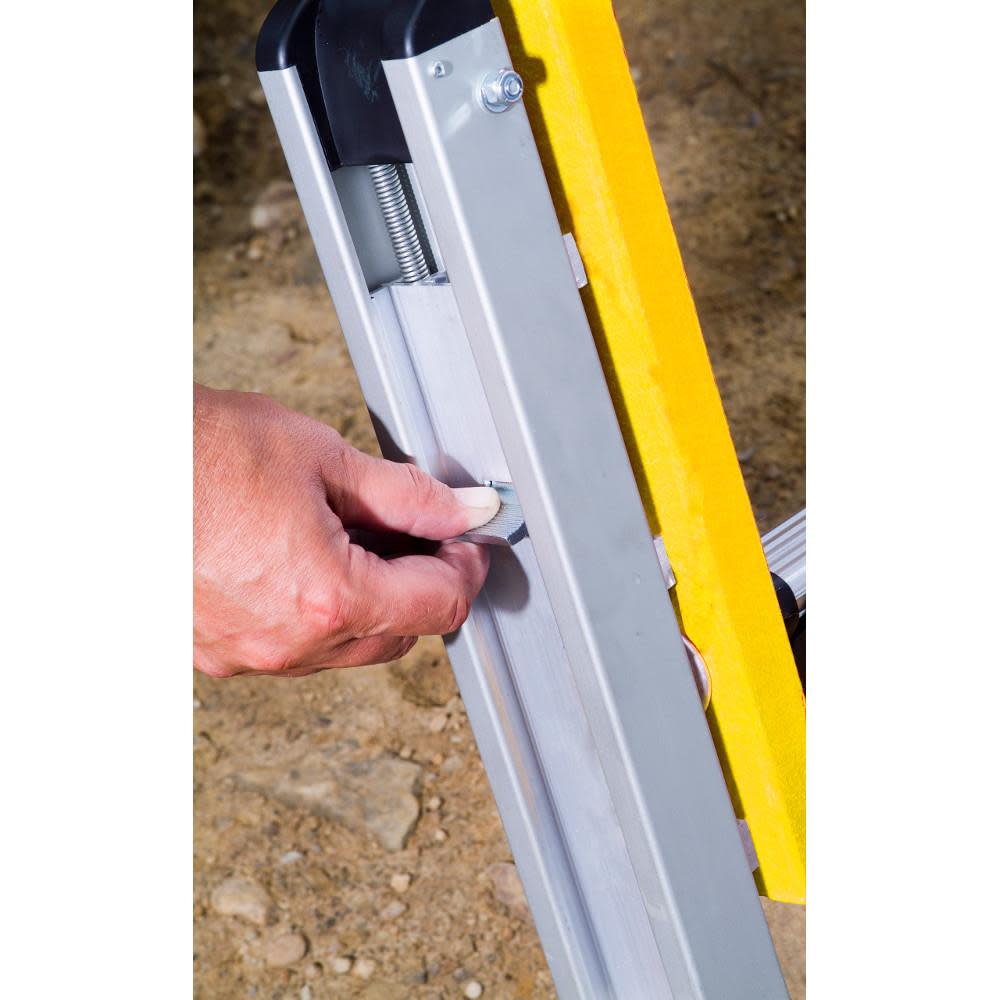

Rugged gravity spring locks operate smoothly
Base and fly separate easily to use base section as single ladder
Specifications
Acme Tools Brand Name
WERNER
Acme Tools Part Number
D7120-2LV
ANSI Approved
Yes
ANSI Ladder Rating
Type IAA
Assembled Weight (lbs)
58.0
Base Spread (in)
0.0
Base Width (in)
22.75
California Proposition 65 Warning Required
No
Collapsed Height (in)
120.0
Country of Origin
Mexico
CSA Certified
No
Duty Rating (lbs)
375.0
Internal Supplier Part #
D7120-2LV
Internet Product Code (IPC)
A528C9E3986
Ladder Length (ft)
20.0
Ladder Material
Fiberglass / Aluminum
Ladder Type
Extension
Manufacturer Warranty
None
Meets ANSI or OSHA Standards
Yes
OSHA Approved
Yes
Package Depth
0.53
Package Height
11.0
Package Weight
58.0
Package Weight (lbs)
58
Rung/Step Depth (in)
1.63
Rung/Step Material
Aluminum
Telescoping
No
Weather Resistance
Yes
Weather Resistant
Yes
