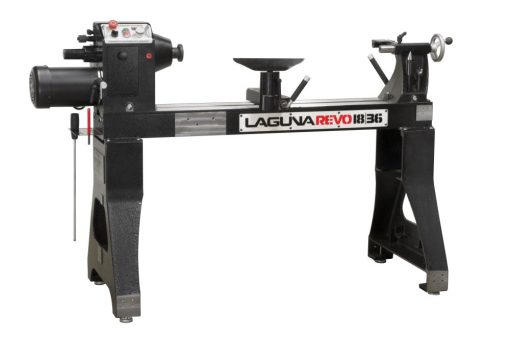

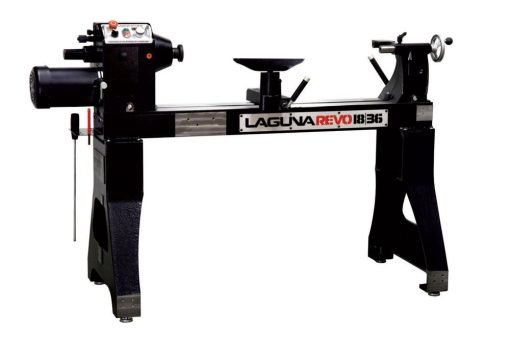

18|36 Revo Ultimate Lathe 110Volt
The 18|36 lathe features a brand new design & details that will excite any serious bowl turner!
Features
Electrical: 1.5 HP, 110 Volt, 60 Hz
Motor: induction, 1725 RPM, TEFC
VFD: delta S1 variable frequency drive
Phase: 1 phase input, 3 phase output
Poly-groove drive belt w EZ access
Recommended breaker: 20 Amp
Spring loaded spindle lock
Max. outboard swing: 32 In.
Swing over banjo: 13-1/2 In.
Spindle taper: MT#2, swing over bed: 18 In.
RPM high:135-3500, RPM low: 50-1300
Tail stock quill: 4-1/2 In., engraved, self-ejecting
Baldor to spindle center: 41-1/2 In. w pads
Front bearing: TPI Taiwan 6207LLU, rear bearing: TPI Taiwan 6205LLU
Spindle index #: 14/36/ 48 W lock, distance between centers: 36 In.
Heads • headstock through-bore: 3/8 In., headstock travel: full length
Tail stock through-bore: 3/8 In.
Tail stock storage of centers
Spindle size: 1-1/4 In. X8 TPI RH
Floor to bed: 32-1/2 In. w pads
Floor space: W 60 In. D 26 In. H 47 In.
Specifications
Acme Tools Brand Name
LAGUNA TOOLS
Acme Tools Part Number
MLAREVO1836110150
Assembled Weight (lbs)
500
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
Manufacturer Warranty
New woodworking machines sold by Laguna Tools carry a one-year warranty effective from the date of shipping.
Package Depth
36
Package Height
50
Package Weight
500
Package Weight (lbs)
501
Shipping Weight (lbs)
500
