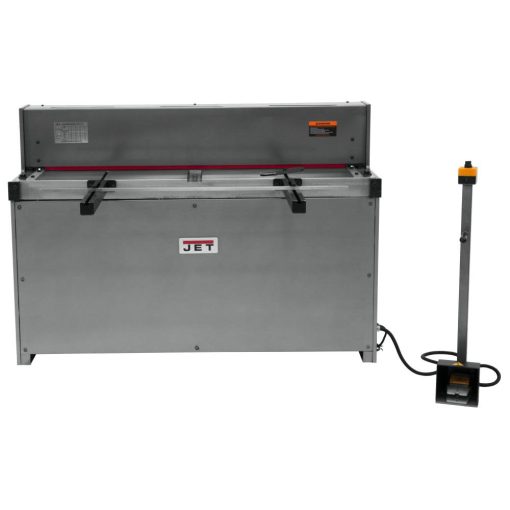

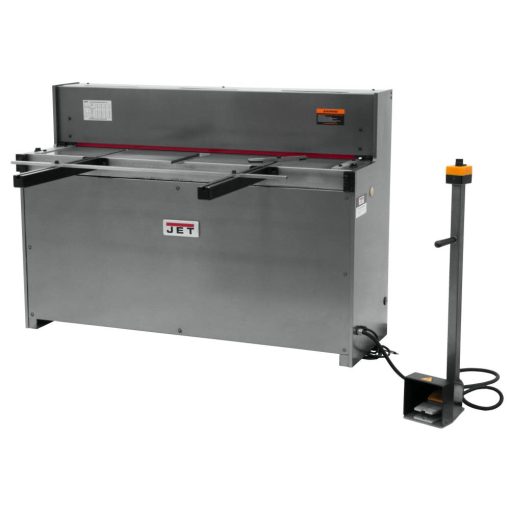

14 Gauge 52 Inch Hydraulic Shear 1PH
The Jet HS-1452 delivers the strength and accuracy your shop demands in a rugged, steel framed hydraulic shear. Capable of making the big cuts, and versatile enough to handle just about any job you need completed. The low angle blade design ensures smooth cuts along the precision-aligned bed and beam.
Features
Heavy-duty steel construction eliminates deflection across the blade span

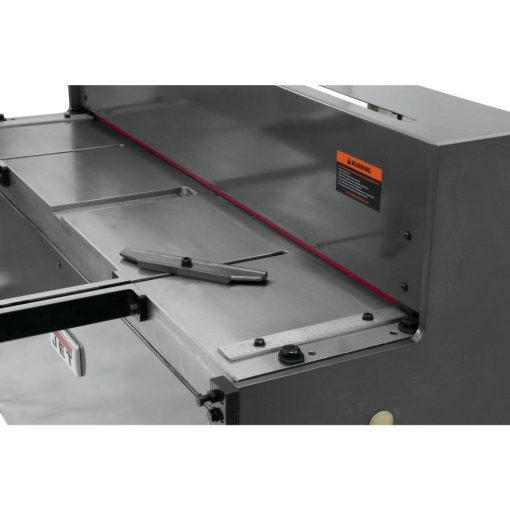

Hand-wheel controlled back gauge for quick and easy depth adjustments
Easy to use satellite foot controls with emergency stop button
3 HP, 115V, 1 Ph

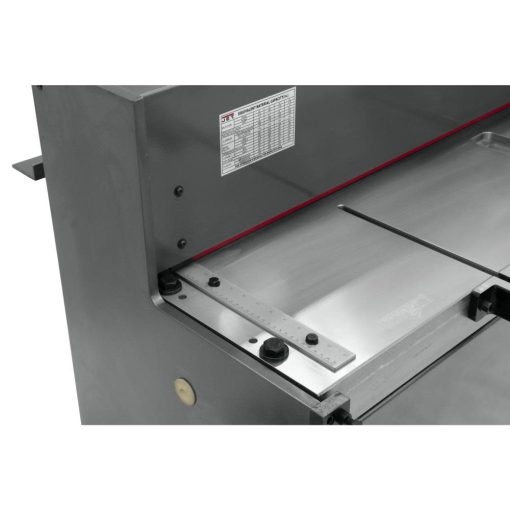

Precise bed and beam accuracy assures working accuracy
Low cutting angle to cut narrow strips without twisting
14 Gauge maximum capacity for mild-steel
10 – 12 Gauge maximum capacity for soft alloys
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
756205
Assembled Weight (lbs)
1335
Blade Count
2
California Proposition 65 Warning Required
Yes
Country of Origin
China
Depth (in)
62.2
Floor Area (in)
62.2 x 77
Gauge Cutting Capacity
14
Height (in)
42.5
Internet Product Code (IPC)
55E600264EE
Length (in)
62.2
Manufacturer Warranty
2 Year
Net Tool Weight (lbs)
1335
Package Depth
69
Package Height
46
Package Weight
1880
Package Weight (lbs)
1456
Portable
No
