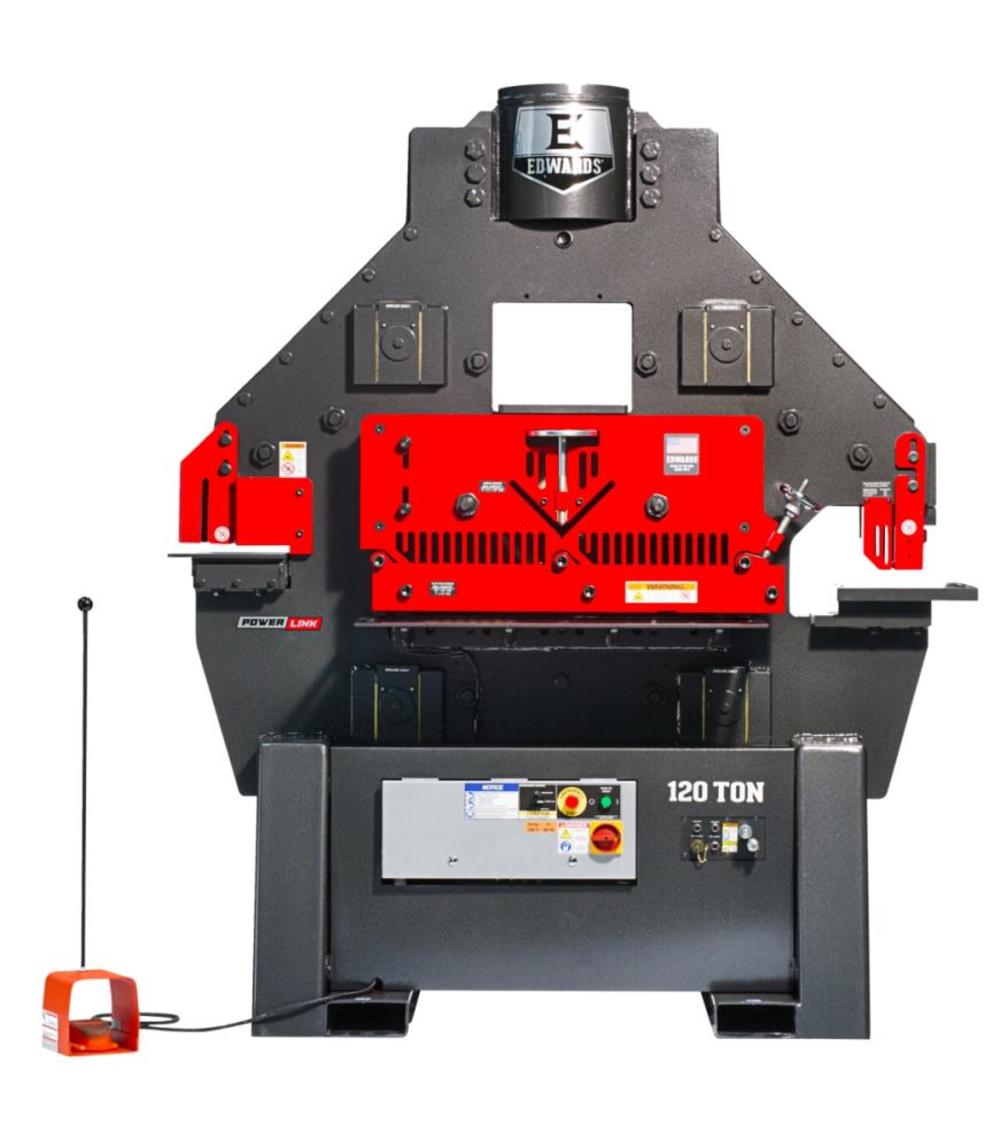

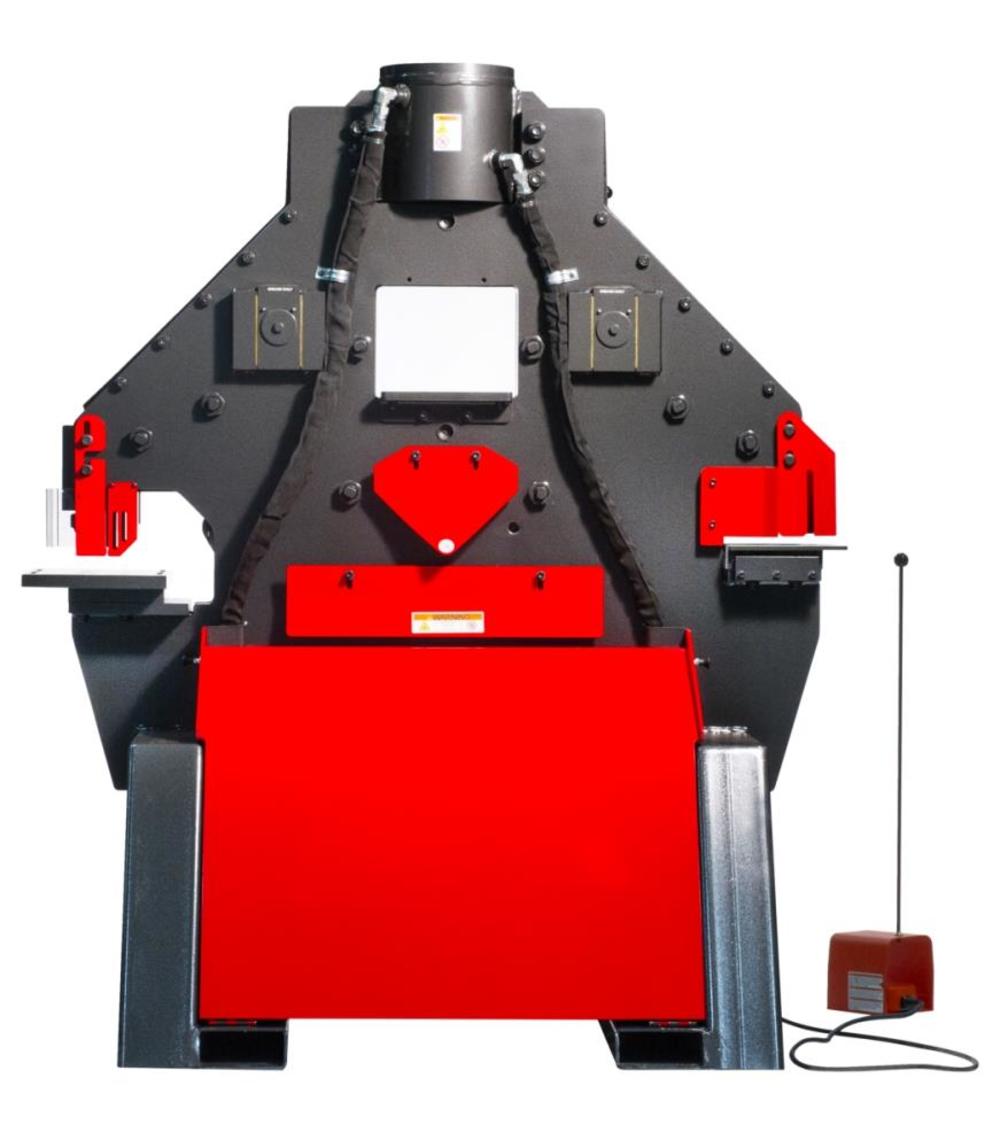

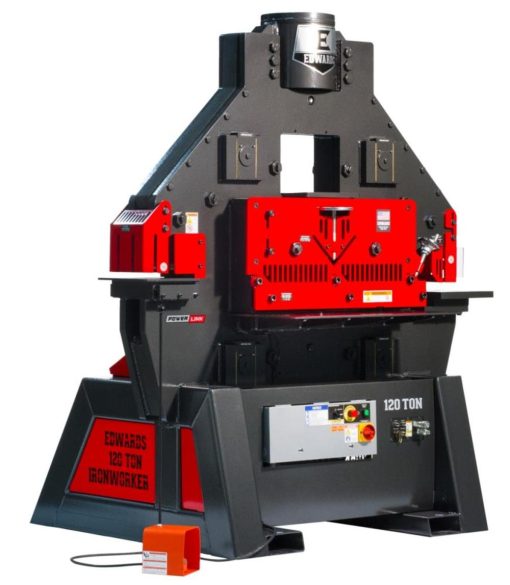

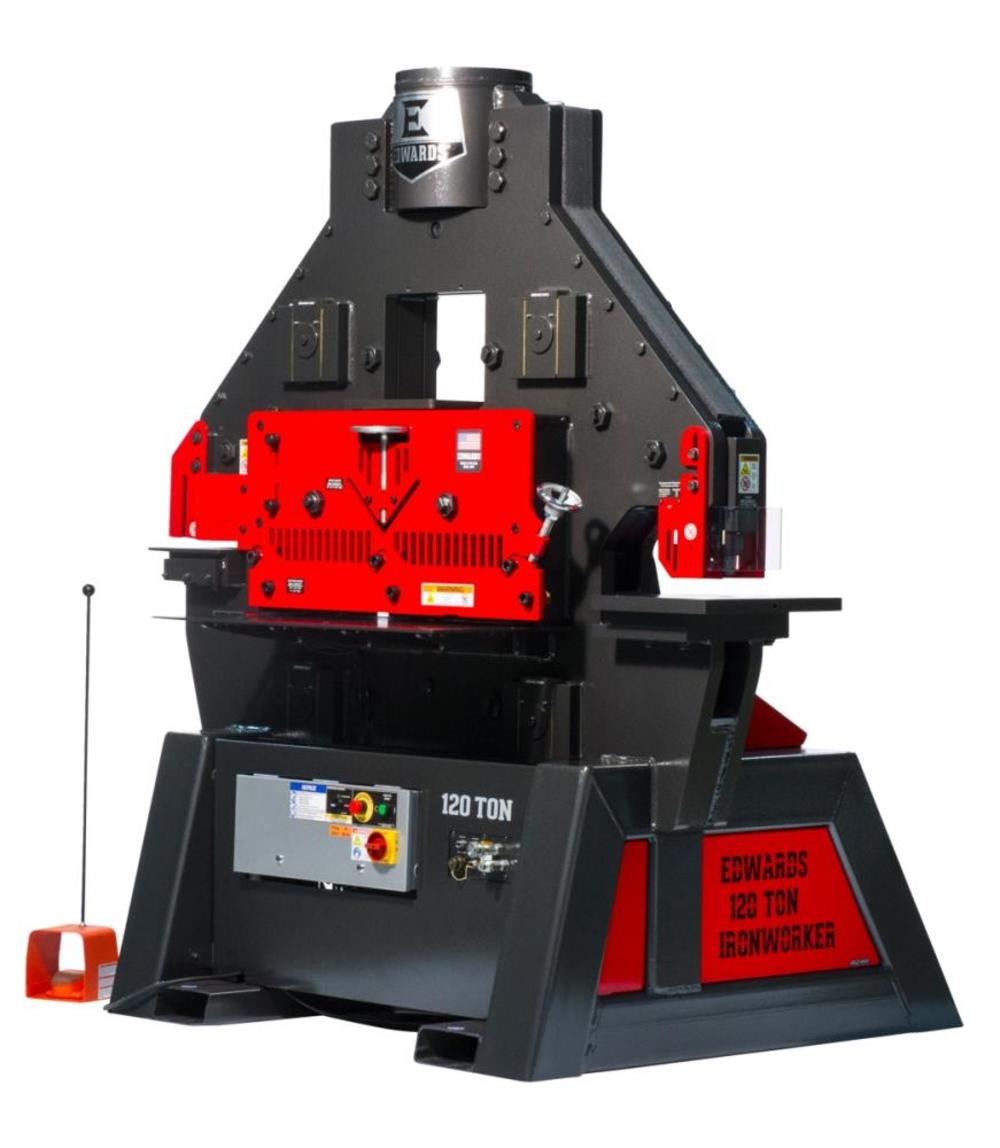

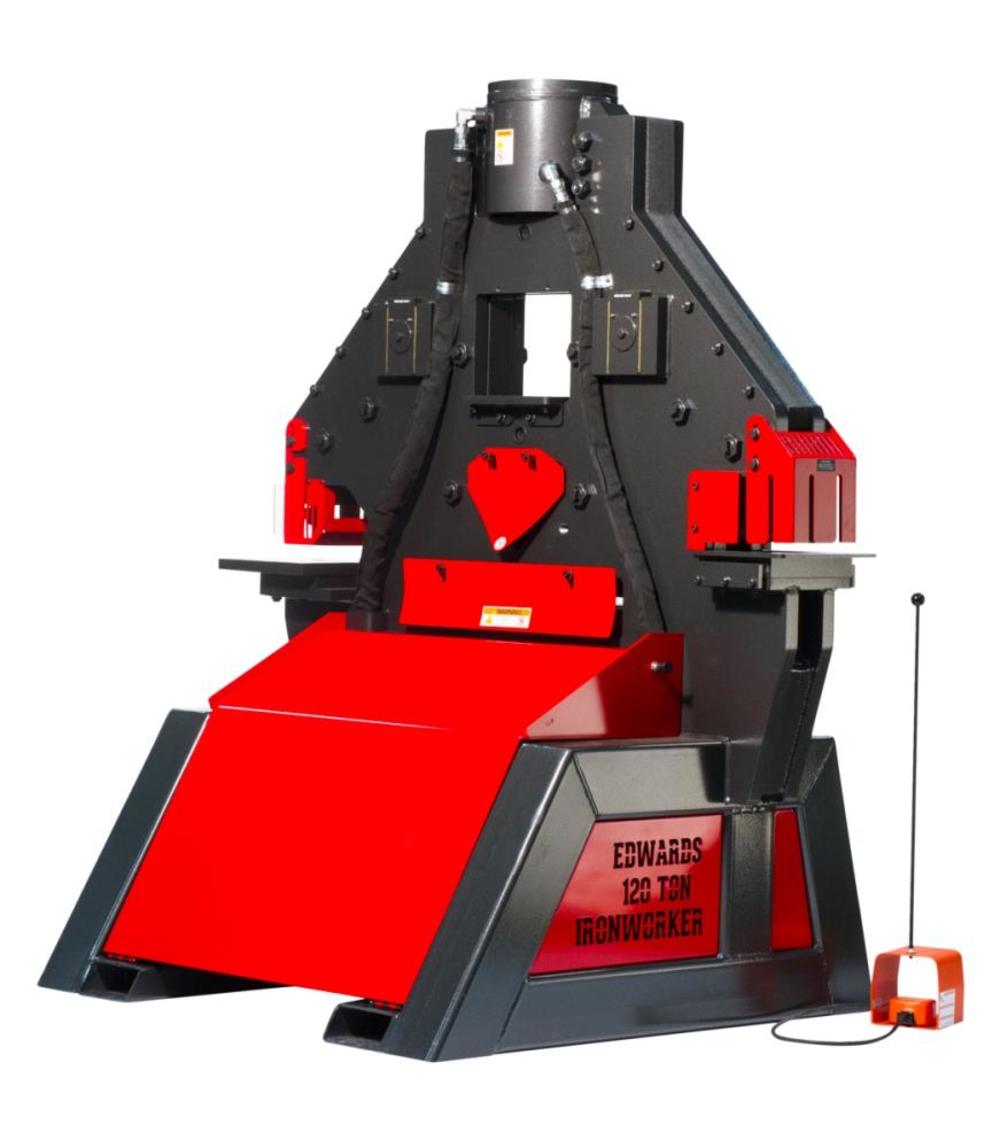

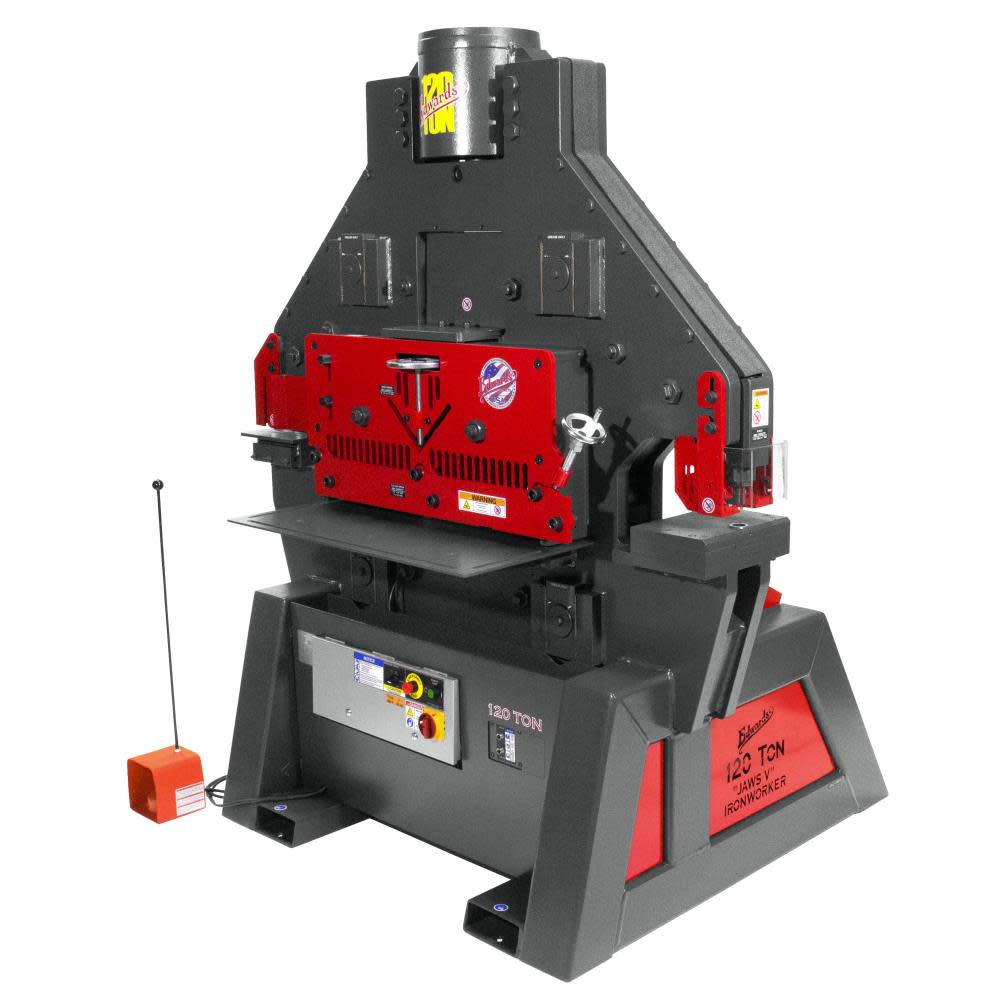

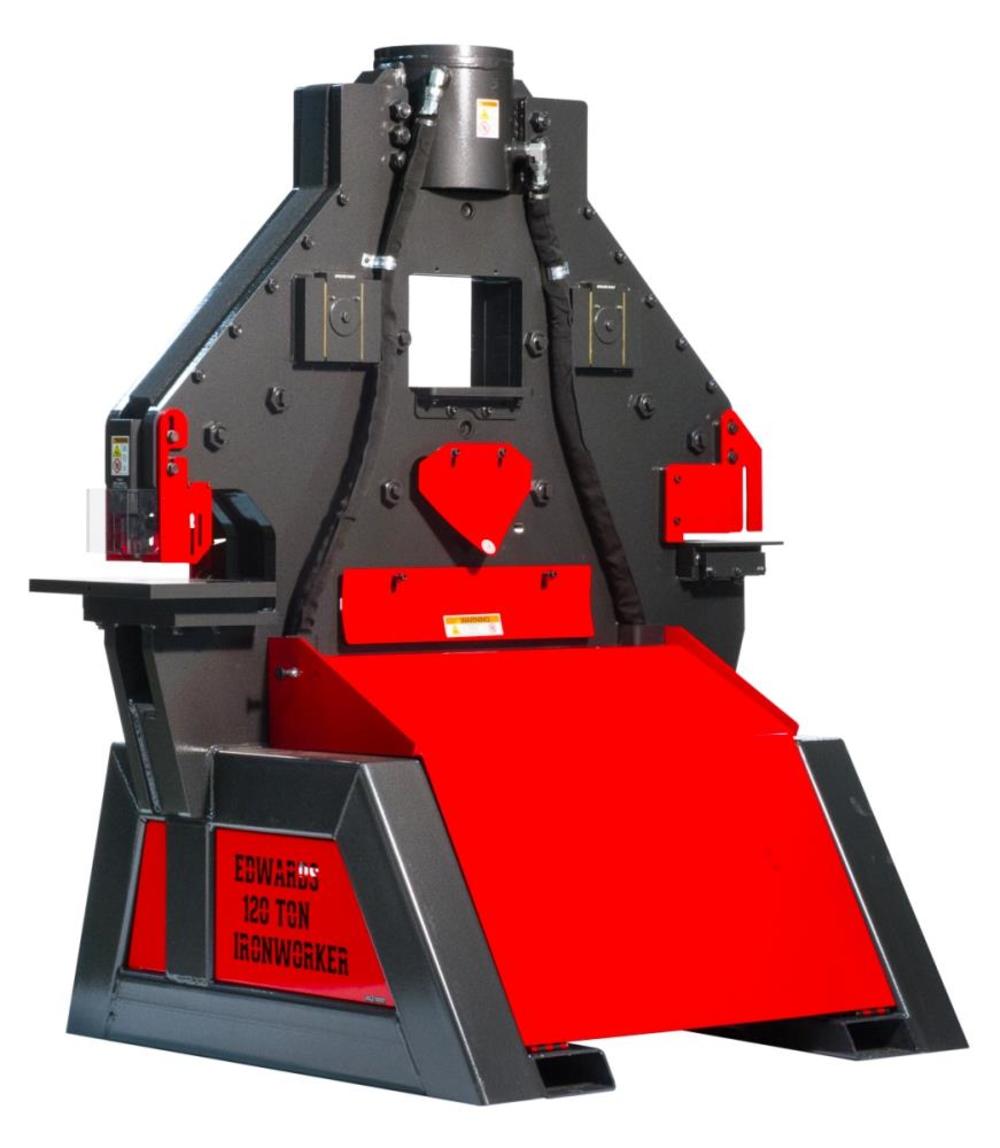

120 Ton Ironworker 3 Phase, 230v with PowerLink System
Our most powerful ironworker, the Edwards 120 ton jaws ironworker offers the most in capacity and versatility. Standard features include a punch assembly, 24 In. wide flat bar shear, high capacity angle shear, coper notcher and a universal open tooling station for optional tooling accessories allowing you to select the perfect tool for your needs. The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
The powerhouse
Five workstations: standard (5) – punch, flat bar shear, angle shear, coper notcher & rod shear
9 additional attachments available to convert the punch workstation to your specific needs
ANSI B11.5 – 1988(02) compliant guarding
ETL/UL approved controls
Integrated e-stop, lock-out/tag-out
Optimized workstation heights for improved efficiency
Electric foot pedals with integrated jog control
Adjustable electric stoke control
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW120-3P230-AC900
Amperage (A)
26.0
ANSI Safety Listing
Yes
Assembled Weight (lbs)
5856.0
California Proposition 65 Warning Required
Yes
Color / Finish
Gray with Red guards
Country of Origin
United States
CSA Certified
No
ETL Listed
Yes
Horsepower (hp)
10.0
Internet Product Code (IPC)
F4DC7DC6536
Manufacturer Warranty
1 Year
Maximum RPM
1770
Motor Horsepower (hp)
10.0
Motor Voltage (V)
230.0
Overall Height (in)
87.0
Overall Length (in)
60.0
Overall Width (in)
67.0
Package Contents
Notcher
Package Depth
60.0
Package Height
87.0
Package Weight
5975.0
Package Weight (lbs)
5975
Phase
Three Phase
Reservoir Capacity (gal)
17.0
UL Listed
Yes
Voltage
230
Weight (lbs)
5856.0
