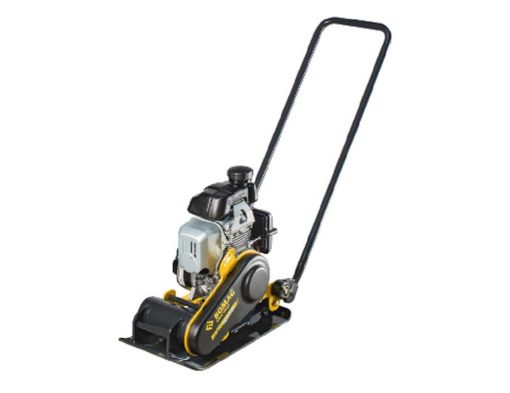

11.8 In. Single Direction Vibratory Plate – Honda GX100 Engine
You mend, repair, and create so that our environment remains worth living in. To make this work easier for you we built the best machines – from tampers and vibratory plates to hand-guided vibratory rollers and multi-purpose compactors. For over 60 years, the history of our company has synonymous with the history of compaction.
Features
Vibration insulated steering bow
Detachable steering handle
Highly wear resistant base plate
Automatic shutdown at low oil level
Recoil starter
Single point lifting device
Fully protected V-belt
Carrying handles
Bolt on exciter housing
Fully enclosed V-belt
Specifications
Acme Tools Brand Name
BOMAG
Acme Tools Part Number
BVP 10/30
Adjustable Handle Height
Yes
Anti-Vibration Handle
Yes
Application
Earthwork, asphalt, and paving applications
Assembled Weight (lbs)
104
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 0.2 Gal
Color / Finish
Black and yellow
Compacting Plate Length (in)
20
Compacting Plate Width (in)
11.8
Compaction Equipment Type
Vibratory Plate Compactor
Country of Origin
United States
Engine
Honda GX100
Engine Starting Method
Recoil
Engine Type
Gasoline 4 Cycle
Fuel Consumption (gph)
0.2
Fuel Tank Capacity (gal)
0.2
Internal Supplier Part #
BVP 10/30
Internet Product Code (IPC)
82B29B13770
Lifting Bail Included
Yes
Manufacturer Warranty
One Year Limited Warranty
Material
Earthwork, asphalt, and paving applications
Maximum Engine Output (hp)
2
Maximum Travel Speed (ft/min)
82
Overall Height (in)
33.0
Overall Length (in)
41.7
Overall Weight (lbs)
104
Overall Width (in)
11.8
Package Contents
BVP 10/30
Package Weight
144
Package Weight (lbs)
144
Surface Capability
Earthwork, asphalt, and paving applications
