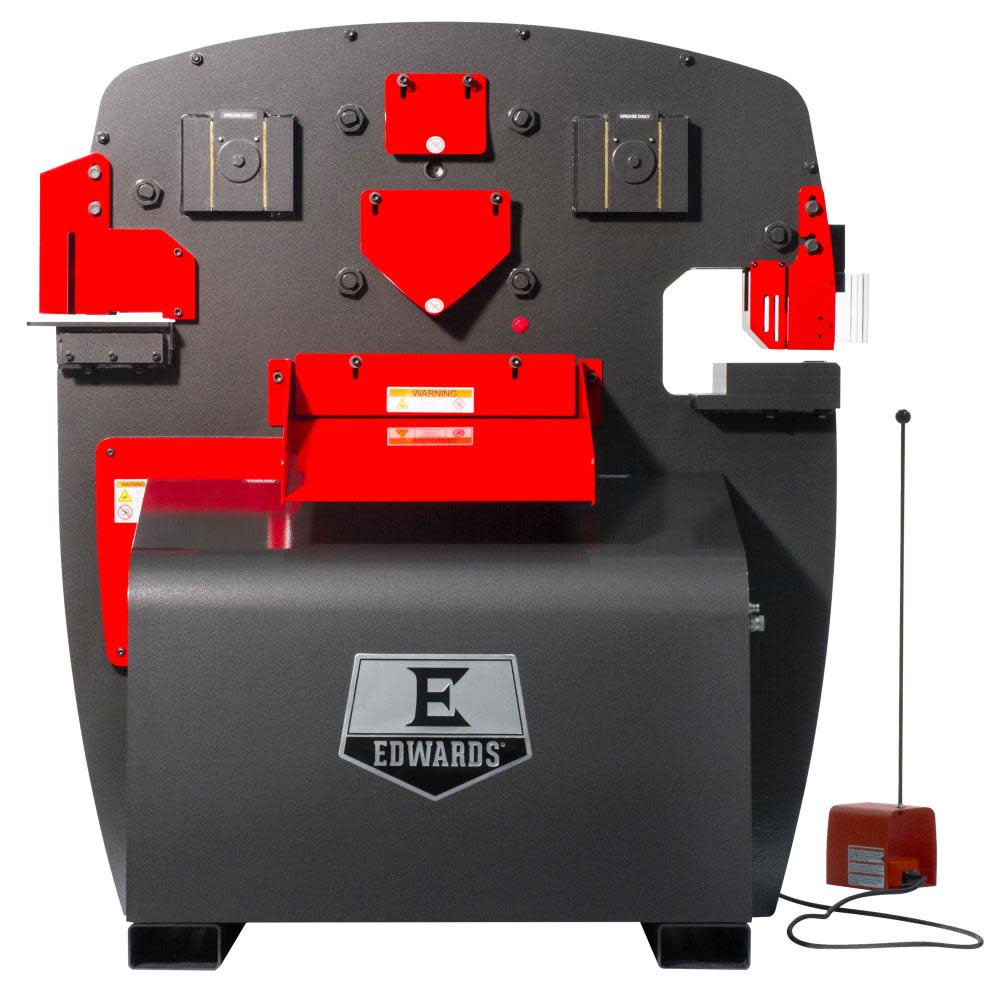

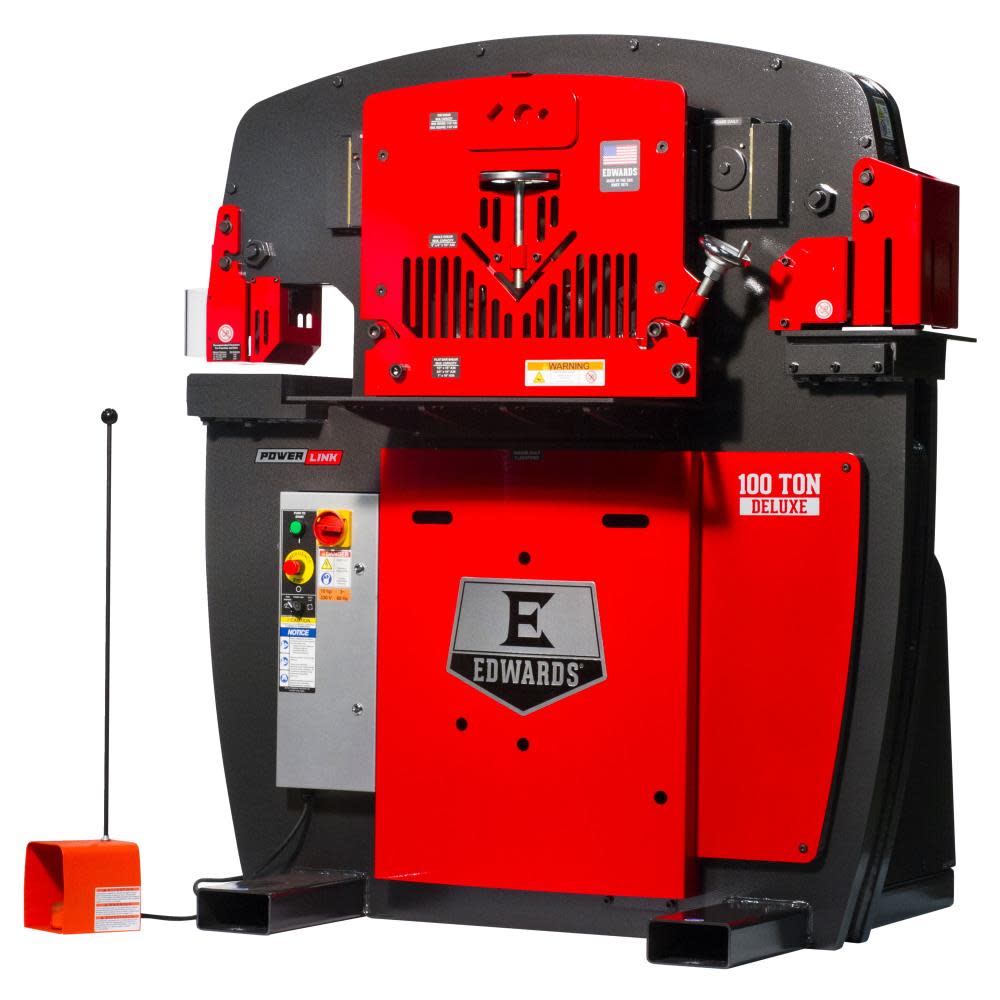

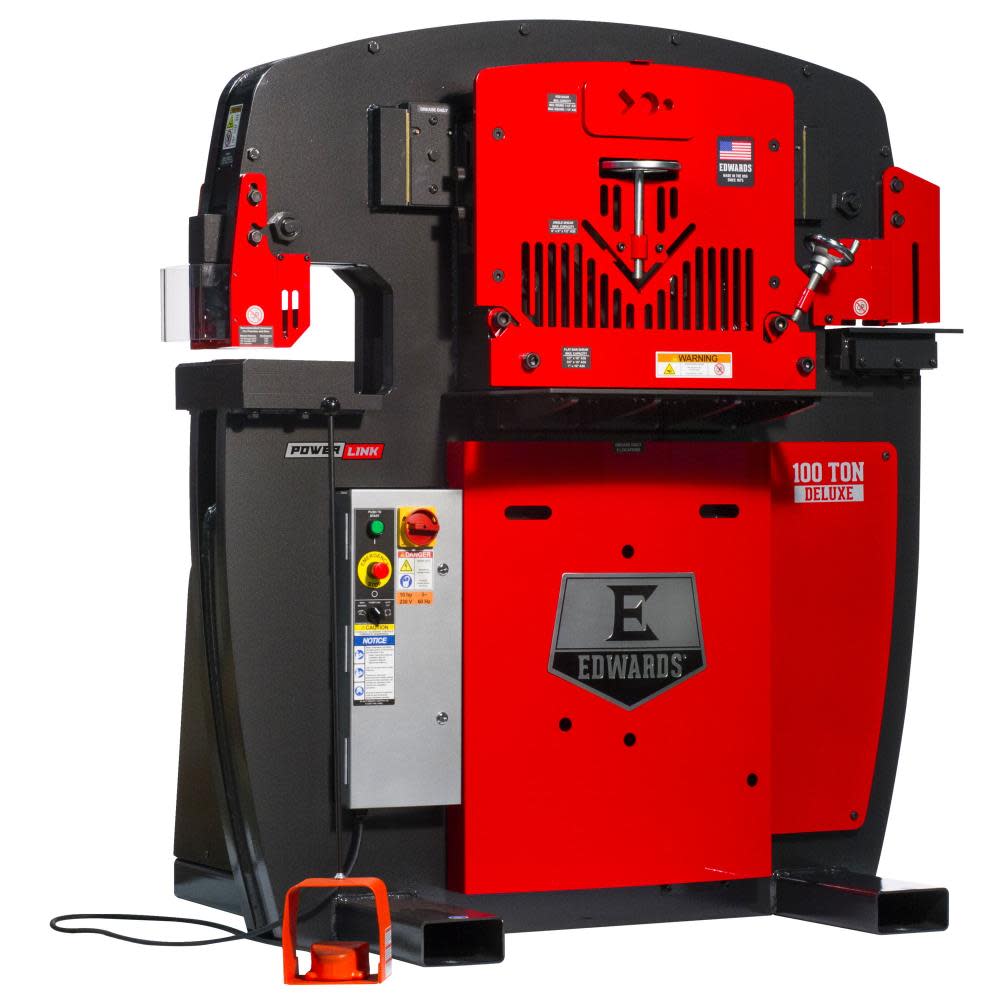

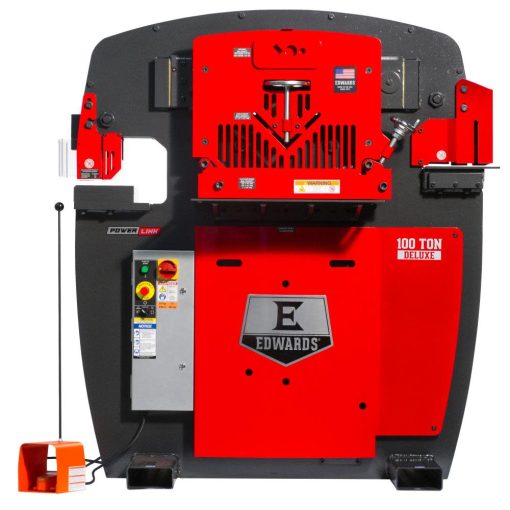

100 Ton Deluxe Ironworker 3 Phase, 208v with PowerLink System

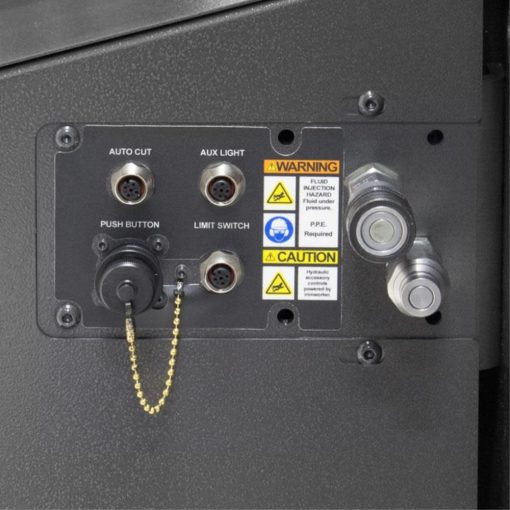

A brute of an ironworker, the Edwards 100 ton deluxe jaws ironworker features super-duty construction and a powerful 10 HP motor. Standard features include a punch assembly, 18 In. wide flat bar shear, angle shear, coper notcher and a special built-in rod shear for solid square and round bar Stock. The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
Ideal for the large shop
Five workstations: standard (5) – punch, flat bar shear, angle shear, coper notcher & rod shear
9 additional attachments available to convert the punch workstation to your specific needs
ANSI B11.5 – 1988(02) compliant guarding
ETL/UL approved controls
Integrated e-stop, lock-out/tag-out
Optimized workstation heights for improved efficiency
Electric foot pedals with integrated jog control
Adjustable electric stoke control
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW100DX-3P208-AC
Amperage (A)
22.0
ANSI Safety Listing
Yes
Assembled Weight (lbs)
5076.0
California Proposition 65 Warning Required
Yes
Color / Finish
Gray with Red guards
Country of Origin
United States
ETL Listed
Yes
Horsepower (hp)
7.5
Internet Product Code (IPC)
BDA1275D4DA
Manufacturer Warranty
1 Year
Maximum RPM
1765
Motor Horsepower (hp)
7.5
Motor Voltage (V)
208.0
Overall Height (in)
69.0
Overall Length (in)
60.0
Overall Width (in)
67.0
Package Contents
Notcher
Package Depth
60
Package Height
69
Package Weight
5180
Package Weight (lbs)
5180
Reservoir Capacity (gal)
17.0
UL Listed
Yes
Voltage
208
Weight (lbs)
5076.0
