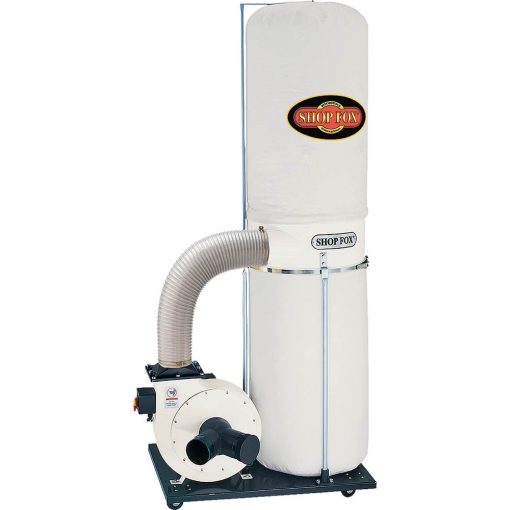

1-1/2 HP Dust Collector
A powerful dust collector from Shop Fox®! This unit features an extra heavy-duty 12″ steel impeller and a 1-1/2 HP motor that runs on 110V. For wood dust only. Models manufactured after June 2015 come with a 2.5 micron felt upper filtration and a plastic (PE) lower collection bag. The upper 2.5 micron bag (D4572) and lower plastic bags (D4573-5pk) can be purchased separately for any collectors that do not include them.
Features
Motor: 1-1/2 HP, 110V, single-phase, 3450 RPM, 16A

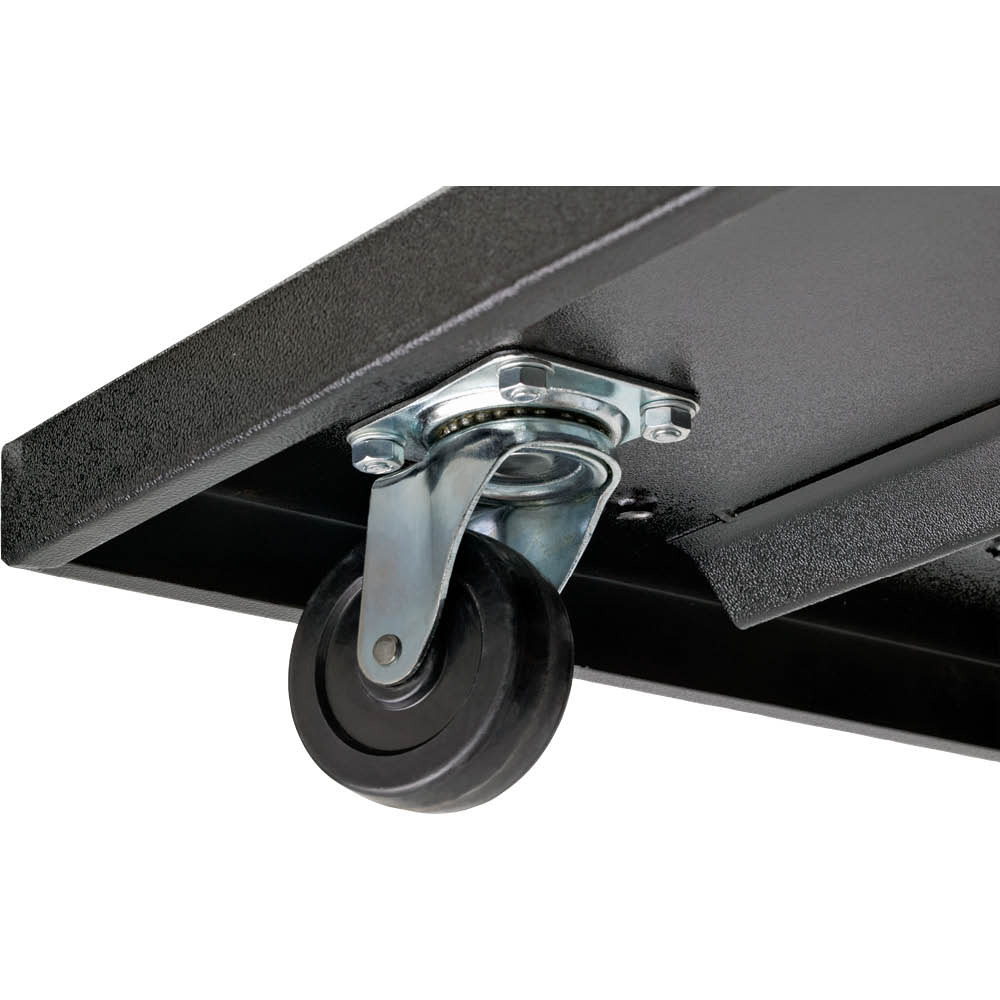

Portable base size: 21-1/2″ x 33-1/2″
Bag capacity: 5.4 cubic feet
Height (with bags inflated): 78″
Powder-coated finish
Air suction capacity: approx. 1280 CFM
Impeller: 12″ balanced steel, radial fin
6″ inlet has a removable “Y” fitting with two 4″ openings
Static pressure: 10.1″
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1685
Assembled Weight (lbs)
90
California Proposition 65 Warning Required
Yes
Country of Origin
China
Package Contents
Dust Collector, Upper Bag, Lower Bag, Inlet Y-Connector
Package Depth
22.5
Package Height
22.5
Package Weight
91
Package Weight (lbs)
91
